ChannelPlus Fast Ethernet Switch
The H636 10/100Base-T ethernet switch
for two to five computers. "Plug and play" installation is easy when using the
H628 data hub. The H636 is fully IEEE802.3 compliant and has activity LEDs

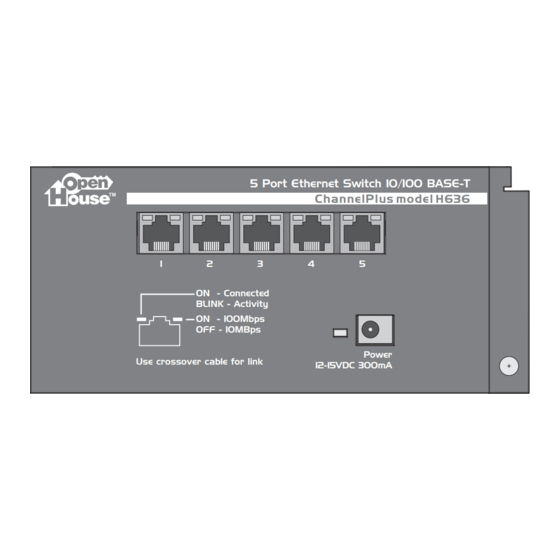

5 Port Ethernet Switch 10/100 BASE-T
TM ChannelPlus model H636
1 2 3 4 5
ON - Connected
BLINK - Activity
ON - 100Mbps
OFF - 10MBps
Power
Use crossover cable for link
12-15VDC 300mA
Ethernet switches
are superior to ordinary Ethernet hubs in that they
segment the data traffic. Computer A can talk to computer B while computers
C and D also talk. Collisions are eliminated. Throughput is greatly enhanced.
The H636
learns the addressing of your network with no programming.
The H636
will automatically detect 10 base-T or 100 base-T adaptors on a
port by port basis. The H636 will use the highest possible speed.

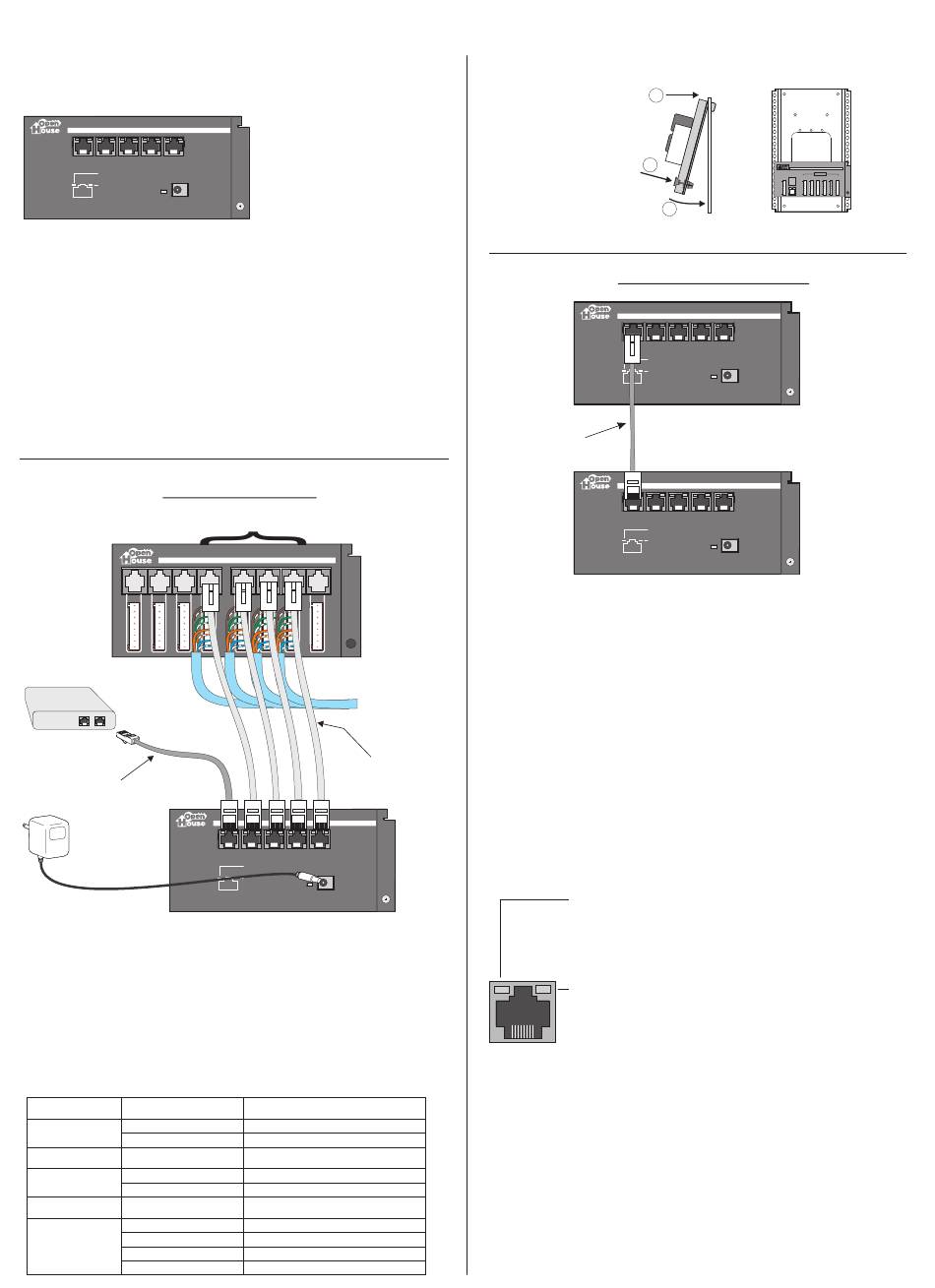

Typical Installation
Ethernet connections for 4 rooms
H628
Data Hub (8 cables, TIA-568A) Category 5 Compliant
To Internet
Ethernet Hub
Internet gateway
or firewall
Crossover cable
(typical)
H636
+5VDC
Ethernet hub
Wiring the H636 Hub
- Use only Category 5 unshielded twisted-pair cable.
- When connecting to an H628 or a network device directly, use
straight through RJ-45 cables.
- Each run to a network device should be less than 100 meters (328
feet).
Specifications: typical @ 25 C ± 5 C O
IEEE 802.3
Compliance
RJ-45 ports
Network Interface
RJ-45 uplink
CAT-5 (UTP)
Max cable length
each unit
LED Indicators
each port
operating temperature
Environmental
model number
Power supply
output current
output voltage
input power
creates a home network
for network status and speed.
T h e H 6 3 6 r e q u i r e s n o
programming and starts working
at power up with no user
intervention.
ChannelPlus model H628
To data jacks
in remote
wall plates
10 BASE-T (5 RJ-45 inputs, 1 uplink)
Straight-through cable
(H691 or H692)
5 Port Ethernet Switch 10/100 BASE-T
TM ChannelPlus model H636
1 2 3 4 5
ON - Connected
BLINK - Activity
ON - 100Mbps
OFF - 10MBps
Power
Use crossover cable for link
12-15VDC 300mA
H636
O
100Base-T
5
Use crossover cable
100 meters (328 feet)
Power
Link/Activity, Speed
0°C to 50°C
350-099
300mA maximum
15 VDC unregulated
105-125 VAC
OpenHouse tm modules attach from the top
1
1) Hook from the top
2) Swing into place
3) Push button to lock
3
Expanding the Network
TM
H636
1 2
Ethernet hub
ON - Connected
BLINK - Activity
ON - 100Mbps
OFF - 10MBps
Use crossover cable for link
Crossover cable
TM
H636
Ethernet hub
1 2
Uplink 5
ON - Connected
BLINK - Activity
ON - 100Mbps
OFF - 10MBps
Use crossover cable for link
Using more than one hub
- Use only Category 5 unshielded twisted-pair cable.
- The cable length between two hubs cannot exceed 100 meters
(328 feet).
- Additional hubs may be used as long as the path between any
two network devices does not exceed four hubs and five cables.
- All hubs used must be powered.
+5VDC
Crossover cable
-A crossover cable exchanges the In and Out connections on one
end. This will convert any standard port into a "link" port.
Connecting two H636s or connecting an H636 to most firewalls
will require using a crossover cable.
LED Indicators
ON - Connected ...
A working device is connected to this port.
BLINK - Activity ...
Data is being transmitted or received by this port.
ON - 100Mbps
OFF - 10Mbps
