AVANT 170 Operator's Manual

Backhoe
Hide thumbs Also See for 170:
Table of Contents

Advertisement

Quick Links

Download this manual
Operator's manual for Attachment
Operator's
Operator's
Operator's
Product number:
Please read this manual carefully before using the equipment, and follow all
instructions.
Keep this manual for later reference.
manual for Attachment
manual for Attachment
manual for Attachment

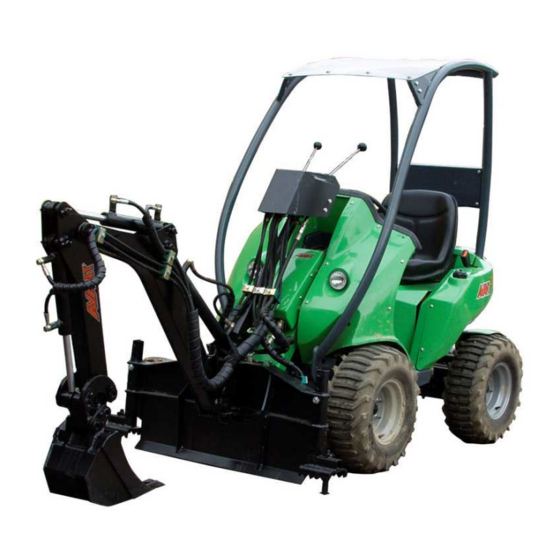

Backhoe 170
300-700-series loaders:
Backhoe 170 2012 1
A33748

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 170 and is the answer not in the manual?

Questions and answers

Related Manuals for AVANT 170

Summary of Contents for AVANT 170

  • Page 1 Backhoe 170 2012 1 Operator’s Operator’s manual for Attachment manual for Attachment Operator’s Operator’s manual for Attachment manual for Attachment Backhoe 170 Product number: 300-700-series loaders: A33748 Please read this manual carefully before using the equipment, and follow all instructions.

  • Page 2: Table Of Contents

    Backhoe 170 2012 1 CONTENTS Foreword ........................... 3 Designed purpose of use ......................3 Safety instructions for the backhoes................... 3 Backhoe specifications ......................4 Assembly of the backhoe......................6 5.1. Mounting the backhoe to the loader..................6 5.2. Connecting and disconnecting the hydraulic quick couplings..........7 5.3.

  • Page 3: Foreword

    3(16) 1. Foreword Avant Tecno Oy would like to thank you for your purchase of this AVANT attachment. It has been designed and manufactured on the basis of years of product development and experience. By familiarising yourself with this manual and following the instructions, you ascertain your safety and ensure the reliable operation and long service life of the equipment.

  • Page 4: Backhoe Specifications

    • The use of safety boots is recommended while working with the loader. • Wear protective gloves when handling hydraulic hoses. 4. Backhoe specifications Table 1 – Backhoe 170 technical data Product number A33748 Digging depth: 1 700 mm Loading height:...
  • Page 5 5(16) Main components of backhoe: 1. Frame 2. Lifting boom 3. Front boom 4. Outrigger tine 5. Adjustable outrigger 6. Supporting bracket (the top link) 7. Valve boom 8. Valve boom bracket 9. Service support Listed below are the markings and labels fastened to the backhoe, and they must be visible on the equipment.

  • Page 6: Assembly Of The Backhoe

    5. Assembly of the backhoe The backhoe 170 is ready for use as delivered. To mount the backhoe, in addition to the quick coupling and connecting the hydraulic fittings the supporting bracket (also called the top link) must also be mounted. To make the coupling of the backhoe 170 tight, on the front side of the backhoe frame there are also four screws for reducing the slack between the attachment and the loader quick coupling plate.

  • Page 7: Connecting And Disconnecting The Hydraulic Quick Couplings

    7(16) Do not use the automatic locking of the locking pin with the backhoe. The centre of gravity of the backhoe is at relatively high, which creates a risk of the backhoe tipping over. Before moving or lifting the attachment, ensure that the locking pin is in the lower position and comes through the fastener.

  • Page 8: The Valve Boom Of The Backhoe

    8(16) Never connect or disconnect quick couplings or other hydraulic components while the system is under pressure. High-pressure fluid ejection may cause injuries. Keep the hydraulic components as clean as possible; use the protective caps for the quick couplings on both the attachment and the loader.

  • Page 9: Instructions For Use

    9(16) Tilt the loader front plate so that it possible to remove the supporting bracket. After removing the bracket tilt the backhoe a little forward to a position in which it will stay stable on its own. Shut down the loader and lower the bucket onto ground.

  • Page 10: Using The Outriggers

    10(16) Do not use the backhoe without the supporting bracket. The purpose of the bracket is to lock the tilting and to make the backhoe more stable for more effective operation. On inclined terrains drive carefully. Do not operate the backhoe at horizontally tilted terrains.

  • Page 11: Adjusting The Speed Of The Backhoe Movements

    Changing the bucket The bucket of the backhoe 170 is mounted with two pivot pins. Change the bucket when the backhoe is mounted to the loader and use the service support described in section 7.1. Place the bucket near the ground.

  • Page 12: Maintenance And Servicing

    Finding any of these faults means that the hydraulic hose or component in question must be replaced. Spare parts are available from your nearest AVANT retailer or service point. Leave the service of hydraulic components to a trained professional if unsure how to safely perform the task.

  • Page 13: Lubricating The Equipment

    Only add the grease amount of a couple of grease press pushes at a time. 8. Warranty terms Avant Tecno Oy grants a warranty of one year (12 months) for the attachment from the date of purchase. The warranty covers repair costs as follows: •...
  • Page 14 SFS-EN ISO 12100-1, SFS-EN ISO 12100-2, SFS-EN 982, SFS-EN 474-4 Kuvaus: Avant-kuormainten kanssa käytettävä kaivuulaite Beskrivning: Grävaggregat; arbetsredskap för Avant lastare Description: Backhoe bucket; attachment for Avant loaders Beschreibung: Anbaubagger; Anbaugerät für Avant Radlader Mallit / Modeller / Models / Modellen: Avant Mallit / Märken / Models / Modellen:...
