PCB Piezotronics 394C06 Installation Manual

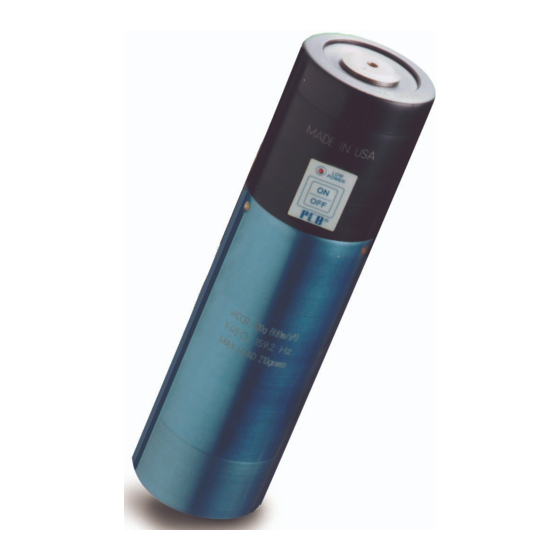

Platinum stock product handheld shaker, 1g at 159.2 hz (for up to 210 grams total weight of sensor, cable and mtg. accessories).
Hide thumbs Also See for 394C06:

Advertisement

Quick Links

Download this manual
Model 394C06
Platinum Stock Product Handheld shaker, 1g at 159.2 Hz (for up to 210 grams total weight of
sensor, cable and mtg. accessories).
Installation and Operating Manual
For assistance with the operation of this product,
contact the PCB Piezotronics, Inc.
Toll-free: 716-684-0001
24-hour SensorLine: 716-684-0001
Fax: 716-684-0987
E-mail: info@pcb.com
Web: www.pcb.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the 394C06 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PCB Piezotronics 394C06

Summary of Contents for PCB Piezotronics 394C06

  • Page 1 Platinum Stock Product Handheld shaker, 1g at 159.2 Hz (for up to 210 grams total weight of sensor, cable and mtg. accessories). Installation and Operating Manual For assistance with the operation of this product, contact the PCB Piezotronics, Inc. Toll-free: 716-684-0001 24-hour SensorLine: 716-684-0001 Fax: 716-684-0987 E-mail: info@pcb.com...
  • Page 2  Assistance is needed to safely operate equipment  PCB Piezotronics is an ISO-9001 certified company whose Damage is visible or suspected  calibration services are accredited by A2LA to ISO/IEC Equipment fails or malfunctions 17025, with full traceability to SI through N.I.S.T.
  • Page 3 CAUTION Refers to hazards that could damage the instrument. NOTE Indicates tips, recommendations and important information. The notes simplify processes and contain additional information on particular operating steps. The following symbols may be found on the equipment described in this manual: This symbol on the unit indicates that high voltage may be present.
  • Page 4 PCB工业监视和测量设备 - 中国RoHS2公布表 PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table 有害物质 镉 汞 铅 (Pb) 六价铬 (Cr(VI)) 多溴联苯 (PBB) 多溴二苯醚 (PBDE) 部件名称 (Hg) (Cd) 住房 PCB板 电气连接器 压电晶体 环氧 铁氟龙 电子 厚膜基板 电线 电缆 塑料 焊接...
  • Page 5 Component Name Hazardous Substances Lead (Pb) Mercury (Hg) Cadmium (Cd) Chromium VI Polybrominated Polybrominated Compounds Biphenyls (PBB) Diphenyl Ethers (Cr(VI)) (PBDE) Housing PCB Board Electrical Connectors Piezoelectric Crystals Epoxy Teflon Electronics Thick Film Substrate Wires Cables Plastic Solder Copper Alloy/Brass This table is prepared in accordance with the provisions of SJ/T 11364.
  • Page 6 Model 394C06 Handheld Vibration Shaker Operating Guide with Enclosed Warranty Information 3425 Walden Avenue, Depew, New York 14043-2495 Phone (716) 684-0003 Fax (716) 684-3823 Toll Free Line 1-800-828-8840 MANUAL NUMBER: 18295 MANUAL REVISION: B ECO 51616...

  • Page 7: Table Of Contents

    Table of Contents Introduction ........................page 3 Description ........................page 3 Operation .......................... page 4 Warnings & Cautions ......................page 6 Warranty ........................... page 7 Service ..........................page 7 Return Procedure ......................page 7 Total Customer Satisfaction ..................... page 8 MANUAL NUMBER: 18295 MANUAL REVISION: B PAGE 2...

  • Page 8: Introduction

    Introduction Model 394C06 Handheld Shaker is a small, handy, completely self-contained vibration reference source. It is intended for rapid checking of vibration measurement, monitoring and recording systems using piezoelectric accelerometers, as well as other types of vibration transducers having a maximum weight of 210 grams.

  • Page 9: Operation

    On/Off button a second time. The 394C06 shaker is powered by four (4) “AA” batteries in a removable pack / module (model number 073A15). Battery replacement is simple, rotating the lower section of the shaker counter clockwise will expose the battery pack.
  • Page 10 This light glows when the available power is marginally adequate to drive the shaker (with the mass on the shaker). This indicator does not signify erroneous data. If model 394C06 cannot obtain 1 g at 159.2 Hz, then the unit shuts off. The low power indicator signifies an imminent inability to drive the mass on the shaker because the test sensor is too heavy, the batteries are low on power, or the external power supply is inadequate.

  • Page 11: Warnings & Cautions

    This equipment is designed with user safety in mind. However, the protection provided by the equipment may be impaired if the equipment if used in a manner not specified by PCB Piezotronics, Inc. Caution 1 – ESD Sensitivity for Cables Cables can kill your equipment.

  • Page 12: Warranty

    Service Aside from battery replacement, no maintenance is required for this unit. The 394C06 contains no field serviceable parts and is not designed for field repair. Field repair is typically NOT recommended and may void any warranty. If factory service is required, return the instrumentation according to the “Return Procedure” stated below.

  • Page 13: Total Customer Satisfaction

    Total Customer Satisfaction PCB, a division of PCB Piezotronics, guarantees Total Customer Satisfaction. If, at any time, for any reason, you are not completely satisfied with any PCB product, PCB will repair, replace, or exchange it at no charge. You may also choose, within the warranty period, to have your purchase price refunded.
  • Page 14 Physical OPTIONAL ACCESSORIES: Size (Diameter x Height) 2.2 in x 7.8 in 56 mm x 200 mm Model 073A16 DC switching power supply (for Model 394C06) (1) Weight(with batteries) 31 oz 900 gm Model 080A150 Mounting Base (1/4-28) (1) [10][11]...
  • Page 15 PCB Piezotronics Inc. claims proprietary rights in REVISIONS the information disclosed hereon. Neither it nor any reproduction thereof will be disclosed to others DESCRIPTION without the written consent of PCB Piezotronics Inc. STANDARD STUD MOUNT UPDATE DRAWING 25686 "A" "B"...
