Oypla Leisure 3599 User Manual

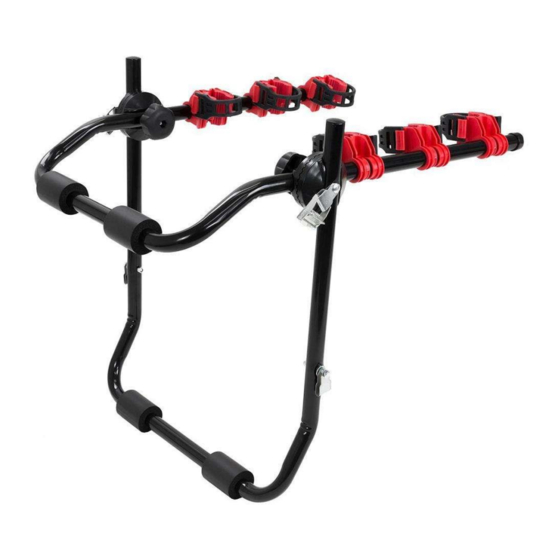

Universal 3 bike hatchback mount rack

User Manual

Universal 3 Bike

Hatchback Mount Rack

USER MANUAL Model No: 3599

Table of Contents

Need help?

Do you have a question about the 3599 and is the answer not in the manual?

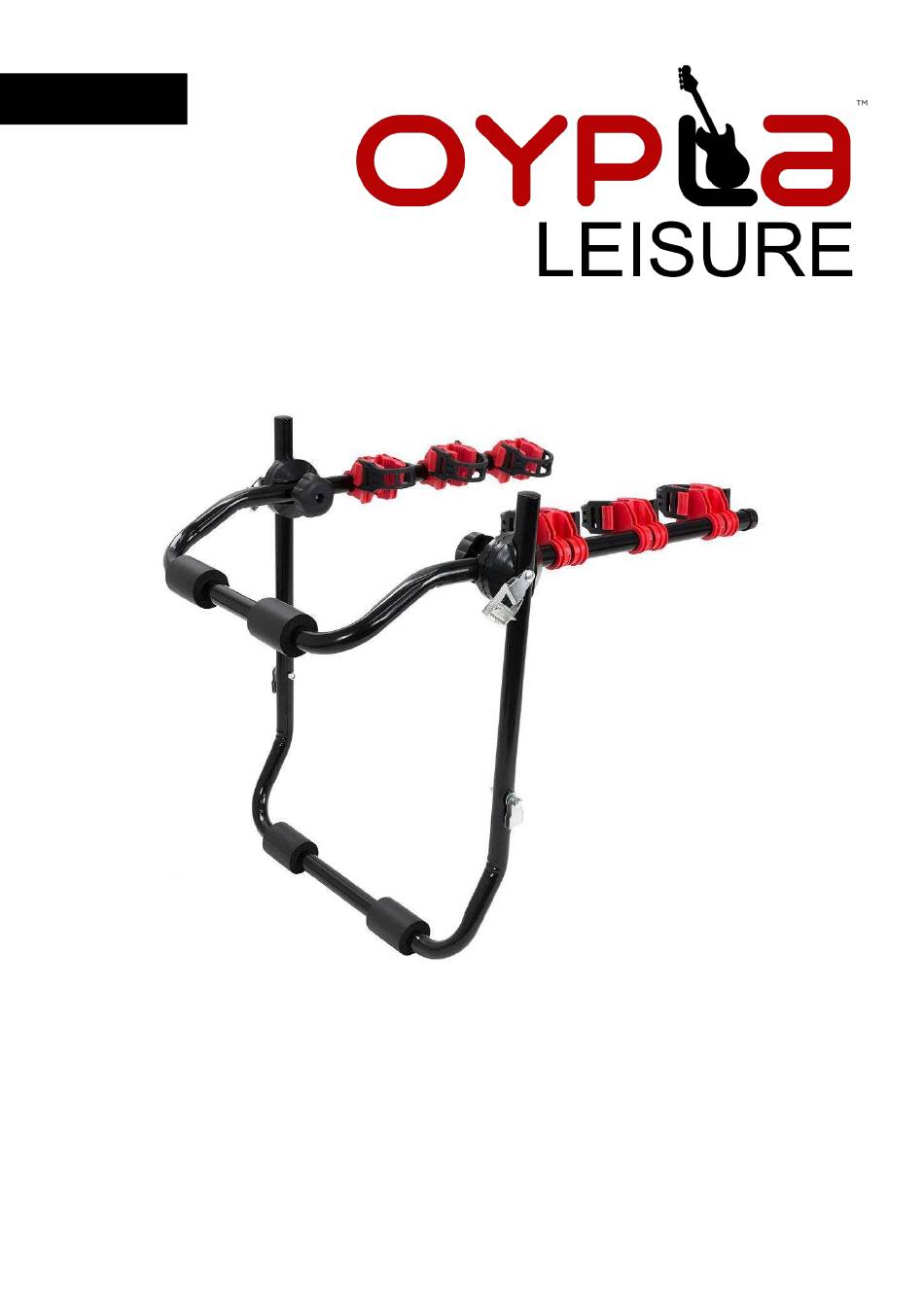

Page 1 User Manual Universal 3 Bike Hatchback Mount Rack USER MANUAL Model No: 3599...
Page 2 Avoid damage caused by hot exhaust fumes. Do not position bicycles directly next to the vehicles exhaust, especially the bicycles tyres. If necessary, fit an exhaust deflector.  If this product is damaged or has any defects, please contact cservice@oypla.com. USER MANUAL Model No: 3599 USER MANUAL Model No: 3599...
Page 3 If you are missing any of the below parts please contact cservice@oypla.com Please be aware that you will be referring to this parts list throughout the assembly process. PART: Quantity: Cable Holders Bike Carrier Bike Secure Strap Bike Carrier Straps USER MANUAL Model No: 3599 USER MANUAL Model No: 3599...
Page 4 Now open the bike carrier (part 2) up and make sure you have opened it up 110 degrees as shown in the image above. To secure into place please push the leavers back down marked as A in the image below. 110 Degrees USER MANUAL Model No: 3599...
Page 5 To ensure that your completed bike rack doesn’t become a distraction, remember to hide the excess straps by folding them through the cable holders (part 1). USER MANUAL Model No: 3599 USER MANUAL Model No: 3599 USER MANUAL Model No: 3599...
Page 6 Be sure to consult your car’s manufacturer in regards to how much exterior weight your car’s boot can hold. Please retain a copy of all instructions for future consultation. Imported into the EU by Oypla.com LLP, Uxbridge, UB8 2FX USER MANUAL Model No: 3599...
