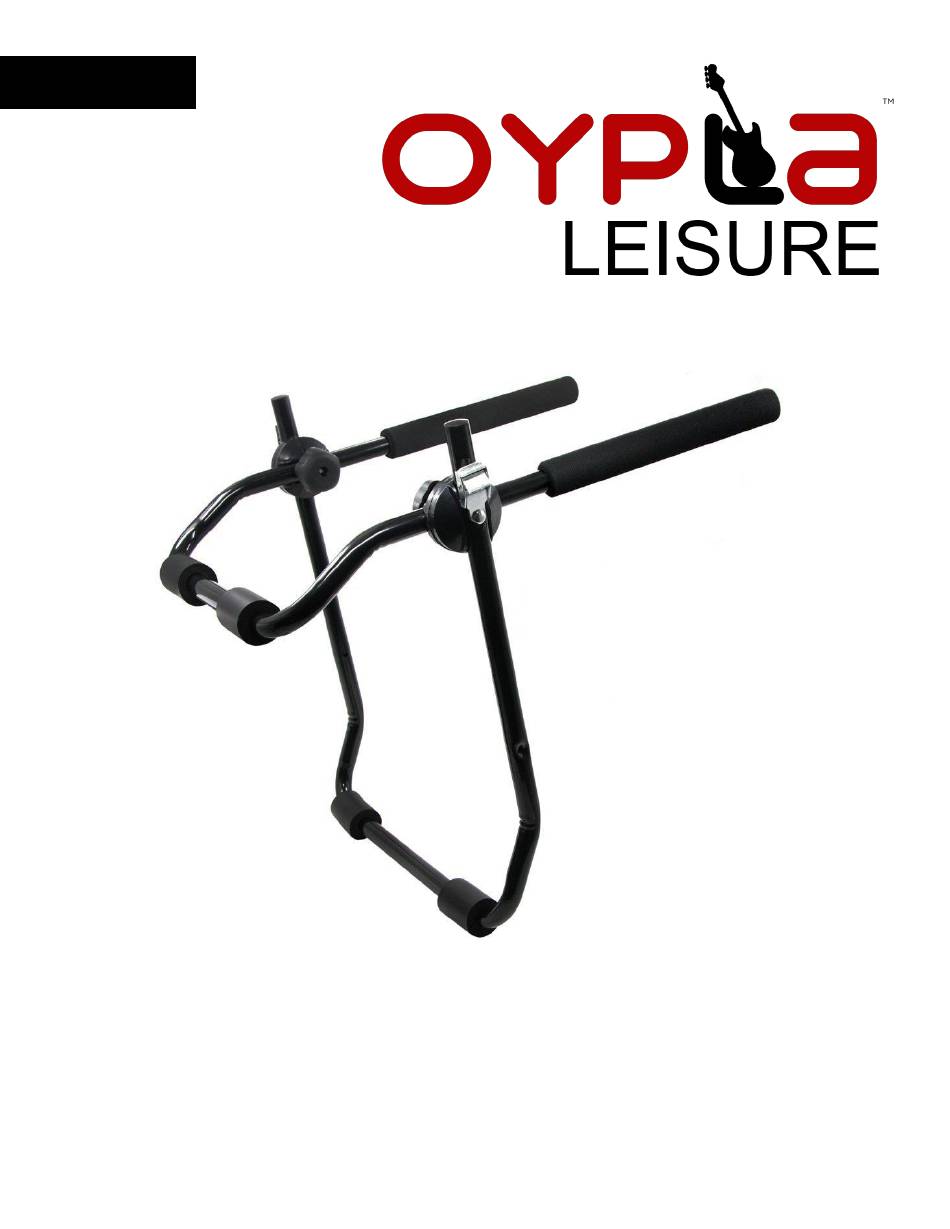

- Page 1 User Manual 2 Bike Carrier USER MANUAL Model No: 3774...
-
Page 2: Safety Instructions
• If the load obscures the vehicle, registration plate or lights, fit an auxiliary number plate and/or lighting system. • Avoid damage caused by hot exhaust fumes. DO NOT position bicycles directly next to the vehicle’s exhaust, especially the bicycle tyres. If necessary, fit an exhaust deflector. USER MANUAL Model No: 3774... - Page 3 WARNING! This carrier is designed for temporary use only; remove when not in use or before going through a car wash. WARNING! - Remember the driver of the vehicle is responsible for the security and safety of the load carried. USER MANUAL Model No: 3774...
-
Page 4: Assembly Instructions
Using two M10 spanners compress the assembly until the open ends of the fixing anchor are pressed together as shown in fig. 1 USER MANUAL Model No: 3774... - Page 5 To avoid damage do not position them directly next to the vehicle’s exhaust, especially the bicycle tyres. Ensure that the bicycles, especially the pedals, do not come into contact with the vehicle’s bodywork. When you have secured the bicycles on the carrier, check and re-tighten all the straps. USER MANUAL Model No: 3774...
- Page 6 See fig.8(S). 4. Adjust all straps to finally position carrier ensuring that the protection pads are firmly in contact with the vehicle bodywork. 5. Re-check all straps and fully tighten. USER MANUAL Model No: 3774...
- Page 7 If your lights or number plate are obscured, you must fit an auxiliary number plate and/or lighting system. Please retain a copy of all instructions for future consultation. USER MANUAL Model No: 3774...
