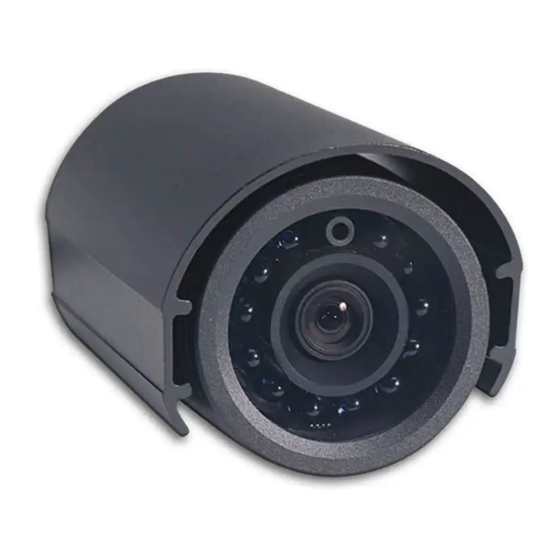

American Dynamics ADC722WP Operating Instructions

Color cctv camera

Hide thumbs Also See for ADC722WP:

Download this manual

1. Please use a regulated 12VDC power adaptor to operate this unit. The power tolerance of this unit is

12VDC

10% (10.8VDC~13.2VDC); a power input of more than 13.2VDC will damage this unit.

2. The video output (BNC connector) of this unit should only be connected to a non-powered device.

Please check the wiring of the video output before applying power to this unit. If the power is applied

through the video output cable, the unit will be damaged.

Note:

All ADC520/ADC720 Series cameras ship with a 120VAC to 12VDC UL listed power supply with a

6-foot (1.8m) cord. 12VDC cameras will not line-lock and are not recommended for use in a matrix

switcher environment.

Thank you for choosing this high quality camera, before attempting to connect or operate this product, please

read these instructions completely and carefully.

8200-0206-08 Rev. A

ADC722WP

COLOR CCTV CAMERA

OPERATING INSTRUCTIONS

CAUTION

Do you have a question about the ADC722WP and is the answer not in the manual?

Page 1: Operating Instructions
6-foot (1.8m) cord. 12VDC cameras will not line-lock and are not recommended for use in a matrix switcher environment. Thank you for choosing this high quality camera, before attempting to connect or operate this product, please read these instructions completely and carefully. 8200-0206-08 Rev. A ADC722WP OPERATING INSTRUCTIONS CAUTION...
Page 2 Specifications Pick-up Element Number of Pixels Resolution Minimum Illumination S/N Ratio Electronic Shutter Gamma Correction White Balance Standard Board Lens Lens Angle (Diagonal) Video Output Power Source Current Consumption Water Resistance IR LED Effective Range Operating Temperature Dimensions (mm) Weight Use only a regulated 12VDC power adaptor to operate this unit.
Page 3 Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. American Dynamics Tyco Safety Products 6600 Congress Ave.
