Sven HDMI-DVI User Manual

HDMI-DVI
HDMI-DVI Cable
USER'S MANUAL
Congratulations on the purchase of TM SVEN cable!

COPYRIGHT

© 2014. SVEN PTE. LTD. Version 1.0 (V 1.0).
This Manual and information contained in it are copyrighted. All rights reserved.

TRADEMARKS

All trademarks are the property of their legal holders.

NOTICE OF RESPONSIBILITY RESTRICTION

Despite the exerted efforts to make this Manual more exact, some discrepancies
may occur. The information in this Manual is given on «as is» terms. The author and
the publisher do not bear any liability to a person or an organization for loss or
damage, which has arisen from the information contained in this Manual.

PURPOSE

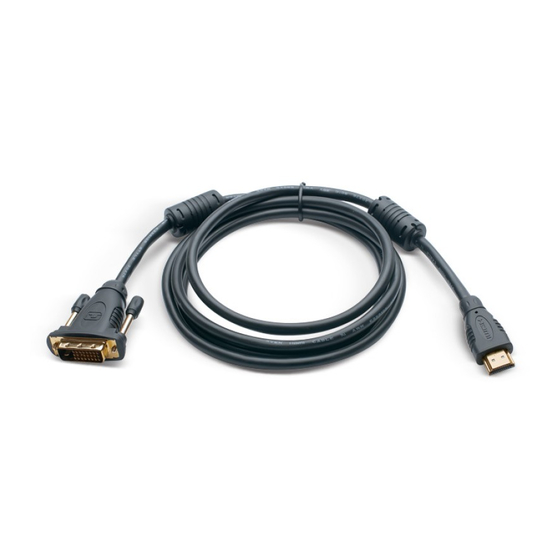

SVEN HDMI-DVI cable is designed for connection of a signal source to a TV set or
other devices equipped with HDMI and DVI ports.

FEATURES

• HDMI 1.3b – DVI compliant
• High-purity oxygen-free copper not distorting the signal used as a conductor
• Gold-plated coating of contacts and connectors guarantees the signal quality
over the whole service life
• Triple shielding protects against interferences

SAFETY PRECAUTIONS

• Do not use the cable with damaged insulation.
• Do not use in places with possible ingress of liquid, moisture, dust and high
temperature exposure.
• The product is beyond repair in case of the cable damage or its connectors.

TECHNICAL SPECIFICATIONS

Type
BitRate, Gbps
Wire gauge
Jacks
Wire material
Cable length, m
Note. Technical specifications given in this table are supplemental infor-
mation and cannot give occasion to claims. ТМ SVEN production is
improved constantly, therefore Technical Specifications are subject to
change without prior notice.
HDMI (male 19 pin) – DVI
up to 10.2
30 AWG (circular)
gold-plated
oxygen-free
high-purity copper
1.8; 3
Warranty Period: 12 months
Service Life: 2 years
