Sven Base HDMI High Speed User Manual

BASE HDMI
HIGH SPEED

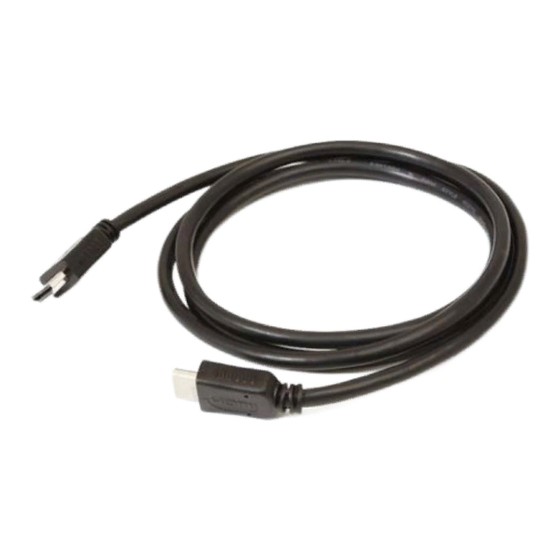

Base HDMI High Speed Cable
USER'S MANUAL
Congratulations on the purchase of TM SVEN cable!

COPYRIGHT

© 2014. SVEN PTE. LTD. Version 1.0 (V 1.0).
This Manual and information contained in it are copyrighted. All rights reserved.

TRADEMARKS

All trademarks are the property of their legal holders.

NOTICE OF RESPONSIBILITY RESTRICTION

Despite the exerted efforts to make this Manual more exact, some discrepancies
may occur. The information in this Manual is given on "as is" terms. The author and
the publisher do not bear any liability to a person or an organization for loss or
damage, which has arisen from the information contained in this Manual.

PURPOSE

The cables are designed for connecting DVD players with HDMI jack, Bluray
players, satellite receivers, HD media players, multifunction and gaming consoles
and computers to modern LCD and plasma panels, HDTV sets and HD ready TV
sets.

FEATURES

• High speed HDMI compliant
• Color depth: 48 bit
• Color space: xvYCC
• Automatic video/audio synchronization
• High-purity oxygen-free copper used as a conductor
• Triple shielding protects against interferences

SAFETY PRECAUTIONS

• Do not use the cable with damaged insulation.
• Do not use in places with possible ingress of liquid, moisture, dust and high tempe-
rature exposure.
• The product is beyond repair in case of the cable damage or its connectors.

TECHNICAL SPECIFICATIONS

Type
BitRate, Gbps
Wire gauge
Jacks
Wire material
Cable length, m
Note. Technical specifications given in this table are supplemental infor-
mation and cannot give occasion to claims. ТМ SVEN production is
improved constantly, therefore Technical Specifications are subject to
change without prior notice.
HDMI (male 19 pin) –
HDMI (male 19 pin)
up to 10.2
30 AWG (circular)
nickel plated
copper alloy
0.75; 1.5; 2.5
Warranty period: 12 months
Service life: 2 years
