Mottura XMODE Installation Instructions Manual

Powered electronic lock
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
POWERED ELECTRONIC LOCK
INSTALLATION INSTRUCTIONS
RECHARGEABLE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XMODE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mottura XMODE

Summary of Contents for Mottura XMODE

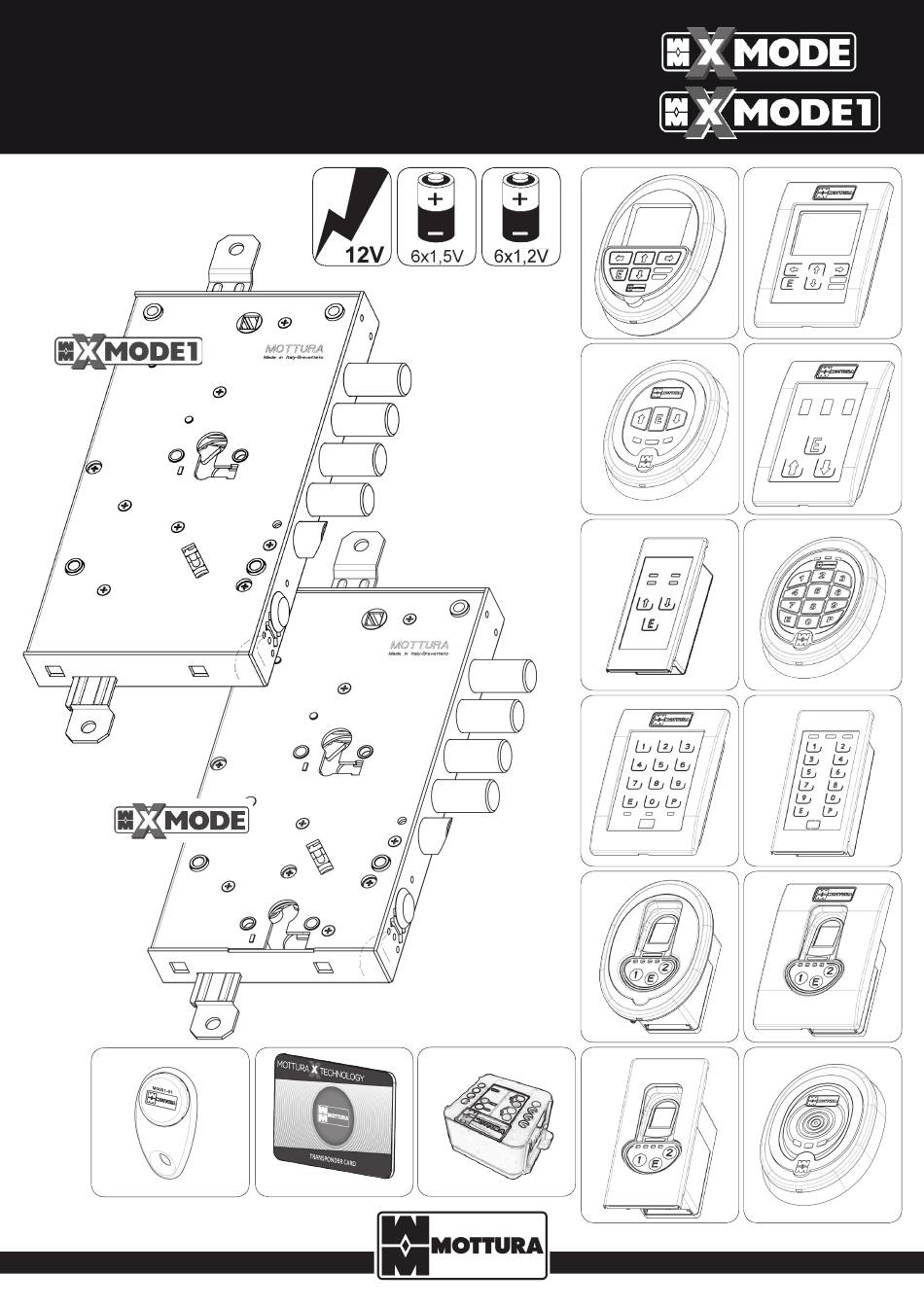

  • Page 1 POWERED ELECTRONIC LOCK INSTALLATION INSTRUCTIONS RECHARGEABLE...

  • Page 2: Table Of Contents

    6 - ELECTRICAL WIRING ....................14 7 - AC/DC ADAPTER CONNECTION ................7.1 - MECHANICAL FIXING 7.2 - ELECTRICAL CONNECTION 7.3 - TECHNICAL DATA 2X - 99066D/S 1X - 99698 1X - 99699 99348ENG - XMODE / XMODE1 - MANUALE INSTALLATORE - REV. 01...

  • Page 3: General Instructions

    1.1 - WARRANTY TERMS This product has been inspected by Mottura Serrature di Sicurezza S.p.A. and is guaranteed to be free of all manufacturing defects for the time specified by current Italian law, starting on the date of purchase indicated on the sales receipt.

  • Page 4: Installation

    (bars/switchlocks) or on the key when turning. These problems could impair correct electronic operation of the lock and cause permanent malfunction. Mottura Serrature di Sicurezza S.p.A. declines all liability if this procedure is not performed and, in such case, all warranties on the product will lapse.

  • Page 5: Drilling Diagram And Dimensions

    A = SIDE ATTACHEMENTS B = BUSHINGS C = MORTISE-TYPE Variation in bolt centre distances SENSOR Fig.2 2.1 - DRILLING DIAGRAM (CHANGEABLE POSITIONS) AND DIMENSIONS Variation in bolt centre DOOR distances STATUS DOOR SENSOR STATUS SENSOR BATTERY HOLDER DOUBLE TUBE VERSION BATTERY HOLDER CASSETTE...

  • Page 6: Cylinder Fixing

    32x8 mm slot. N°2 Ø2 N°2 Ø2 (ART. 99.685) KEYBOARD VERSION DISPLAY VERSION (ART. 99.688) Ø40* Ø40* N°2 Ø2 N°2 Ø2 TRANSPONDER VERSION KEYBOARD + TRANSPONDER (ART. 99.687) VERSION (ART. 99.686) 99348ENG - XMODE / XMODE1 - MANUALE INSTALLATORE - REV. 01...
  • Page 7 KEYBOARD + TRANSPONDER KEYBOARD VERSION (ART. 99.741) VERSION (ART. 99.736) DISPLAY VERSION (ART. 99.742) (ART. 99.760) KEYBOARD VERSION KEYBOARD + TRANSPONDER FINGERPRINT SCANNER + TRAN- VERSION (ART. 99.749) SPONDER VERSION (ART. 99.748)

  • Page 8: Types Of Escutcheons

    KEYBOARD + TRANSPONDER FINGERPRINT SCANNER + TRAN- FINGERPRINT SCANNER + TRAN- all directions. VERSION (ART. 99.736) SPONDER VERSION (ART. 99.729) SPONDER VERSION (ART. 99.748) 99348ENG - XMODE / XMODE1 - MANUALE INSTALLATORE - REV. 01...

  • Page 9: Connecting Remote Control Devices

    RELAY TRANSFORMER 4.2 - EXTERNAL PERIPHERAL MOTTURA REMOTE CONTROL (99.684) You can remotely operate and control the lock with the “REMOTE CONTROL” device (code 99.684 – available on request), to be connected to the lock by means of cable 99.702 (not supplied). Thanks to this device (which transmits an encrypted signal to the lock), any attempt to short-circuit the connection cable will have no effect.

  • Page 10: Connecting The Power Supply

    NOTE : If you use the battery charger (art. 99 711), please note that the cables have been designed to be mounted inside the door. Refer to the installation instructions provided with the article. 99348ENG - XMODE / XMODE1 - MANUALE INSTALLATORE - REV. 01...
  • Page 11 BATTERY PACK WIRING 99.703 Wired tube battery pack battery pack wire 99.704 Wired cassette battery pack Fig. A WIRING MAINS POWERED 99.683 AC/DC Adapter (see chapter 7) 230Vca 12Vcc Grommet 99.144 cable 99.697 Fig. B...
  • Page 12 + BATTERIES 99.703 Wired tube battery pack battery pack wire 99.704 Wired cassette battery pack 99.683 AC/DC Adapter (see chapter 7) cable 99.697 230Vca 12Vcc Grommet 99.144 Fig. C 99348ENG - XMODE / XMODE1 - MANUALE INSTALLATORE - REV. 01...
  • Page 13 WIRING MAINS POWERED + RECHARGEABLE BATTERIES 99.703 Wired tube battery pack battery pack wire 99.704 Wired cassette battery pack cable 99.712 99.711 Battery charger cable 99.697 99.683 AC/DC Adapter (see chapter 7) 230Vca 12Vcc Grommet 99.144 Fig. D...

  • Page 14: Electrical Wiring

    Grommet double In the MAINS POWERED configuration, AC/DC Adapter 99.683 must be installed tube outside the door. version N.B. Make all connections with power switched off and batteries disconnected. 99348ENG - XMODE / XMODE1 - MANUALE INSTALLATORE - REV. 01...

  • Page 15: Ac/Dc Adapter Connection

    OUTPUT: Connect the lock power supply cable (code 99.697) to the 12 VDC output terminals, taking care to respect polarity (red to positive (+), black to negative (-)) to prevent permanent damage to the system. Double output terminals are provided ONLY to power any other Mottura devices. Using these terminals for any other purpose may permanently damage the system.

  • Page 16: Technical Data

    Unlawful disposal of the product by the user may result in the application of penalties pursuant to current laws and regulations on the matter. We remind that batteries and power adapters, if present, must be removed before the device is disposed. Batteries and adapters must be collected and separately disposed. www.mottura.it SAFEGUARDING YOUR SECURITY...
