Summary of Contents for Vido WD060111013U

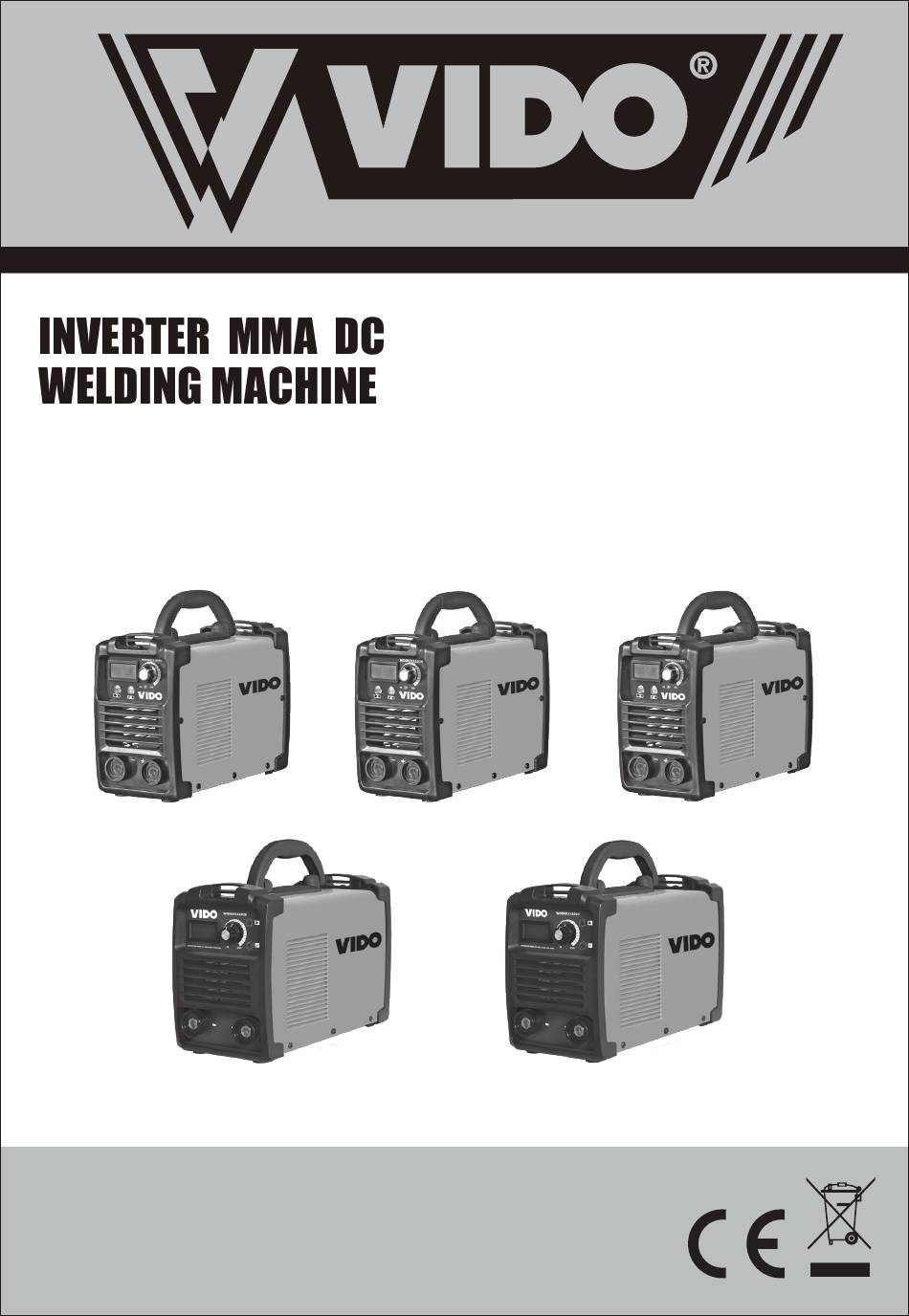

- Page 1 WD060111013U WD060111016 WD060111018 WD060111020 WD060111025 130A/160A/180A/200A/250A...
- Page 2 WD060111013U/WD060111016/WD060111018/WD060111020/WD060111025 Thank you for purchasing a VIDO product. We are confident that you will appreciate the quality of the product and you will be entirely satisfied with your purchase. Please read carefully the user safety and operating instruction on how to operate this product correctly within safety...
- Page 3 WD060111013U/WD060111016/WD060111018/WD060111020/WD060111025...
- Page 4 WD060111013U/WD060111016/WD060111018/WD060111020/WD060111025...
-
Page 5: Component List
130A/160A/180A/200A/250A INVERTER MMA DC WELDING MACHINE COMPONENT LIST 1) “-” output terminal 2) Current meter 3) Handle 4) Power indicator light 5) Welding current selector 6) Protection indicator light 7) “+” output terminal 8) Power switch 9) Electrode holder with cable 10) Ground clamp with cable NORMAL ACCESSORIES 1) Electrode holder with cable:... - Page 6 130A/160A/180A/200A/250A INVERTER MMA DC WELDING MACHINE WELDING MACHINE SAFETY WARNINGS Warning: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. Electric shock can kill.
- Page 7 130A/160A/180A/200A/250A INVERTER MMA DC WELDING MACHINE ● Use a lens and safety glasses. For welders under 160 A output,use a shade 10 lens; for above 160 A, use a shade 12 lens. ● Cover all bare skin areas exposed to the arc with protective clothing and shoes. Flame- retardant cloth or leather shirts, coats, pants or coveralls are available for protection.
-
Page 8: Grounding Instructions
130A/160A/180A/200A/250A INVERTER MMA DC WELDING MACHINE ● Do not wrap cable around your body while welding. Noise can damage hearing. Noise from some processes or equipment can damage hearing. ● Wear approved ear protection if noise level is high. Extension cables Using extension cables is not recommended. - Page 9 130A/160A/180A/200A/250A INVERTER MMA DC WELDING MACHINE SYMBOLS To reduce the risk of injury, user must read instruction manual Warning Electrical shock risk Breathing risk Wear protective mask Fire or explosion risk Burns risk Wear eye protection Wear ear protection Direct correction (DC) Single phase static frequency converter-transformer-rectifier Waste electrical products should not be disposed of with household waste.
-
Page 10: Technical Data
130A/160A/180A/200A/250A INVERTER MMA DC WELDING MACHINE TECHNICAL DATA Model WD060111013U WD060111016 WD060111018 Input v oltage 110-120V AC 220-240V AC 220-240V AC Frequency 50/60Hz 50/60Hz 50/60Hz Input capacity 5.5KVA 6.16KVA 7.26KVA No-load voltage 85V DC 85V DC 85V DC Output range... - Page 11 130A/160A/180A/200A/250A INVERTER MMA DC WELDING MACHINE OPERATING INSTRUCTIONS Note: Before using the welding machine, read the instruction manual carefully. 1. Intended use This welding machine is made with advanced inverter technology. It is intended for welding steel, stainless steel and cast iron. 2.
- Page 12 130A/160A/180A/200A/250A INVERTER MMA DC WELDING MACHINE 5. Operating the welding machine 1) Connect welding machine to power source This welding machine must be grounded while in use to protect the operator from electrical shock. Make sure the power switch is off then connect your welding machine’s power cable to a properly grounded 110V-120V or 0V-240 V,50Hz or 60Hz, single phase.
- Page 13 130A/160A/180A/200A/250A INVERTER MMA DC WELDING MACHINE weld is to be laid (See Fig 6). 6) Types of weld bead The following paragraphs discuss the most commonly used arc welding beads. a) The stringer bead formed by traveling with the electrode in a straight line while keeping the electrode centered over the weld joint (See Fig 7).
-
Page 14: Maintenance
130A/160A/180A/200A/250A INVERTER MMA DC WELDING MACHINE switch, leave the fan work to lower the temperature. Generally, it will recover within 4 or 5 minutes at C environment temperature. 11) Under Voltage Protection As the grid voltage decreases under 95V or 180V, the welding machine will not work normally, the amber protection indicator light is lit, and the main circuit is cut off. -
Page 15: Troubleshooting
130A/160A/180A/200A/250A INVERTER MMA DC WELDING MACHINE TROUBLESHOOTING Problem Possible Cause Solution Unit does not power up Unit is not plugged in Plug in socket Input power circuit breaker not Reset input power circuit breaker The main power switch is not Replace main power switch working Can not create an arc... - Page 16 130A/160A/180A/200A/250A INVERTER MMA DC WELDING MACHINE EXPLOSIVE VIEW OF WD06011013U PART LIST OF WD06011013U DESCRIPTION Q’TY DESCRIPTION Q’TY Housing Fast recovery diode Belt Radiator Cable and plug C ontrol PCB C urrent -carrying plate Rear cover C urrent -carrying plate Power switch Base plate S upport bar of IGBT radiator...
- Page 17 130A/160A/180A/200A/250A INVERTER MMA DC WELDING MACHINE EXPLOSIVE VIEW OF WD06011016 PART LIST OF WD06011016 DESCRIPTION Q’TY DESCRIPTION Q’TY Housing C ontrol PCB Handle Main PCB C able and plug Insulation paper plate Power switch C urrent -carrying plate Rear cover Base plate Quick connector R adiator...
- Page 18 130A/160A/180A/200A/250A INVERTER MMA DC WELDING MACHINE EXPLOSIVE VIEW OF WD06011018 PART LIST OF WD06011018 DESCRIPTION Q’TY DESCRIPTION Q’TY Handle Housing Output inductance Current-carrying plate Transformer Current selector knob Bridge rectifiers Shade of LED Radiator Digital display instrument IGBT single tube Front cover Radiator Base plate...
- Page 19 130A/160A/180A/200A/250A INVERTER MMA DC WELDING MACHINE EXPLOSIVE VIEW OF WD06011020 PART LIST OF WD06011020 DESCRIPTION Q’TY DESCRIPTION Q’TY Base plate Output inductance Support bar Front cover Insulation paper plate Washer Support bar of IGBT radiator Radiator Shade of LED Power switch Current selector knob IGBT single tube Current-carrying plate...
- Page 20 130A/160A/180A/200A/250A INVERTER MMA DC WELDING MACHINE EXPLOSIVE VIEW OF WD06011025 PART LIST OF WD06011025 DESCRIPTION Q’TY DESCRIPTION Q’TY Handle Housing Output inductance C urrent -carrying plate Transformer C urrent selector knob Bridge rectifiers S hade of LED R adiator Digital display instrument IGBT single tube Front cover R adiator...
- Page 21 WD060111013U/WD060111016/WD060111018/WD060111020/WD060111025...
- Page 22 WD060111013U/WD060111016/WD060111018/WD060111020/WD060111025...
- Page 23 WD060111013U/WD060111016/WD060111018/WD060111020/WD060111025...
- Page 24 MADE IN CHINA Copyright @ WIDO Machinery Co., Ltd. All rights reserved. www.widopt.com...
