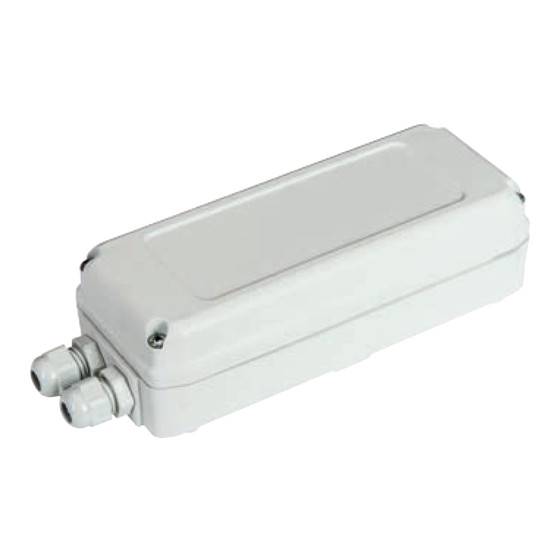

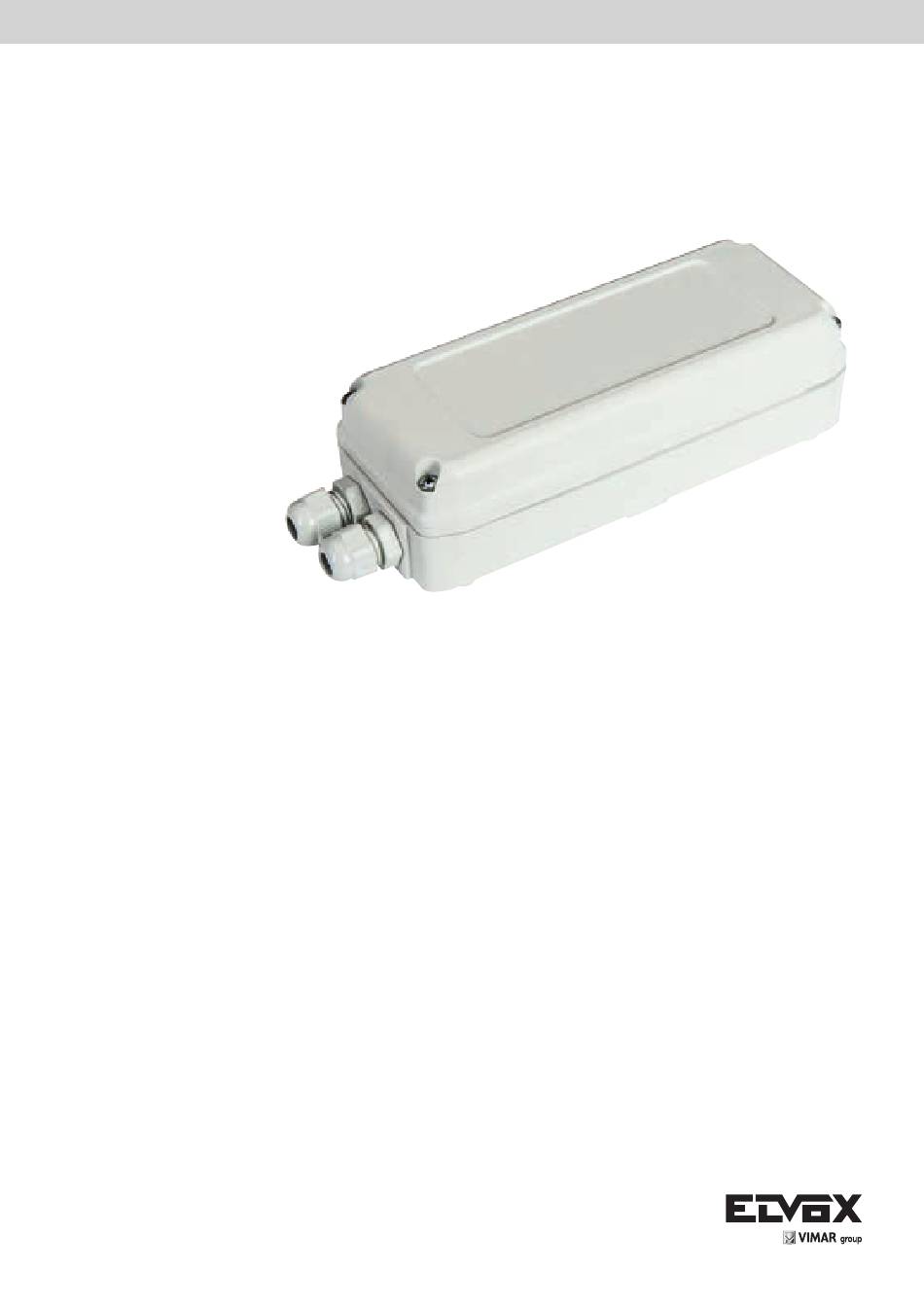

- Page 1 Installer manual ECRU.1 2-channel receiver 12/24 V 433 Mhz...
-
Page 2: Table Of Contents
ECRU.1 Contents: ................................Page Product features ..............................1 Power supply ..............................1 Connecting the aerial............................1 Output configuration and activation time programming ..................2 Output configuration deletion..........................3 Saving the remote controls ..........................3 Saving remote controls via radio ........................4 Deleting a single remote control .........................4 Deleting all the remote controls ..........................5 LED signals in normal operation.........................5 WARNINGS FOR THE INSTALLER Carefully read all instructions and warnings in this document as they provide important information regarding... -
Page 3: Product Features
Aerial input impedance 50 Ω Sensitivity -100 dBm Protection rating IP44 Dimensions 156x62x46 mm Operating temperature -20 to +60°C BUZ1 - ANT ECRU.1 2 - Power supply: BUZ1 12/24 Vdc 12/24 Vac 3 - Connecting the aerial: - ANT ECRU.1 VIMAR group... -
Page 4: Output Configuration And Activation Time Programming
ECRU.1 4 - Output configuration and activation time programming: The outputs can be configured independently as: - impulsive - two-position stable - timed Output configuration Description Impulsive (default setting) The selected output is activated only while the control button is pressed. The relay closing time is equal to 0.5 s. -
Page 5: Output Configuration Deletion
DL2 => output 2 Press the push button of the remote control LEDs DL1, DL2 come on steady you want to save for 1 s to confirm the saving. Repeat the procedure to save other remote control buttons VIMAR group... -
Page 6: Saving Remote Controls Via Radio
ECRU.1 7 - Saving remote controls via radio: The saving via radio function is used to save remote controls not in the memory without directly using the receiver programming buttons, but using only the first remote control saved or another remote control already in the memory. This function is available only for rolling-code remote controls. -
Page 7: Deleting All The Remote Controls
1 flash in sequence DL2-DL1 Reception of a radio signal from a valid remote DL1-2 control not in the memory Several flashes while held down Reception of a radio signal from an invalid DL1-3 No signalling remote control VIMAR group... - Page 8 Viale Vicenza 14 36063 Marostica VI - Italy www.vimar.com ECRU.1 installer EN 00 1705...
