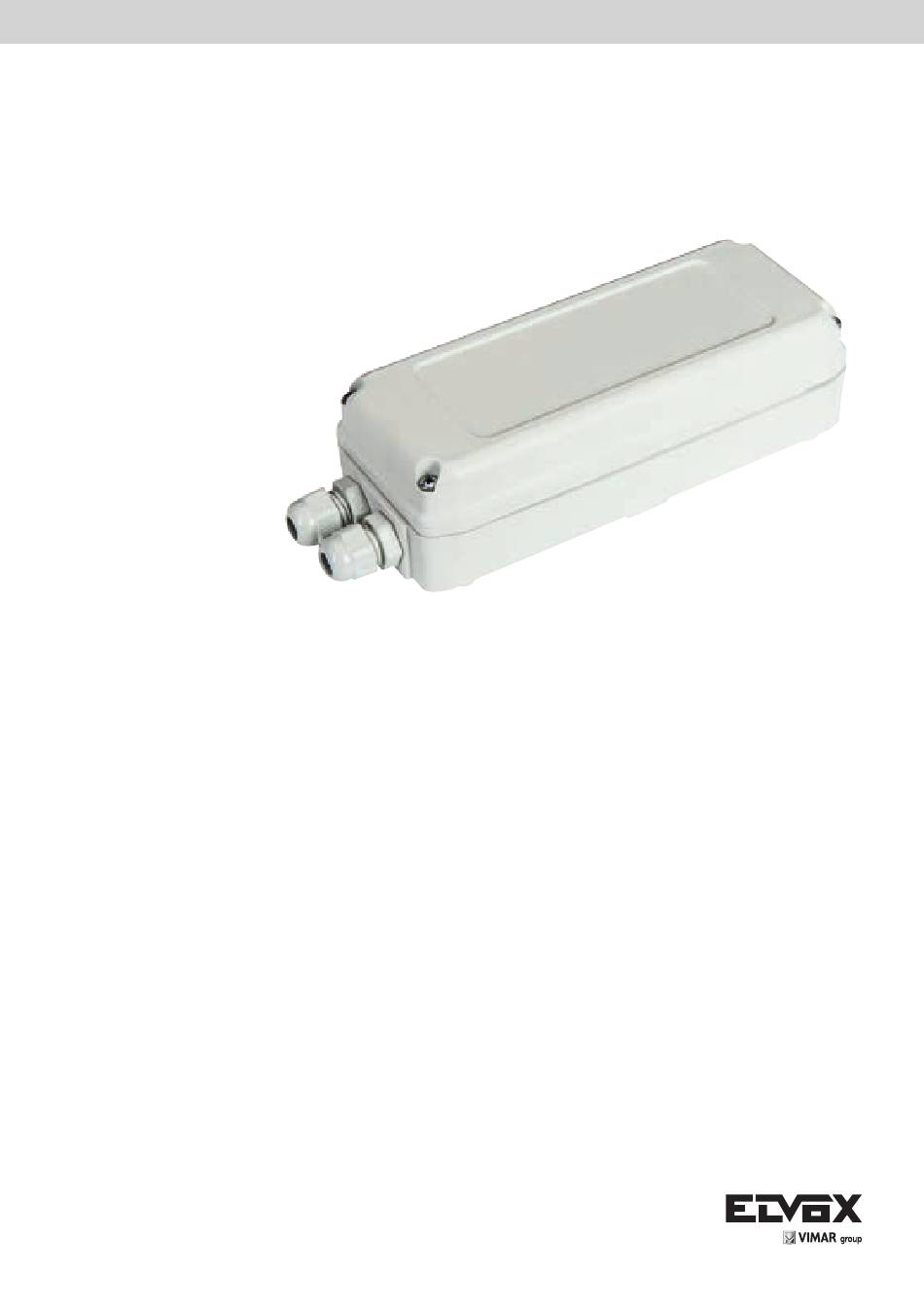

- Page 1 Installer Manual ECRU.W Receiver with 2+2 channels 12/24V 433 MHz...
-
Page 2: Table Of Contents
ECRU.W Contents: ................................Page Product features ..............................1 Power supply ..............................1 Connecting the aerial............................1 Expansion of number of outputs .........................1 Configuration of outputs and programming of activation time ................2 Setting the output status .............................3 Deleting the output configurations ........................3 Saving the remote controls ..........................3 Saving the remote controls via radio ........................4 Deleting a single remote control .........................5 Deleting all the remote controls ..........................6... -
Page 3: Product Features
The ECRU.W receiver has 2 on board outputs and can be increased to 4 by adding the ECRU.W.CA module to connect to the connectors: CH3 to enable the output on terminal block CH3 CH4 to enable the output on terminal block CH4 VIMAR group... -
Page 4: Configuration Of Outputs And Programming Of Activation Time
ECRU.W 5 - Configuration of outputs and programming of activation time: The outputs are configurable independently as: - impulsive - two-position stable - timed Output configuration Description The selected output is activated only while the control button is pressed. The relay closing time is equal to 0.5 s. Impulsive (default setting) The outputs are controlled in the following way: First command =>... -
Page 5: Setting The Output Status
LEDs DL1, DL2, DL3, DL4 Holding down P1, switch on the receiver come on fixed with red light LEDs DL1, DL2, DL3, DL4 Keep holding down P1 (10 s) go out 10 s Release P1 to complete the deletion VIMAR group... -
Page 6: Saving The Remote Controls
ECRU.W 8 - Saving the remote controls: Note: The receiver can save rolling-code and fixed code remote controls. The first saved remote control determines the code accepted by the receiver. The receiver will not save a mixed code. To change the code accepted by the receiver you must delete all the remote controls in the memory. To save the remote controls, proceed as described in the following table: Step Action... -
Page 7: Deleting A Single Remote Control
Repeat the procedure to delete other re- All the LEDs go out mote controls Note: The delete procedure for a single remote control deletes all the buttons on the remote controls associated to the re- ceiver VIMAR group... -
Page 8: Deleting All The Remote Controls
ECRU.W 11 - Deleting all the remote controls: To delete all the remote controls, proceed as described in the following table: Step Action Signal P1+P2 LEDs DL1, DL2, DL3, DL4 flash Press and hold down P1 and P2 quickly with a red light P1+P2 LEDs DL1, DL2, DL3, DL4 remain Keep holding down P1 and P2... -
Page 9: Saving And Resetting The Remote Control Memory
LEDs DL1, DL2, DL3, DL4 come on with fixed light for 2 s to signal: With the LEDs still flashing in se- Green light: saving completed suc- quence, release P1 cessfully Red light: error (memory absent or full) VIMAR group... -
Page 10: Receiver Management Via Smartphone Or Tablet
ECRU.W 3) Resetting the remote control memory from a secondary memory If the secondary memory with the remote controls to be reset is not pre- sent, switch off the power and insert am MEM.W memory module in con- nector MEM2 and switch the power back on LEDs DL1, DL2, DL3, DL4 flash slowly Press and hold down P2 for 6 s... - Page 11 ECRU.W VIMAR group...
- Page 12 Viale Vicenza 14 36063 Marostica VI - Italy www.vimar.com ECRU.W installer EN 01 1706...
