AmbiCom WL54-PCI Specifications

802.11b/g wireless lan pci card

Advertisement

Quick Links

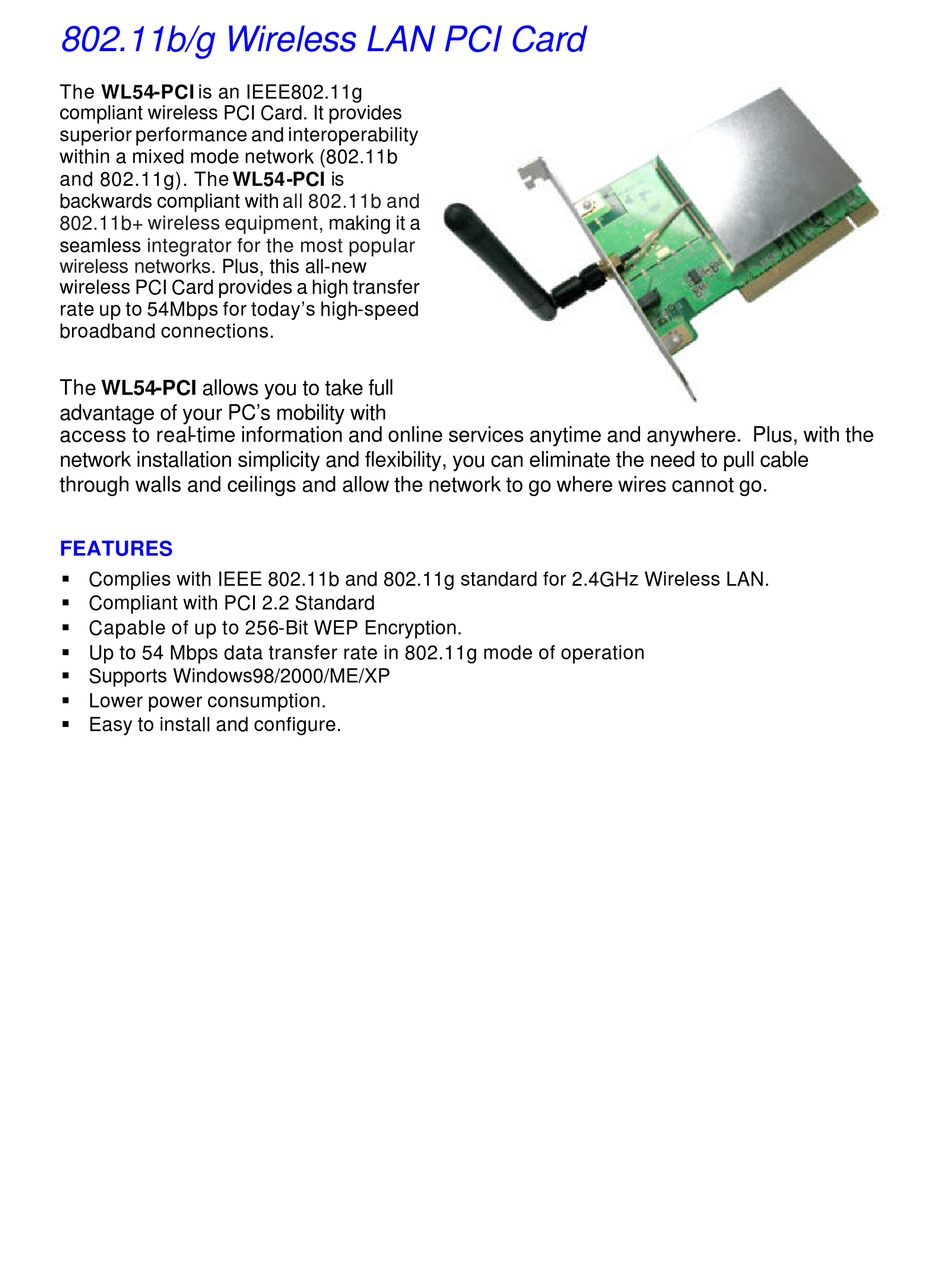

802.11b/g Wireless LAN PCI Card
The WL54-PCI is an IEEE802.11g
compliant wireless PCI Card. It provides
superior performance and interoperability
within a mixed mode network (802.11b
and 802.11g). The WL54-PCI is
backwards compliant with
802.11b+ wireless equipment,
seamless
integrator for the most popular
wireless networks.
Plus, this all-new
wireless PCI Card provides a high transfer
rate up to 54Mbps for today's high-speed
broadband connections.
The WL54-PCI allows you to take full
advantage of your PC's mobility with
access to real-time information and online services anytime and anywhere. Plus, with the
network installation simplicity and flexibility, you can eliminate the need to pull cable
through walls and ceilings and allow the network to go where wires cannot go.
FEATURES
§ Complies with IEEE 802.11b and 802.11g standard for 2.4GHz Wireless LAN.
§ Compliant with PCI 2.2 Standard
§ Capable of up to 256-Bit WEP Encryption.
§ Up to 54 Mbps data transfer rate in 802.11g mode of operation
§ Supports Windows98/2000/ME/XP
§ Lower power consumption.
§ Easy to install and configure.
all 802.11b and
making it a

Advertisement

loading
Need help?

Need help?

Do you have a question about the WL54-PCI and is the answer not in the manual?

Questions and answers

Summary of Contents for AmbiCom WL54-PCI

  • Page 1 PCI Card provides a high transfer rate up to 54Mbps for today’s high-speed broadband connections. The WL54-PCI allows you to take full advantage of your PC’s mobility with access to real-time information and online services anytime and anywhere. Plus, with the network installation simplicity and flexibility, you can eliminate the need to pull cable through walls and ceilings and allow the network to go where wires cannot go.
  • Page 2: Specifications

    SPECIFICATIONS IEEE 802.11b, IEEE 802.11g Standard Standard PCI Interface 2.2 Host Interface 3.3V ± 5% Operating Voltage Power consumption at 11g TX: 630mA, RX: 350mA Power Requirement Power consumption at 11b TX: 600mA, RX: 350mA Dipole Antenna Antenna Type 2.412GHz-2.4835GHz Frequency Range 11g:Orthogonal Frequency Division Multiplexing (OFDM) 54Mbps/48Mbps:QAM -64...
  • Page 3 Windows 98SE Windows ME Supported OS Windows 2000 Windows XP EMC Certification FCC Part 15.247 in US. EN300328 and EN300826 (EN301489-17) in Europe...
