RCA RNSMU8220 Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Model:RNSMU8220

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RNSMU8220 and is the answer not in the manual?

Questions and answers

Related Manuals for RCA RNSMU8220

Summary of Contents for RCA RNSMU8220

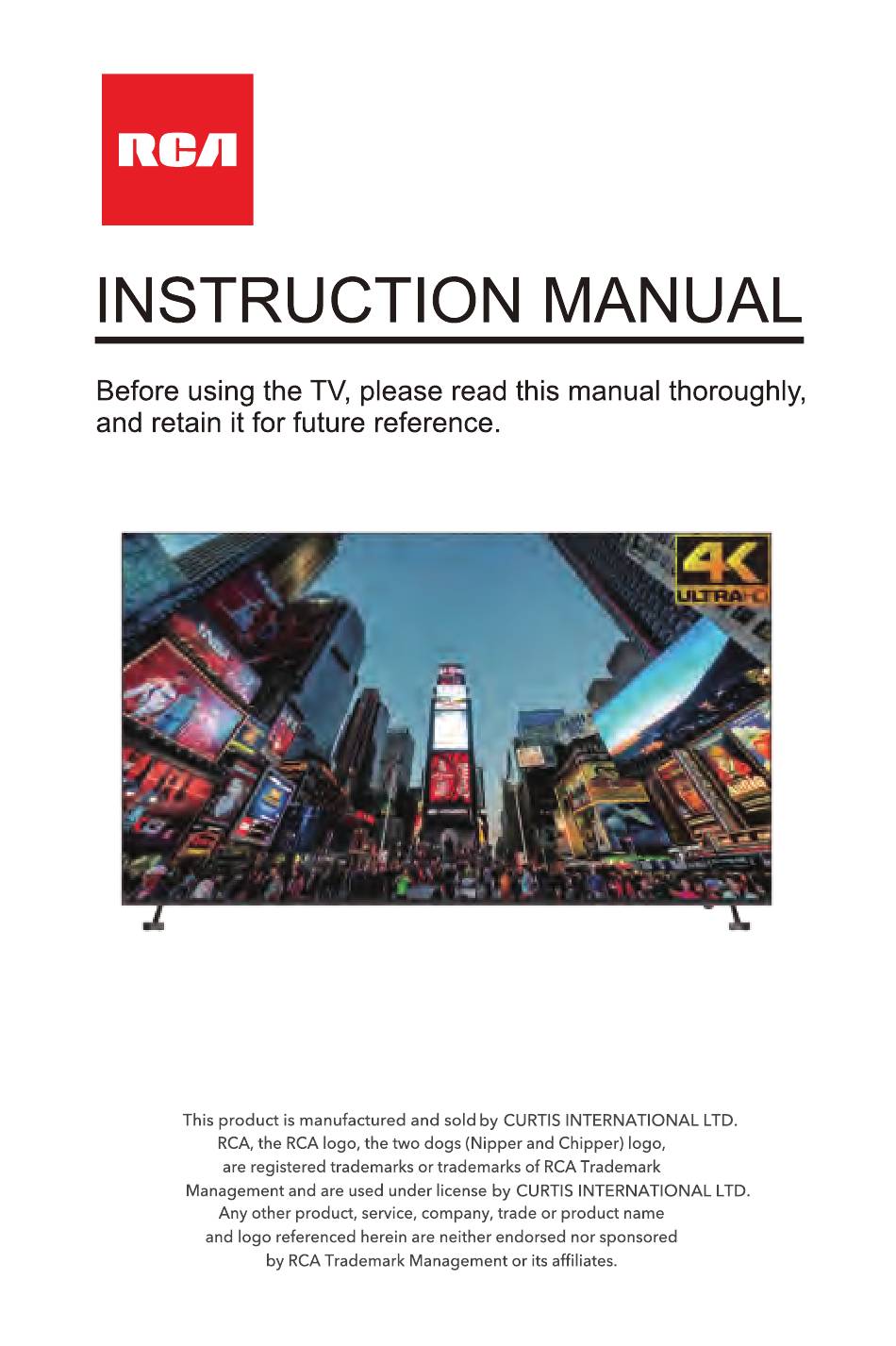

  • Page 1 Model:RNSMU8220...

  • Page 3: Table Of Contents

    CONTENTS Important Safety Instructions Safety Information Preparation Front View Rear View Installing the Base Stand Removing the Stand for Wall-Mounting Wall-Mounting Screws Connections PREPARATION Remote Control Basic Operations Initial Setup Menu Operation Picture Sound Function Time LOCK Channel Network Setting Internet Digital Media Palyer Introduction...
  • Page 6 POWER:Press to turn the unit on and off.
  • Page 7 HEADPHONE OPTICAL RJ-45 HDMI3(HDCP2.2) HDMI2(HDCP2.2) HEADPHONE:Connect a 3.5mm headset for personal audio. OPTICAL:Digital TV sound output. RJ-45:Connect the Internet HDMI:(High-Definition Multimedia Interface)Provides an uncompressed digital connection. RF:Connect to receive the signal from your antenna or cable through a coaxial cable. USB:Connect the USB device such as the flash disk to access the TVmedia function.

  • Page 8: Removing The Stand For Wall-Mounting

    Installing the Stand surface to avoid damaging or scratching. 2. Fix the Left Base Stand to the main unit using 2pcs provided screws. 3. Fix the Right Base Stand to the main unit using 2pcs provided screws. Removing the Stand for Wall-Mounting surface to avoid damaging or scratching.
  • Page 12 PREPARATION Remote Control POWER : Turn the TV on and off. Input : This button is used to switch among different sources, Select a source and press ENTER button to confirm. Digital Buttons(0-9, -) : Directly select channel with digital buttons. Switch to the previous program.

  • Page 13: Basic Operations

    Basic Operations Initial Setup • Connect the power cord to the power socket after you have completed all the physical connections. At this stage, the TV will enter Standby Mode and the red LED indicator will illuminate. • In Standby Mode, press the button on the main unit or on the remote control to turn the TV on.
  • Page 14 Initial Setup Time Zone Home or Store Select the time zone. Select where you will use the TV. Pacific Home Atlantic Store Eastern ENTER Confirm Retum ENTER Confirm BACK Clock Select Daylight saving time. Select to set the clock. Auto Manual Retum Retum...

  • Page 15: Menu Operation

    Basic Operations Menu Operation Input Setup Input Source Input Source Press INPUT key on the remote control to enter "INPUT SOURCE" menu. There are these options for you to select: "TV", "AV", "Component", "HDMI1", “HDMI2", “HDMI3",“USB". Use /key to select a input source and press ENTER key to confirm. Input Source Component HDMI 1 HDMI 2...

  • Page 16: Picture

    Menu Operation  To increase the volume, press VOL key; Mute  To decrease the volume, press VOL key; Mute Press “MUTE” and the sound cuts off. The MUTE icon will appear in the lower-right corner of the screen. To resume sound, press the “MUTE” button again, or simply press the key.
  • Page 17 Menu system instruction Picture User settings for PICTURE Contrast, Brightness, Color, Sharpness,Tint Picture Mode Your set has several settings which allow you to control picture Contrast quality. 1. Press ▲/▼ key to select a particular item. Brightness 2. Press / key to decrease or increase the value of a particular Color item.
  • Page 18 Menu system instruction Sound 1. Press MENU key to display the main menu on the screen. 2. Press / key to select "Sound" option. Sound Mode 3. Press  key to enter "Sound" submenu. Balance 4. You can also press the SOUND key on the remote control to select one of the sound.

  • Page 19: Sound

    Menu system instruction SOUND Dolby Audio Process Digital Audio Output This is used to set digital audio output Dolby Audio Process 1. Press / key to select "Digital Audio Output” option. Mode Movie User 2. Press “” or "ENTER" key to confirm. High Surrond Virtualizer 3.

  • Page 20: Function

    Menu system instruction Function Link Setup 1. Press / key to select “Link Setup” option. 2. Press ENTER or key to enter “Link Setup” Link Setup submenu. Enable link Enable Link: Press / to turn on/off the link setup. Auto Power On Auto Power On: When this option is “On”...

  • Page 21: Time

    Menu system instruction Time 1. Press MENU key to display the main menu on the screen. 2. Press / key to select "Time" option. 3. Press  key to enter "Time" submenu. Off Time On Time Off Time In "Off Time” item, press button or ENTER button Sleep Timer to enter the submenu, set the day &...
  • Page 22 Menu system instruction Option 1. Press MENU key to display the main menu on the screen. 2. Press / key to select "Option" option. 3. Press  key to enter “Option" submenu. OSD Language OSD Language 1. Press / key to select “ OSD Language "...

  • Page 23: Lock

    Menu system instruction Lock The "Lock" feature automatically locks out programming that is deemed inappropriate for children. The user must first enter a Password before any of the lock restrictions can be set up or changed. . Press / key to select " Lock "...

  • Page 24: Channel

    Menu system instruction Channel Before your television can begin memorizing the Antenna Mode available channels, you must specify the type of Auto Search signal source that is connected to the TV (i.e. an Program Edit antenna or a cable system). 1.
  • Page 25 Menu system instruction Favorite(Yellow) button This function can help store the favorite program then these programs can be quickly selected. 1. Select the program which is favorite. 2. Press “Fav”(Yellow) Button, the favorite mark is displayed at the left side of the Program Edit is store into the Favorites.

  • Page 26: Network Setting

    NETWORK SETTING 1.Press the “Menu” to enter, then pitch on the ”Option”,and press “ENTER” or click the right button to enter the submenu. OSD Language Picture OSD Time Sound Closed Caption Function Reset Time Network Configuration Option Software Upadate（USB） View End-User License Lock Internet Update Check Channel...
  • Page 27 Network Setting STATUS WIFI Network Configuration Manual 000. 000. 000. 000 Netmask 000. 000. 000. 000 Gateway 000. 000. 000. 000 000. 000. 000. 000 Connect 4.If shows "Success" ， the "WLAN" on the bottom right corner will turn to green from red, and it means the network connect successfully;...
  • Page 28 Network Setting 1. Press the menu button, a menu and choose "Option", under the Option menu select "Network Configuration" ， interface for Network connection. 2. In the network interface " " " " key to switch to WIFI connection interface. 3.

  • Page 29: Internet

    Internet Press “HOME” key to enter internet interface 1. NETFLIX Use arrow key to Select button, then press “ENTER” key to enter NETFLIX. Input the right Email and password,  then select “ Next” button and press“ENTER” key to login. Use arrow button to select one video and press “ENTER”...
  • Page 30 Internet 3.VUDU Use arrow key to Select button, then press “ENTER” key to enter VUDU. 4.pandora Use arrow key to Select button, then press “ENTER” key to enter pandora. Input the right Email and password,  then select “login” button and press PANDORA “ENTER”...
  • Page 31 Internet Use arrow key to browse the pages. press “MENU” key to return to main menu and press “EXIT” key to exit twitter. Red key: log in or log out twitter. Green key: refresh current page. Yellow key: write new tweet. Blue key: Search tweet.
  • Page 32 Internet 7.Accuweather Use arrow key to Select button, then press “ENTER” key to enter Accuweather.  Input a city or zip code press select to get the weather information. 8.Screencast Use arrow key to Select button, then press “ENTER” key to enter Screencast.
  • Page 34 10W+10W SPDIF Optical USB Media Player USB Port 350W...
  • Page 37 'This product has been manufactured and sold under the responsibility of Curtis International Ltd. RCA, the RCA logo, the two dogs (Nipper and Chipper ) logo, are registered trademarks or trademarks of Technicolor (S.A.) or its affiliates and are used under license by Curtis International Ltd.
  • Page 38 Model:RNSMU8220...

  • Page 40: Digital Media Palyer

    CONTENTS Important Safety Instructions Safety Information Preparation Front View Rear View Installing the Base Stand Removing the Stand for Wall-Mounting Wall-Mounting Screws Connections PREPARATION Remote Control Basic Operations Initial Setup Menu Operation Picture Sound Function Time LOCK Channel Network Setting Internet Digital Media Palyer Introduction...
  • Page 43 POWER:Press to turn the unit on and off.
  • Page 44 HEADPHONE OPTICAL RJ-45 HDMI3(HDCP2.2) HDMI2(HDCP2.2) HEADPHONE:Connect a 3.5mm headset for personal audio. OPTICAL:Digital TV sound output. RJ-45:Connect the Internet HDMI:(High-Definition Multimedia Interface)Provides an uncompressed digital connection. RF:Connect to receive the signal from your antenna or cable through a coaxial cable. USB:Connect the USB device such as the flash disk to access the TVmedia function.
  • Page 45 Installing the Stand surface to avoid damaging or scratching. 2. Fix the Left Base Stand to the main unit using 2pcs provided screws. 3. Fix the Right Base Stand to the main unit using 2pcs provided screws. Removing the Stand for Wall-Mounting surface to avoid damaging or scratching.
  • Page 49 PREPARATION Remote Control Input Q.MENU Menu: 7. Back: Exit ENTER 11. NETFLIX 12. HOME: 13. pandora: VOL - 15. CH 49 4A 84 1C 17. CC: 20. TTS: 21. INFO: 22. YouTube: 23. MUTE:...
  • Page 50 Funciones Básicas • Conecte el cable de alimentación a la toma de corriente después de haber completado todas las conexiones físicas. En esta etapa, el televisor pasará al modo de espera y el indicador LED rojo se iluminará. • En el modo de espera, presione el botón de la unidad principal o en el control remoto para encender el televisor.
  • Page 51 Configuración inicial Zona horaria Casa o tienda Select the time zone. Seleccione donde usará la TV. Pacific Casa Atlantico Tienda Este Confirmar ENTER Confirmar ENTER BACK Volver reloj Seleccione para ajustar el relogio. Select Daylight saving time. Apagado Auto Encendido Manual Confirmar Confirmar...
  • Page 52 “HDMI3” Entrada Component Enter...
  • Page 53 Menú de Funciones La derecha 1. Pulse la tecla MENU para mostrar el menú principal en pantalla. 2. Pulse la tecla ▲/▼ para seleccionar la opción de “Imagen”. 3. Pulse la tecla ► para ingresar al submenú de “Imagen”. Imagen 4.
  • Page 54 Modo Imagen Modo Imagen (Contraste,Brillo,Color,Nitidez,Tinte) Contraste Brillo Color Nitidez Tinte Luz de Fondo Temp.del Color Contraste: Brillo: Color: Nitidez: Tinte: Luz de Fondo Luz de Fondo Luz de Fondo: Temp.del Color Temp.del Color Frío: Padrón: Caliente:...
  • Page 55 Sonido 1.Pulse la tecla MENU para mostrar el menú principal en pantalla. 2.Pulse la tecla ▲/▼ para seleccionar la opción de “Sonido”. 3.Pulse la tecla ► para ingresar al submenú de “Sonido”. Modo Sonido SONIDO Balance para seleccionar una de las configuraciones de sonido. Auto Volumen Sonido Surround Video Description...
  • Page 56 Salida de Audio Digital Se utiliza para establecer la salida de audio digital. 1. Pulse la tecla ▲/▼ para seleccionar la opción de "Salida de Proceso de audio Dolby Audio Digital ". Apagado Proceso de audio Dolby 2. Pulse la tecla “►” o "ENTER" para confirmar. 3.
  • Page 57 Ajustes del LINK Ajustes del LINK 1. Pulse la tecla ▲/▼ para seleccionar la opción de Activar LINK Encendido " Ajustes del LINK ". 2. Pulse ENTER o la tecla ► para ingresar al submenú de Encendido Auto Encender " Ajustes del LINK ". Standby Automático Apagado Activar LINK: Pulse la tecla ◄/►...
  • Page 58 Reloj 2.Pulse la tecla ▲/▼ para seleccionar la opción de “Reloj”. 3.Pulse la tecla ► para ingresar al submenú de “Reloj”. Off Time On Time Off Time En el ítem "Off Time", pulse el botón o ENTER para entrar Sleep Timer el submenú, establezca el día y hora en la que desea Apagado autom.
  • Page 59 Opción Idioma del OSD Idioma del OSD Tiempo de OSD Idioma del OSD Closed Caption Restaurar el modo de Fábrica Tiempo de OSD Actualización de Software(USB) View End-User License Internet Update Check Closed Caption Network Update Information 1. Press / key to select “Closed Caption" option. Modo Usuario 2.
  • Page 60 Bloqueo Bloqueo Bloqueo Bloqueo Bloquear Ingrese Seña Bloquear Apagado Encendido Cambiar Seña Pulse la tecla ▲/▼ para seleccionar la opción de "Cambiar Seña" Bloquear Cambiar Seña Cambiar Seña USA TV USA MPAA Canada English Canada French RRT Setting RRT Reset Block Unrated TV USA TV USA MPAA...
  • Page 61 Antenna Mode Sintonia Automatica Editar Canales Sintonia Manual DTV Pulse la tecla MENU para mostrar el menú principal en pantalla. Pulse la tecla ▲/▼ para seleccionar la opción de "Antenna Mode". Sintonia Manual ATV Pulse ENTER o la tecla ► para ingresar al submenú de "Antenna Mode". Inform.de señal Antenna Mode Sintonia Automatica...
  • Page 62 Botón (Amarillo) de Favorite Esta función puede ayudar a almacenar sus programas favoritos para luego poder seleccionarlos rápidamente. 1. Seleccione su programa favorito. 2. Pulse el botón de "Fav" (Amarillo), la marca de favorito se mostrará en el lado izquierdo de Edición de Programa cuando el mismo sea seleccionado. 3.
  • Page 63 Opción Imagen Idioma del OSD Tiempo de OSD Sonido Closed Caption Función Restaurar el modo de Fábrica Reloj Actualización de Software(USB) Opción View End-User License Bloqueo Internet Update Check Network Update Information Canal Modo Usuario STATUS WIFI Error MODO: 0.0.0.0 DNS: 0.0.0.0 GATEWAY:...
  • Page 64 Configuración de Red STATUS WIFI Sintonización digital manual 000. 000. 000. 000 Máscara de red 000. 000. 000. 000 Gateway 000. 000. 000. 000 000. 000. 000. 000 Conectar STATUS STATUS WIFI Auto 000. 000. 000. 000 Máscara de red 000.
  • Page 65 Configuración de Red 1. Pulse el botón de menú y elija "Optión", debajo del menú de opciones seleccione la interfaz de " "Red",” para la conexión de Red. 2. En la interfaz de red pulse las teclas "◄" "►" para cambiar la interfaz de conexión WIFI.
  • Page 66 Más opciones pausar...
  • Page 71 3840 x 2160 ,2160p. 350W...
  • Page 74 'Ce produit a été fabriqué et vendu sous la responsabilité de Curtis International Ltd. RCA, le logo RCA, le logo des deux chiens (Nipper et Chipper), sont des marques déposées ou des marques commerciales de Technicolor (S.A.) ou de ses affiliés et sont utilisés sous licence par Curtis International Ltd...
