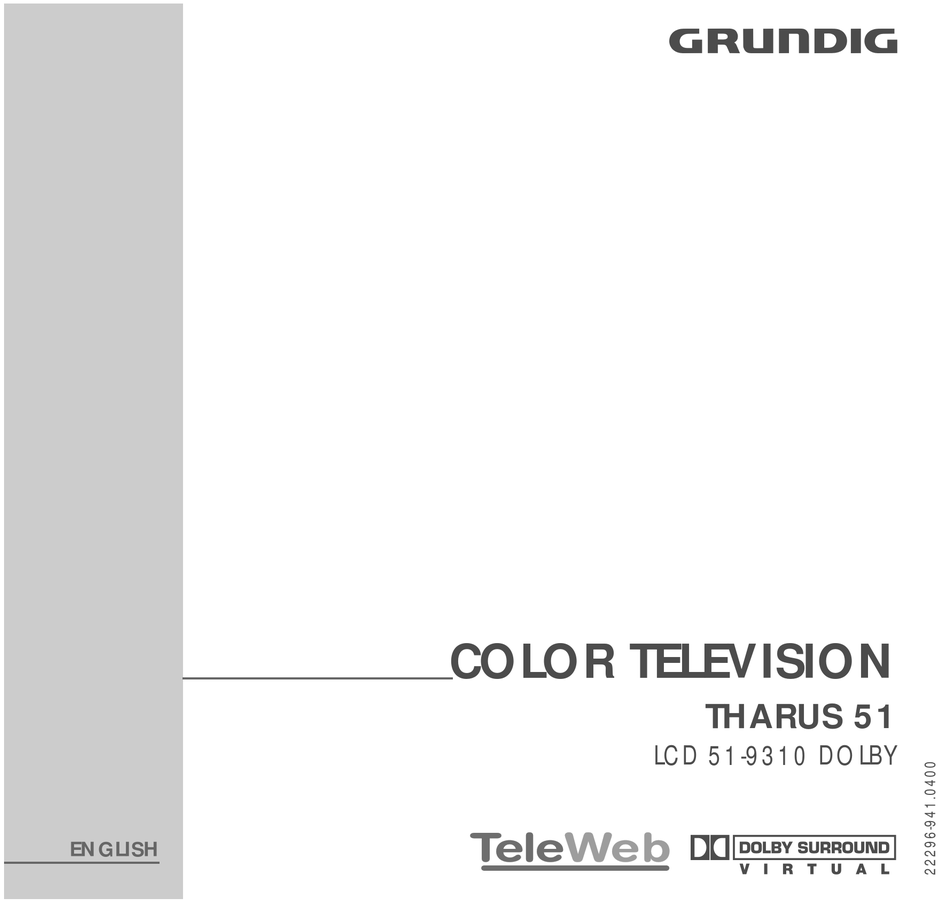

- Page 1 COLOR TELEVISION THARUS 51 LCD 51-9310 DOLBY ENGLISH...
-
Page 2: Table Of Contents
CONTENTS __________________________________________________________________________ Scope of delivery, Special Featueres Installation and safety At a glance The front of the TV set; The connection sockets of the TV set The remote control (TV mode); The remote control (teletext mode) Connection and preparation Putting batteries into the remote control Settings Programming TV channels;... - Page 3 THARUS 51 LCD 51-9310 DOLBY __________________ Scope of delivery TV set Remote control 2 batteries, 1.5 V–, Mignon (AA) Strain relief Operating instructions Tele Pilot 150 C Mains cable harus AV adapter EURO AV cable Wall mount Socket panel Aerial cable...
-
Page 4: Installation And Safety
INSTALLATION AND SAFETY _______________________________ Please observe the following information when installing and connecting the TV set: This set has been designed for the reception and reproduction of picture and sound signals. Any other use is explicitly forbidden. The ideal viewing distance from the screen is 5 times the diagonal width of the screen. -
Page 5: At A Glance
AT A GLANCE ___________________________________________________________________ The front of the TV set Switches the TV set on/off. An LED indicates the current operating mode. = Operation. Green = Standby (TV-GUIDE mode, copy mode, Timer mode). Yellow = Standby (power saving mode, timer programmed). The connection sockets of the TV set The connection sockets are located on the bottom of the screen. - Page 6 Clock time and channel position information on/off. Still picture. Tele Pilot 150 C Calls up the »SOUND« menu. To operate a GRUNDIG video recorder, satellite receiver, VCR/SAT/ DVD player press the »»VCR«, »SAT« resp. »DVD« button and hold it down. Then press the desired button.
- Page 7 AT A GLANCE _____________________________________________________________________________ The remote control (teletext mode) Enter the teletext page number 1 … 0 Letter size Call up descriptions of the various functions of the teletext in the »VT-Settings« menu. Call up the »VT-Settings« menu in teletext mode Page Catching.
-
Page 8: Connection And Preparation
CONNECTION AND PREPARATION _______________ Putting batteries into the remote control Open the battery compartment by pulling off the cover. Insert the batteries (Mignon, e.g. UM 3 or AA, 2x 1.5V) observing correct polarity. Note: If your television does not react to the remote control commands correctly, then the batteries could be used up. - Page 9 CONNECTION AND PREPARATION _______________________________________ Connect aerial, mains cable and AV devices (video recorder, DVD player, etc.) É Plug aerial cable to the house aerial into the » « jack Plug included mains cable into the » « jack If desired, connect video recorder with supplied EURO AV cable to the »AV 1 «...
-
Page 10: Settings
SETTINGS ______________________________________________________________________________ Programming TV channels The TV set is equipped with the automatic tuning system “ATS euro plus” which carries out the channel position assignment for you. Menu Language After switching on the TV set for the first time, select the dialog language with Deutsch Norsk Slovensky... -
Page 11: Easy Dialog System
EASY DIALOG SYSTEM _____________________________________________ The »Easy Dialog System« interactive operating instructions Your TV set is equipped with the »Easy Dialog System« interactive operating instructions. The many possibilities as well as settings and operation of the TV set are dis- played with this interactive operating instructions by menu tables, user guides and help functions. -
Page 12: Additional Functions
ADDITIONAL FUNCTIONS ______________________________________ Zap function With this function you may store the current channel position and switch to another one (zap). »1 … 0« or »P+, P -« to select the channel position you wish to store in › Z 7 PRO7 the zap memory (e.g channel position 7, PRO7) then press »Z«... - Page 13 ADDITIONAL FUNCTIONS _______________________________________________________ Alphanumeric channel selection You may select the channel positions directly by entering the channel name (e.g. ARD). For this, letters are assigned to the numeric buttons »2 … 0«. Up to four letters can be assigned. »2 … 0«...
-
Page 14: Adjusting The Tilt Angle
ADJUSTING THE TILT ANGLE _______________________________ The tilt angle of the screen can be adjusted either electronically or mechanically. Electronically adjusting the tilt angle You can easily adjust the tilt angle electronically. Picture 1 Noise reduction automatic 2 Comb filter automatisch Call up the picture menu with »... -
Page 15: Mounting On The Wall
MOUNTING ON THE WALL __________________________________ The supplied wall mount lets you hang the TV set on the wall like a picture. To do this, use the plug (a) and screws (b) included. Use the wall mount to mark the fixing points on the wall. Be sure that the screws extend about 1 cm from the wall. - Page 16 MOUNTING ON THE WALL _____________________________________________________ Disassembling the sound module (if desired) Remove TV set’s foot To do this, loosen the two screws on the bot- tom of the foot AUDIO AV 2 AV 1 WIRELESS 12 V max. 200 mA Loosen the four screws on the sound module at the rear.
-
Page 17: Customer Information
CUSTOMER INFORMATION __________________________________ Technical data Power supply voltage: 220 – 240 V, 50/60 Hz, (range of adjustment in the mains supply circuit 190 … 264 V) Power requirement: in operating mode 40 W, in standby mode Final sound stage: Front 2 x 5 watts music (2 x 3 watts sinus) Subwoofer 12 watts music (8 watts sinus) Frequency area: C01 …... - Page 18 CUSTOMER INFORMATION __________________________________ Pin assignment for the EURO-AV socket 1 Signal 11 = audio output right 12 = audio input right 13 = audio output left 14 = audio ground 15 = blue ground 16 = audio input left 17 = RGB blue input 18 = switching voltage 19 = green ground 10 = data line (MEGALOGIC)
- Page 19 CUSTOMER INFORMATION __________________________________ Service hints for the specialized dealer The TV set may be operated only with the mains calbe set supplied. It prevents mains interference and is an integral part of the appliance approval. For repla- cement purposes, please order only the mains cable set with the part number 8290.991-427 from an approved after-sales service.
-
Page 20: Correcting Problems Yourself
CORRECTING PROBLEMS YOURSELF ____________ If the remedies below do not lead to a good result, contact an authorised GRUNDIG dealer. Please consider that problems can also be caused by external appliances, such as video recorders and satellite receivers. Problem Possible cause... - Page 21 CORRECTING PROBLEMS YOURSELF ____________________________________ Problem Possible cause Remedy Picture is there, no sound. Volume at minimum or Increase/switch on volume. speakers switched off. Volume regulation activated Select sound output via audio cinch socket via speaker. (if this possibility is available). Problem is with the broadcaster.
- Page 22 In no circumstance must any of the wires be connected to the terminal marked with the letter “E”, earth symbol “ ”, coloured green, or green & yellow. Replacement mains lead sets can be obtained from your local dealer, or by contacting Grundig Consumer Relations (01788 570088) Moulded 2-pin Euro lead set, not suitable for UK use:...
- Page 24 Grundig AG Beuthener Str. 41 D-90471 Nürnberg http://www.grundig.com • • •...
