MAKS PIR Quick User Manual

WIRELESS MOTION SENSOR INSENSITIVE TO ANIMALS

• sensitive PIR sensor
• equipped with a lens that is insensitive to animals
• adjustable sensitivity of the smartphone response
• secure two-way radio communication with MAKS PRO
• 868,0 ... 868.6MHz, several channels for redundancy,
range - up to 2000 m
• CR123 battery
• up to 5 years of operation on one battery
• easy and convenient installation

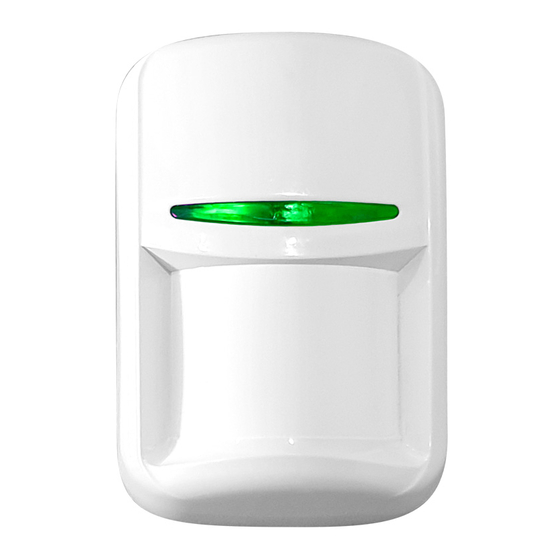

Our digital passive infrared radio channel detector is equipped with a
PIR-sensor and designed for the security of any closed residential and
industrial premises.
When the thermal balance of the environment changes, the detector sends
an intrusion signal to the MAKS PRO alarm system center.
For indoor installation.

Insensitive to animals

The detector has the special lens and is designed for use in areas where
pets (cats, dogs, etc.) can be present.
The device is insensitive to the movement of animals weighing up to 20 kg.
Radio communication
The detector transceiver operates
868.0 ... 868.6 MHz band for redundancy.
Secure two-way radio communication.
Distance - up to 2000 m in the open space.
Three grades of power, maximum - up to 20 mW.

Setting

The sensor operates only with MAKS PRO wireless security system center,
connection to other systems is not provided.
The sensor is connected to the security center and is configured using the
MAKS SETUP mobile application.
For more information on setting up and operating the
device, please visit www.maks.systems
in several channels of

Characteristics

Maximum working range
ISM wireless interface, up to 2000 m
secure two-way communication
Power
(Lithium battery included)
power consumption in standby
transmission power consumption
service life of battery
Radiated electromagnetic field immunity
Electrostatic discharge resistance
Optical noise immunity
Operating temperature range
Case color
Detector dimensions
with a wall bracket
with an angle bracket
Weight
12 m
868.0... 868.6 MHz
key - 256 bits
CR123A 3V battery
no more than 10 µA
no more than 20 mA
up to 5 years
5 V/m
8 kV
not less than 6500 Lux
-10°C to +55°C
white, black
90 x 60 x 34.35 mm
90 x 60 x 41.6 mm
90 x 60 x 48.84 mm
130 grams
