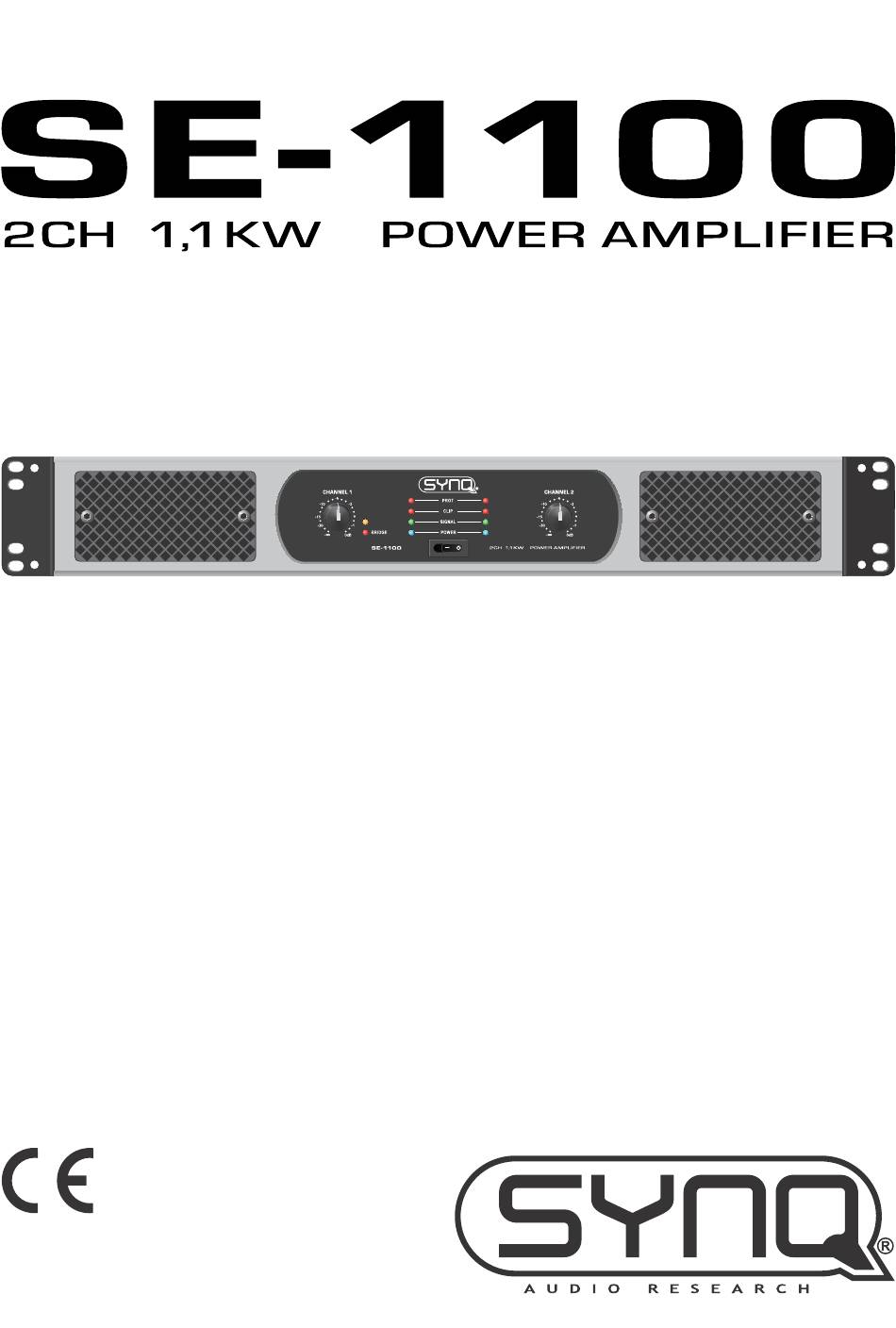

- Page 1 MONO ENGLISH Operation Manual Other languages can be downloaded from: WWW.SYNQ-AUDIO.COM Version: 1.0...
- Page 3 FEATURES • This SE-1100 power amplifier is unprecedented in terms of price / performance. • The sophisticated design of this lightweight CLASS-D amplifier ensures excellent and powerful low- frequency reproduction combined with crystal clear and delicately balanced high frequencies.
- Page 4 • The unit can be mounted in 19-inch racks. Attach the unit using the 4 screw holes on the front panel. Be sure to use screws of the appropriate size. (screws not provided) • Take care to minimize shocks and vibrations during transport. SYNQ SE-1100 ®...
- Page 5 • BRIDGE MODE: ‘BRIDGE’ LED is lit. Both channels are linked in “bridge mode” to obtain a mono output with much higher power. 4. SIGNAL LEDS: these LEDs indicate that a music signal is present at the inputs. 5. CLIP LEDS: The LEDs will light up in the following situations: SYNQ SE-1100 ®...
- Page 6 • Make sure there’s a music signal at the input • Turn the amplifier on (7) • Adjust the input gains (2) to the desired level BRIDGE OPERATION: • Connect the audio signal to the left input (15 or 16) SYNQ SE-1100 ®...
- Page 7 Power consumption (max peak) 1200 Watt Dimensions (WxHxD mm) 482x66x215 (19"/1,5U) Weight (kg) 3,85kg Every information is subject to change without prior notice You can download the latest version of this user manual on our website: www.synq-audio.com SYNQ SE-1100 ®...
