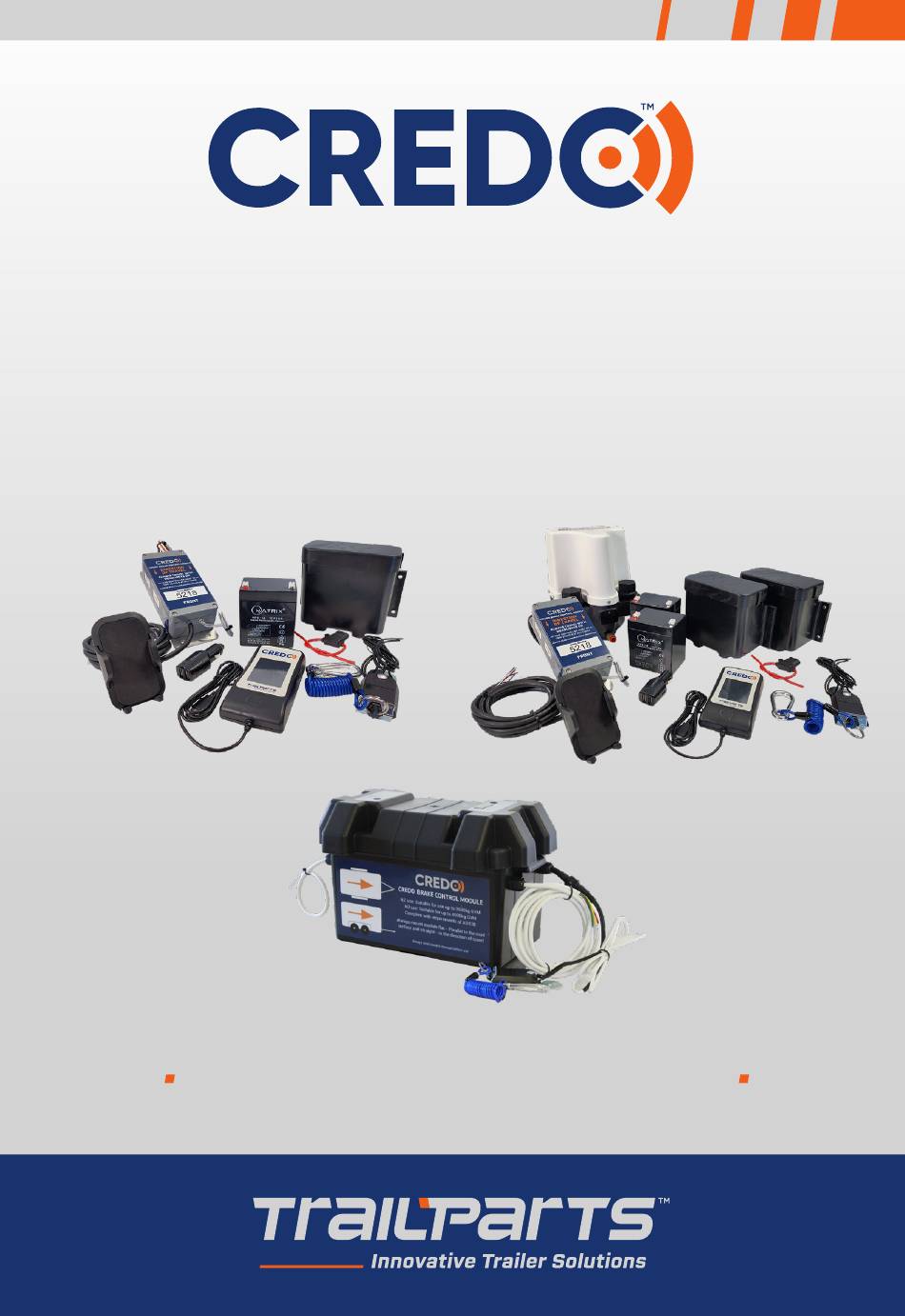

- Page 1 INSTALLATION GUIDE Electric Drums & Hydraulic Disc or Drum Read instructions before installation NZ: 3500KG GVM | AU: 4500KG GVM Please return to customer once install completed...
- Page 2 Page 12/13 Recoding In Cab Controller Page 14 Warranty - T&C - Maintenance Page 15 Serial Number Locations Note: This instruction Book is for Credo units with a serial number btween 900 - 4500 Freephone 1300 538 598 sales@trailparts.com.au www.trailparts.com.au...
-
Page 3: Orientation Guide
Orientation Guide CORRECT INCORRECT Direction of travel Must be mounted straight longitudinally, i.e. parallel to the direction of travel Direction of Travel Must be mounted straight longitudinally, i.e. parallel to direction of travel Unit must be INCORRECT INCORRECT CORRECT CORRECT level laterally FRONT FRONT... - Page 4 Mount the brake controller according to the mounting orientation instructions on page 3. Wire the brake controller according to the instructions on page 9. It is important that trailers fitted with the Credo™ braking system are also fitted with 12/24 volt LED lights, not voltage specific incandescent or LED lights.
- Page 5 Credo Electric Drum Wiring Diagram Wiring diagram below applies to Credo Brake Controller with electric drums only. Applies to units in serial There should be no more range 900 - 4499 than 2.5 metres of cable between the controller and the trailer plug to avoid voltage drop.
- Page 6 Mount the brake controller according to the mounting orientation instructions on page 11. Wire the brake controller according to the instructions on page 11. It is important that trailers fitted with the Credo™ braking system are also fitted with 12/24 volt LED lights, not voltage specific incandescent or LED lights.
- Page 7 Credo Hydraulic Disc / Drum Wiring Diagram Wiring diagram below applies to CredoTM Brake Controller with hydraulic brakes only. There should be no more Applies to units in serial than 2.5 metres of cable between the controller and range 900 - 4499 the trailer plug to avoid voltage drop.
- Page 8 Mount the on-trailer module according to the mounting orientation instructions on page 3. Wire the on-trailer module according to the instructions on page 7. It is important that trailers fitted with the Credo™ braking system are also fitted with 12/24 volt LED lights, not voltage specific incandescent or LED lights.
- Page 9 Red - Stop Light Connect brake line to brake Yellow - Left Indicator actuator port Wiring diagram above applies to Credo™ pre-assembled Brake Controller with hydraulic brakes only. All unused wires must be isolated. Actuator must have Trailparts™ isolator fitted.
-
Page 10: Troubleshooting
Troubleshooting Fault Possible Causes Repairs/Checks In-cab controller shows Battery is excessively Check battery is over 12.5V when discharged. disconnected. If lower replace the ‘Low Trailer Battery’ battery. warning (old style In-cab Bad connection between trailer mounted brake Check if battery is charging by Controller shows Eb Error) controller and battery. - Page 11 Fault Possible Causes Repairs/Checks Brakes randomly come on Faulty Break-away switch. Check breakaway switch and wiring for a short circuit. Replace and lock up. Faulty Break-away wiring. any faulty components or wiring. In-cab controller has Make sure In-cab controller is ‘emergency stop’...
- Page 12 Recoding of Touch-Screen In-cab Controller Power up In-cab controller on the USB cable and leave plugged in for the GAIN SENS. duration of coding the controller. Wait till the screen displays the gain and LESS MORE ADJ. sensitivity control buttons. Press and hold the battery symbol for 5 seconds ignoring the screen flashing EMERGENCY...
- Page 13 Once you have the serial number of your trailer mounted controller showing 4 3 5 0 press ‘SET’ to lock the In-cab controller to that serial number. EMERGENCY The In-cab controller will after a pause STOP emit 3 beeps and return to the normal Refer to step 5 operation screen.
-
Page 14: Warranty Terms And Conditions
TRAILPARTS/CREDO serial number months from the original date of purchase. of the defective product. -
Page 15: Serial Number Locations
Serial Number Locations Incab Controller: For serial numbers 1-2700 the serial number is located on the grey base of the controller or at the bottom of the black plate on the back if it is a touch screen controller. Serial numbers 2701- when the touch screen controller is first connected to power the serial number is shown on the 4th screen that displays on start up. - Page 16 AU Freephone 1300 538 598 NZ Freephone 0800 487 245 sales@trailparts.com.au sales@trailparts.co.nz www.trailparts.com.au www.trailparts.co.nz...
