Summary of Contents for Reed Instruments R5000

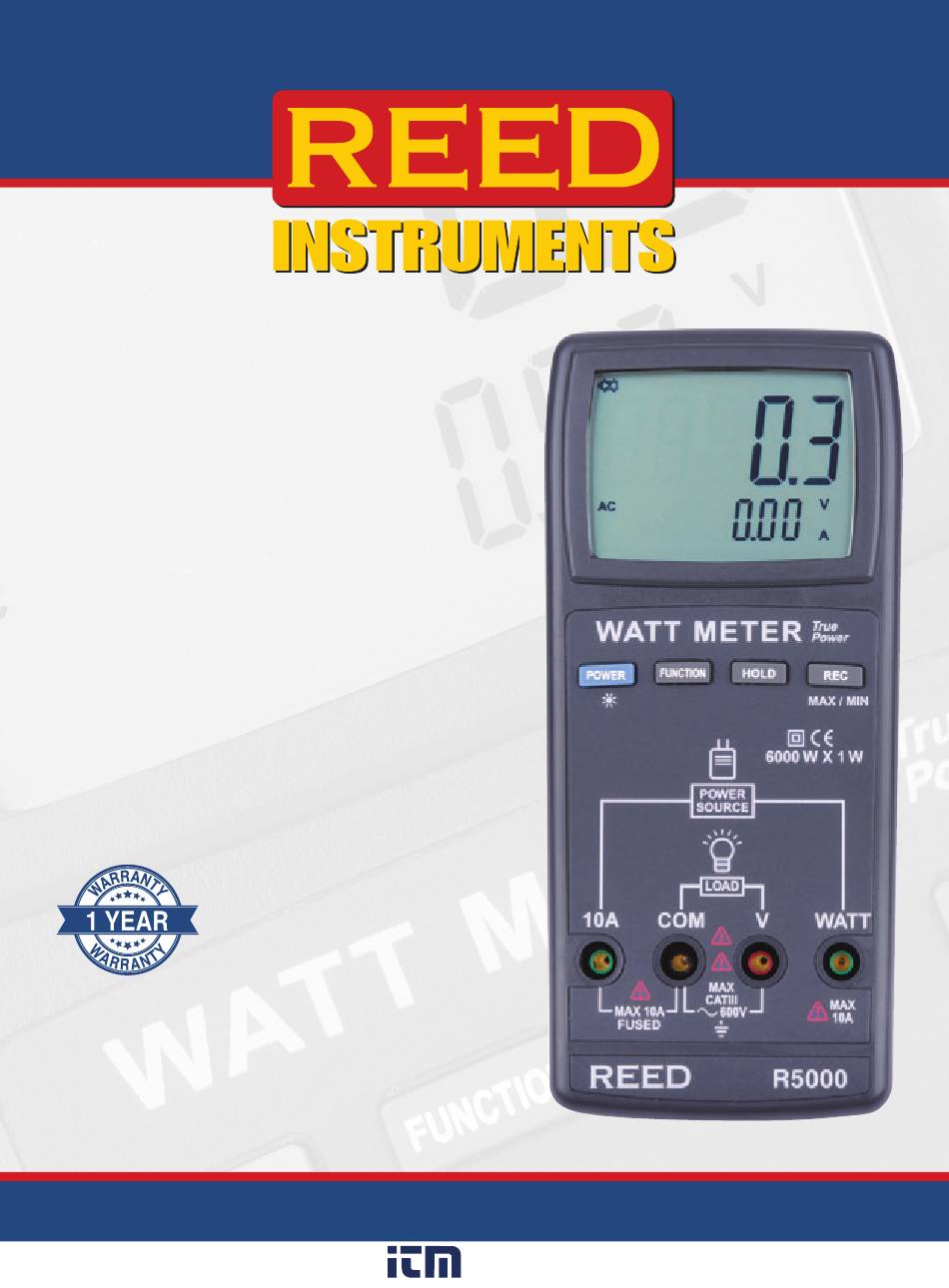

- Page 1 R5000 Watt Meter Instruction Manual 1.800.561.8187 information@itm.com www. .com...
-
Page 2: Table Of Contents
Table of Contents Introduction ....................3 Product Quality ................... 3 Safety ......................3 Features ...................... 3 Included ...................... 3 Specifications ..................... 4 Instrument Description ................5 Operating Instructions ................6-8 Voltage Measurements ................6 Current Measurements ................6 Watt Measurements................6-7 Data Hold ....................7 Data Record (Max/Min Reading)............ -
Page 3: Introduction
Introduction Thank you for purchasing your REED R5000 Watt Meter. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. Product Quality This product has been manufactured in an ISO 9001 facility and has been calibrated during the manufacturing process to meet stated product specifications. -
Page 4: Specifications
Specifications Watt Range: 0 to 6000W Resolution: Accuracy: ±(1% + 5W) AC Voltage Range: 0 to 600V Resolution: 0.1V AC Current Range: 0 to 10A Resolution: 0.01A Accuracy: ±(0.3% + 0.03A) Power Factor Range: 0 to 1.0 Resolution: 0.01 Accuracy: ±(1% + 2d) General Specifications Display: Dual LCD display... -
Page 5: Instrument Description
Instrument Description 1. LCD Display 7. HOLD Button 8. Record Button 2. FuNCTION Button 3. POWER/Backlight Button 9. Stand (Back) 10. Battery Cover (Back) 4. AC Adapter Terminal 5. Load Terminal 6. Power Source 1.800.561.8187 information@itm.com www. .com... -
Page 6: Operating Instructions
Operating Instructions Press and hold the POWER button to turn the meter on and off. Voltage Measurements Turn the meter on. Press the FUNCTION button to select ACV. Connect the red test lead to the V input terminal and black test lead to the COM input terminal. Touch the test leads to the voltage source. Read the AC voltage measurement on the display. If the display shows "----" it indicates an out-of-range measurement. -
Page 7: Data Hold
Turn on the power source (if applicable) or insert a probe into each vertical slot on the outlet as shown below and read out the Work voltage on the top part of the LCD. Turn on the equipment power switch (if applicable) or place one probe to the ground slot of the light bulb (side of the light bulb) and the other probe to the power (center of the lightbulb) as shown below. Let the reading stabilize before reading out the Power Consumption from the bottom part of the LCD. -
Page 8: Data Record (Max/Min Reading)
Data Record (Max/Min Reading) Press the REC button once to start the Data Record function. A "REC" symbol will appear on the LCD. Press the REC button again to display the Max value. A "REC MAX" symbol will appear on the LCD. To delete the maximum value, press the HOLD button. The "MAX" symbol will disappear from the LCD. Press the REC button twice to display the Min value. A "REC MIN" symbol will appear on the LCD. To delete the minimum value, press the HOLD button. The "MIN" symbol will disappear from the LCD. Press and hold the REC button for approximately 2 seconds to exit the Data Record function and resume normal operation. -
Page 9: Accessories And Replacement Parts
REED Instruments guarantees this instrument to be free of defects in material or workmanship for a period of one (1) year from date of shipment. During the warranty period, REED Instruments will repair or replace, at no charge, products or parts of a product that proves to be defective because of improper material or workmanship, under normal use and maintenance. -
Page 10: Product Disposal And Recycling
Product Support If you have any questions on your product, please contact your authorized REED distributor or REED Instruments Customer Service by phone at 1-877-849-2127 or by email at info@reedinstruments.com. Please visit www.REEDINSTRUMENTS.com for the most up-to-date manuals, datasheets, product guides and software. - Page 11 TesT & MeasuRe WITh ConfIdenCe CheCk ouT ouR laTesT PRoduCTs! 1.800.561.8187 information@itm.com www. .com...
- Page 12 1.800.561.8187 information@itm.com www. .com...
Need help?
Do you have a question about the R5000 and is the answer not in the manual?
Questions and answers
I **** using a Reed r5000 meter and it keeps shutting down even though I **** using it. I have seen the instructions to turn this feature off, but they what the instructions say to do does not keep the device from turning off during use. The instructions say; ""Auto Power Off; To preserve battery life, the meter is programmed to turn itself off after10 minutes of inactivity. To turn this function off, enter the Data Records function by pressing the REC button."" When I do this, I hear a beep, but the device continues to power down after a few minutes of my using it. Is there more to turning off the power saver mode that I **** missing?
To disable the auto power off feature on the Reed Instruments R5000 meter, enter the Data Record function by pressing the REC button.
