201306
LS5T

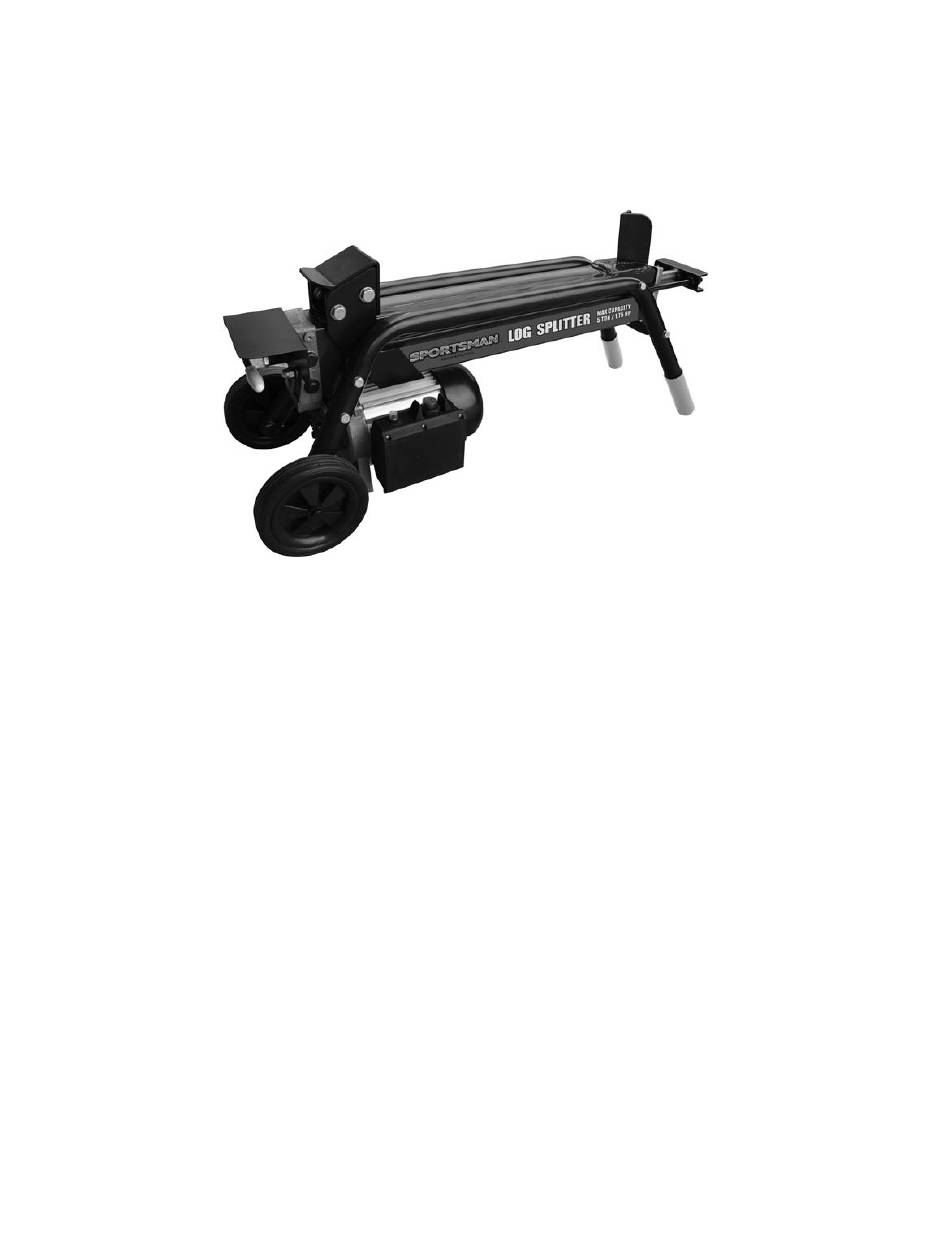

5 TON ELECTRIC LOG SPLITTER
INSTRUCTION MANUAL
READ ALL INSTRUCTIONS AND WARNINGS BEFORE USING THIS PRODUCT.
This manual provides important information on proper operation & maintenance. Every effort has been
made to ensure the accuracy of this manual. These instructions are not meant to cover every possible
condition and situation that may occur. We reserve the right to change this product at any time without
prior notice.
IF THERE IS ANY QUESTION ABOUT A CONDITION BEING SAFE OR UNSAFE,
DO NOT OPERATE THIS PRODUCT!
DO NOT RETURN THIS PRODUCT TO THE RETAILER - CONTACT CUSTOMER SERVICE.
If you experience a problem, have questions or need parts for this product, call Customer Service at
1-888-287-6981, Monday-Friday, 8 AM - 4 PM Central Time. A copy of the sales receipt is required.
Visit online http://www.sportsmanseriesbrand.com
or email info@sportsmanseriesbrand.com
FOR CONSUMER USE ONLY – NOT FOR PROFESSIONAL USE.
KEEP THIS MANUAL, SALES RECEIPT & APPLICABLE WARRANTY FOR REFERENCE.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LS5T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sportsman LS5T

Summary of Contents for Sportsman LS5T

  • Page 1 201306 LS5T 5 TON ELECTRIC LOG SPLITTER INSTRUCTION MANUAL READ ALL INSTRUCTIONS AND WARNINGS BEFORE USING THIS PRODUCT. This manual provides important information on proper operation & maintenance. Every effort has been made to ensure the accuracy of this manual. These instructions are not meant to cover every possible condition and situation that may occur.

  • Page 2: Specifications

    Note: If any parts are damaged or missing, do not attempt to operate this machine until the damaged or missing parts are obtained and are installed correctly Loose Parts Check all loose parts from the box with the list below. Assemble according to the instructions. LS5T 5 Ton Log Splitter...

  • Page 3: Important Safe Operation Practices

    Do not operate machine with frayed, kinked, cracked, or damaged hoses, fittings, or tubing. b. Stop the engine and relieve hydraulic system pressure before changing or adjusting fittings, hoses, tubing, or other system components. c. Do not adjust the pressure settings of the pump or valve. LS5T 5 Ton Log Splitter...
  • Page 4 9. Always keep fingers away from any cracks that open in the log while splitting. They can quickly close and pinch or amputate your fingers. LS5T 5 Ton Log Splitter...
  • Page 5 9. Do not alter this machine in any manner, alterations such as attaching a rope or extension to the control handle, or adding to the width or height of the wedge many result in personal injury. LS5T 5 Ton Log Splitter...
  • Page 6 EYE PROTECTION Always wear safety glasses or safety goggles when operating this machine. WARNING----MOVING WEDGE Keep hands away from wedge and moving parts. LS5T 5 Ton Log Splitter...

  • Page 7: Parts Diagram

    DO NOT ALLOW ANYONE TO OPERATE YOUR LOG SPLITTER WHO HAS NOT READ THIS MANUAL. READ EACH STEP COMPLETELY BEFORE PROCEEDING. WEAR SAFETY GLASSES DURING OPERATION. WEAR STEEL TOE BOOTS DURING ASSEMBLY. DO NOT START OR RUN THE ENGINE WITHOUT OIL IN THE HYDRAULIC RESERVOIR AND ENGINE. LS5T 5 Ton Log Splitter...
  • Page 8 2) Make sure hands are clear of the splitter. 3) Push control valve handle forward by one hand to split log. 4) Push control valve handle backward by one hand to return wedge to original position. 5) Clear split wood from work area. LS5T 5 Ton Log Splitter...
  • Page 9 Split the log in the direction of its grain. Placing logs across the log splitter for splitting is dangerous and may seriously damage the machine. Do not attempt to split two logs at the same time. LS5T 5 Ton Log Splitter...
  • Page 10 Adjust handle cap Self-tap screw Elastic washer Upper switch box cover Flat washer Rubber pad Protecting guard Screw Connection block Hex nut Screw Sealing ring Elastic washer Screw Tooth washer Oil cave Self-tap screw Cone cave LS5T 5 Ton Log Splitter...
  • Page 11 Rubber tube Dust-proof ring 2-head rod Dip stick Cylinder tube Sealing ring piston Oil lever stick cap Sealing ring Piston shank body Sliding ring Elastic washer Pressing ring Thick nut Back cover ring Back cover LS5T 5 Ton Log Splitter...
