KSPLIT10
GAS POWERED KINETIC
10 TON LOG SPLITTER INSTRUCTION MANUAL
READ ALL INSTRUCTIONS AND WARNINGS BEFORE USING THIS PRODUCT.
This manual provides important information on proper operation & maintenance. Every effort has been
made to ensure the accuracy of this manual. These instructions are not meant to cover every possible
condition and situation that may occur. We reserve the right to change this product at any time without
prior notice.
IF THERE IS ANY QUESTION ABOUT A CONDITION BEING SAFE OR UNSAFE,
DO NOT OPERATE THIS PRODUCT!
HAVE QUESTIONS? CONTACT US FIRST BEFORE CONTACTING THE RETAILER.
If you experience a problem, have questions or need parts for this product, call Customer Service at
1-866-460-9436, Monday-Friday, 8 AM - 4 PM Central Time. A copy of the sales receipt is required.
FOR CONSUMER USE ONLY – NOT FOR PROFESSIONAL USE.
KEEP THIS MANUAL, SALES RECEIPT & APPLICABLE WARRANTY FOR
FUTURE REFERENCE.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sportsman KSPLIT10
Summary of Contents for Sportsman KSPLIT10

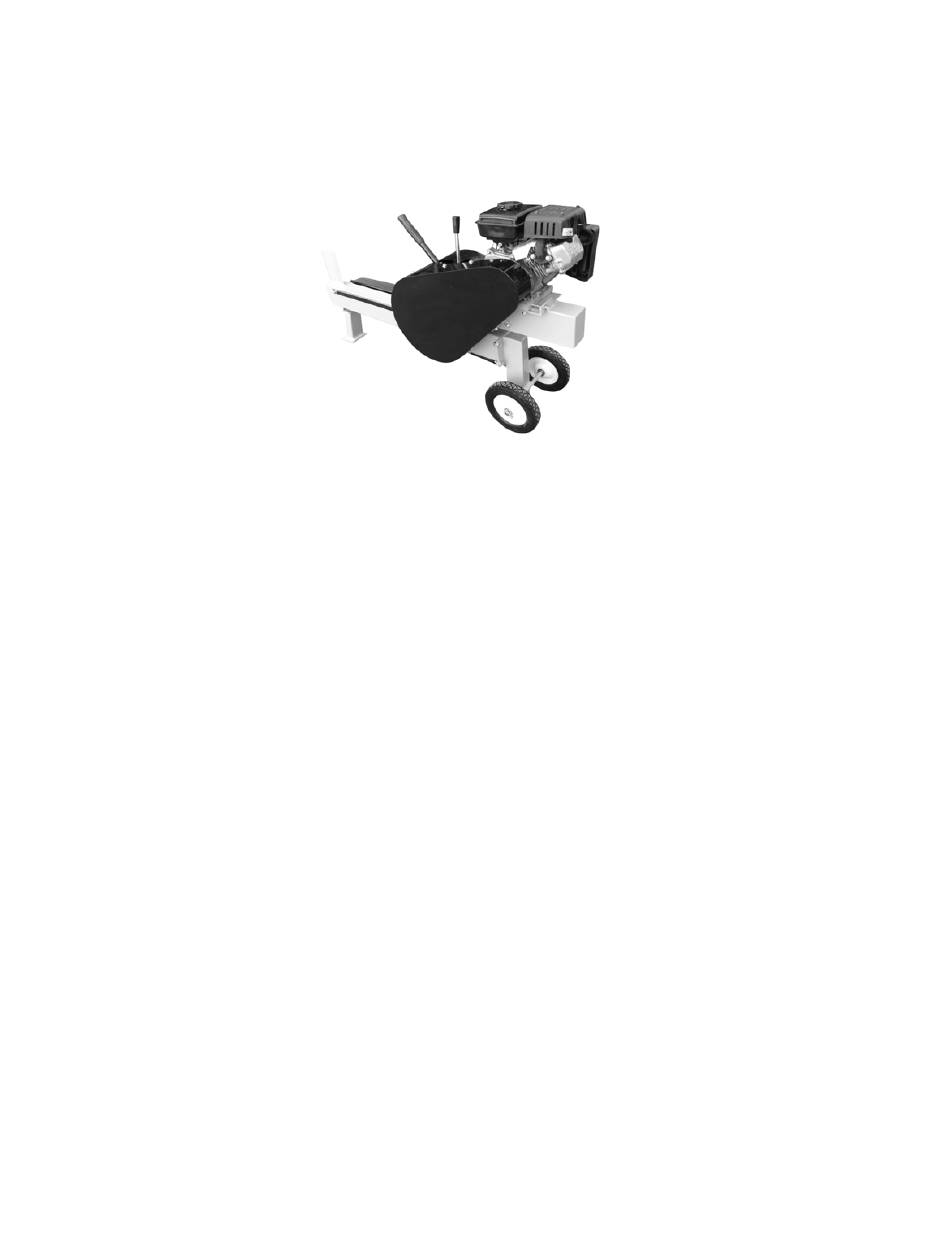

- Page 1 KSPLIT10 GAS POWERED KINETIC 10 TON LOG SPLITTER INSTRUCTION MANUAL READ ALL INSTRUCTIONS AND WARNINGS BEFORE USING THIS PRODUCT. This manual provides important information on proper operation & maintenance. Every effort has been made to ensure the accuracy of this manual. These instructions are not meant to cover every possible condition and situation that may occur.
-
Page 2: Specifications
3,000 feet. This item may not function properly above 3,000 feet because of air flow getting through the mixer. • Some assembly required. Outrigger Leg and Vee Belt requires assembly. KSPLIT10 GASOLINE POWERED KINETIC LOG SPLITTER INSTRUCTION MANUAL... -
Page 3: Recognize Safety Symbols, Words And Labels
Parts replaced during warranty repairs will be considered as part of the original product and will have the same warranty period as the original product. This warranty gives you specific legal rights, and you may have other rights that vary state to state. KSPLIT10 GASOLINE POWERED KINETIC LOG SPLITTER INSTRUCTION MANUAL... - Page 4 View all WARNING and operating instruction labels on your machine before each use. Below are copies of all the safety and information labels that appear on the equipment. Read and understand them before use to prevent injuries. KSPLIT10 GASOLINE POWERED KINETIC LOG SPLITTER INSTRUCTION MANUAL...
-
Page 5: Important Safety Instructions
WARNING: CALIFORNIA PROP 65: According to the State of California, this product contains or emits chemicals known to cause cancer, birth defects and other reproductive harm. KSPLIT10 GASOLINE POWERED KINETIC LOG SPLITTER INSTRUCTION MANUAL... - Page 6 KSPLIT10 GASOLINE POWERED KINETIC LOG SPLITTER INSTRUCTION MANUAL...
- Page 7 No list of warnings and cautions can be all-inclusive. If situations occur that are not covered by this manual, the operator must apply common sense and operate this log splitter in a safe manner. KSPLIT10 GASOLINE POWERED KINETIC LOG SPLITTER INSTRUCTION MANUAL...
-
Page 8: Assembly Diagram
Some assembly required. Please identify components below. Vee-belt, pulley guard and outrigger leg will require assembly. When installing belt, make sure it can be pressed down Place the Pulley Guard over the belt, then attach the two 0.75 – 1.25 inches (2~3 cm) when assembled. bolts securely. KSPLIT10 GASOLINE POWERED KINETIC LOG SPLITTER INSTRUCTION MANUAL... -
Page 9: Assembly Components
ASSEMBLY COMPONENTS KSPLIT10 GASOLINE POWERED KINETIC LOG SPLITTER INSTRUCTION MANUAL... - Page 10 ASSEMBLY COMPONENTS KSPLIT10 GASOLINE POWERED KINETIC LOG SPLITTER INSTRUCTION MANUAL...
- Page 11 4. Replace the oil filler/dipstick cap and close the oil access panel. 5. (Figure 3 indicates the location to drain oil, if necessary) Figure 1 – Unscrew Either Dipstick Caps Figure 2 - Add Oil Figure 3 - Drain Oil (when necessary) KSPLIT10 GASOLINE POWERED KINETIC LOG SPLITTER INSTRUCTION MANUAL...
- Page 12 • Avoid getting dirt and/or water in the fuel tank. • Gasoline can age in the fuel tank and make it difficult to start this log splitter. Never store this log splitter for extended time with gasoline in the fuel tank. KSPLIT10 GASOLINE POWERED KINETIC LOG SPLITTER INSTRUCTION MANUAL...
-
Page 13: Stopping The Log Splitter
Allowing gasoline to sit in this log splitter fuel tank for extended time without use can increase the difficulty in starting in the future. Never store this log splitter for extended time with gasoline in the fuel tank. KSPLIT10 GASOLINE POWERED KINETIC LOG SPLITTER INSTRUCTION MANUAL... - Page 14 If the Ram stops before the end of the stroke while splitting a tough log, quickly actuate the Engagement Handle back to the Auto-Retract position. Let the Ram return and allow the flywheels to gain momentum for another full power split. KSPLIT10 GASOLINE POWERED KINETIC LOG SPLITTER INSTRUCTION MANUAL...
-
Page 15: Maintenance Checklist
5. Confirm that the oil filler/dipstick cap is properly in place when finished verifying the oil level. KSPLIT10 GASOLINE POWERED KINETIC LOG SPLITTER INSTRUCTION MANUAL... -
Page 16: Changing/Adding Oil
6. Screw the spark plug back into place on this log splitter by using the included spark plug wrench. 7. Replace the spark plug cap. Figure 9 - Measuring the spark plug gap KSPLIT10 GASOLINE POWERED KINETIC LOG SPLITTER INSTRUCTION MANUAL... - Page 17 To drain the gasoline from the carburetor turn the fuel valve to the “off” position while the engine is running. The log splitter will shut down when all the gasoline in the carburetor has been used. Do not store gasoline for more than 3 months. KSPLIT10 GASOLINE POWERED KINETIC LOG SPLITTER INSTRUCTION MANUAL...
-
Page 18: Troubleshooting
Operator Lever not ⇒ Clean wood chips or other debris from under rack. engaging rack with ⇒ Clean accumulated dirt from frame where carriage assembly rests pinion gear. against rubber bumpers. KSPLIT10 GASOLINE POWERED KINETIC LOG SPLITTER INSTRUCTION MANUAL... -
Page 19: Parts Diagram
PARTS DIAGRAM ‘ KSPLIT10 GASOLINE POWERED KINETIC LOG SPLITTER INSTRUCTION MANUAL... -
Page 20: Parts List
Splitting handle Spring washerφ8 Press device Hex bolt M10x90 Sleeve Side roller Hex Bolt M12x65 Flat washer φ12 Roller Wheel Lock-Unlock handle Tension spring Lock-Unlock device Wheel bracket Hex Bolt M10x80 Cotter pinφ3.2 KSPLIT10 GASOLINE POWERED KINETIC LOG SPLITTER INSTRUCTION MANUAL... - Page 21 KSPLIT10 GASOLINE POWERED KINETIC LOG SPLITTER INSTRUCTION MANUAL...
- Page 22 KSPLIT10 GASOLINE POWERED KINETIC LOG SPLITTER INSTRUCTION MANUAL...
- Page 23 KSPLIT10 GASOLINE POWERED KINETIC LOG SPLITTER INSTRUCTION MANUAL...
- Page 24 KSPLIT10 GASOLINE POWERED KINETIC LOG SPLITTER INSTRUCTION MANUAL...
- Page 25 KSPLIT10 GASOLINE POWERED KINETIC LOG SPLITTER INSTRUCTION MANUAL...
- Page 26 KSPLIT10 GASOLINE POWERED KINETIC LOG SPLITTER INSTRUCTION MANUAL...
- Page 27 KSPLIT10 GASOLINE POWERED KINETIC LOG SPLITTER INSTRUCTION MANUAL...
- Page 28 KSPLIT10 GASOLINE POWERED KINETIC LOG SPLITTER INSTRUCTION MANUAL...
- Page 29 KSPLIT10 GASOLINE POWERED KINETIC LOG SPLITTER INSTRUCTION MANUAL...
- Page 30 KSPLIT10 GASOLINE POWERED KINETIC LOG SPLITTER INSTRUCTION MANUAL...
- Page 31 KSPLIT10 GASOLINE POWERED KINETIC LOG SPLITTER INSTRUCTION MANUAL...
- Page 32 KSPLIT10 GASOLINE POWERED KINETIC LOG SPLITTER INSTRUCTION MANUAL...
-
Page 33: Emission Control System Warranty
Buffalo Corp as soon as the problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days. If you have any questions regarding your warranty rights and responsibilities, you should contact Buffalo Corp customer service representative at 1-866-460-9436 or email info@buffalotools.com KSPLIT10 GASOLINE POWERED KINETIC LOG SPLITTER INSTRUCTION MANUAL... - Page 34 Buffalo Corp will not be liable to warrant failures of warranted parts caused by the use of a non-exempted add-on or modifed part. (11) The manufacturer issuing the warranty shall provide any documents that describe that manufacturer’s warranty procedures or policies within five working days of request by the Air Resources Board. KSPLIT10 GASOLINE POWERED KINETIC LOG SPLITTER INSTRUCTION MANUAL...
-
Page 35: Emission Warranty Parts List
(a) Purge valves (b) Carbon canister (c) canister Mounting Brackets (d) Fuel Cap (e) Fuel Tank (7) Miscellaneous items used in above systems including: (a) Switches (b) hoses, belts connectors, and assemblies (8) Air injection system (a) Pulse valve KSPLIT10 GASOLINE POWERED KINETIC LOG SPLITTER INSTRUCTION MANUAL... - Page 36 2017/11 KSPLIT10 GASOLINE POWERED KINETIC LOG SPLITTER INSTRUCTION MANUAL...
