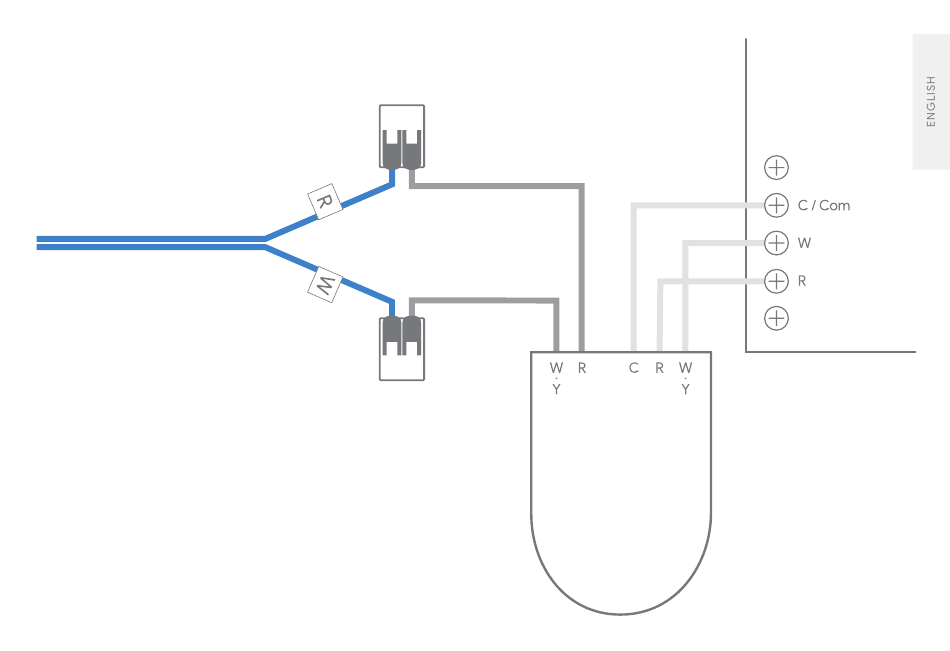

7. Install the power connector
B. Heating-only system
Thermostat wires
Your system may have extra wires,
like a G wire (to the thermostat).
Keep them connected.
Properly terminate any loose wires
Optional: Use the sticky pad to attach
the power connector to the panel
16
17
