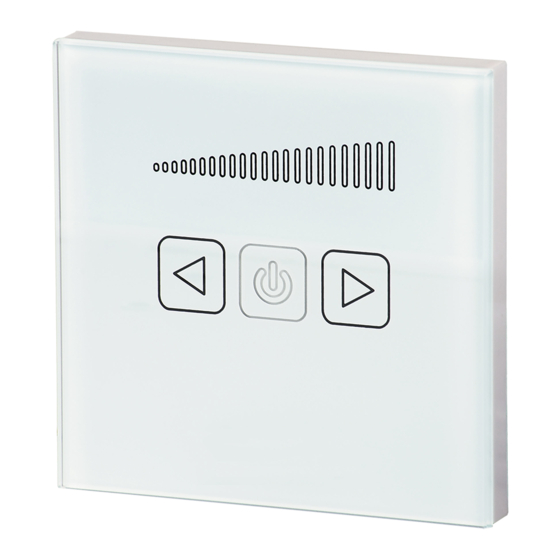

Sensor speed controller
SRS-1
DESCRIPTION
The speed controller is equipped with a sensitive sensor panel made of hardened glass, with the
button
and two buttons for speed control from minimum (
TECHNICAL DATA
Power supply voltage [V/Hz]
Maximum load current [A]
Cable cross section [mm
2
Temperature range [°C]
Humidity range [%]
Service life
Ingress Protection Rating
Weight [g]
MOUNTING
WARNING!
Make sure that the speed controller is not damaged. Do not operate a damaged speed controller! Do not install the speed controller on an
uneven surface! Do not apply excessive forces to avoid the product deformation.
Mounting sequence of the sensor speed controller:
Unfasten gently the front panel latches of the speed controller.
Unfasten gently the front panel latches of the speed controller.
Route the cable in the wall to the panel mounting place.
Attach the back panel to the wall or in the mounting box through the fastening openings.
Install the front panel on the latches.
OVERALL AND CONNECTING DIMENSIONS
V95EN-02.indd 1
]
Sensor speed controller mounting
86
Speed controller outline drawing
) to maximum value (
).
230 / 50-60
1
from 0,35 up to 1
from -10 up to +45
5-80 (no condensation)
100 000 switching operations
IP 30
138
31
21
11
R1,5
58
OUT
OUT
OUT
OUT
IN
L4
L3
L2
L1
L
