2. PL-300 DWDM-1M-8W-1C-2F:
Single passive optical MUX/DEMUX module with eight wavelengths

The MUX/DEMUX module has an additional channel for the management

OSC channel
One COM port with dual fiber


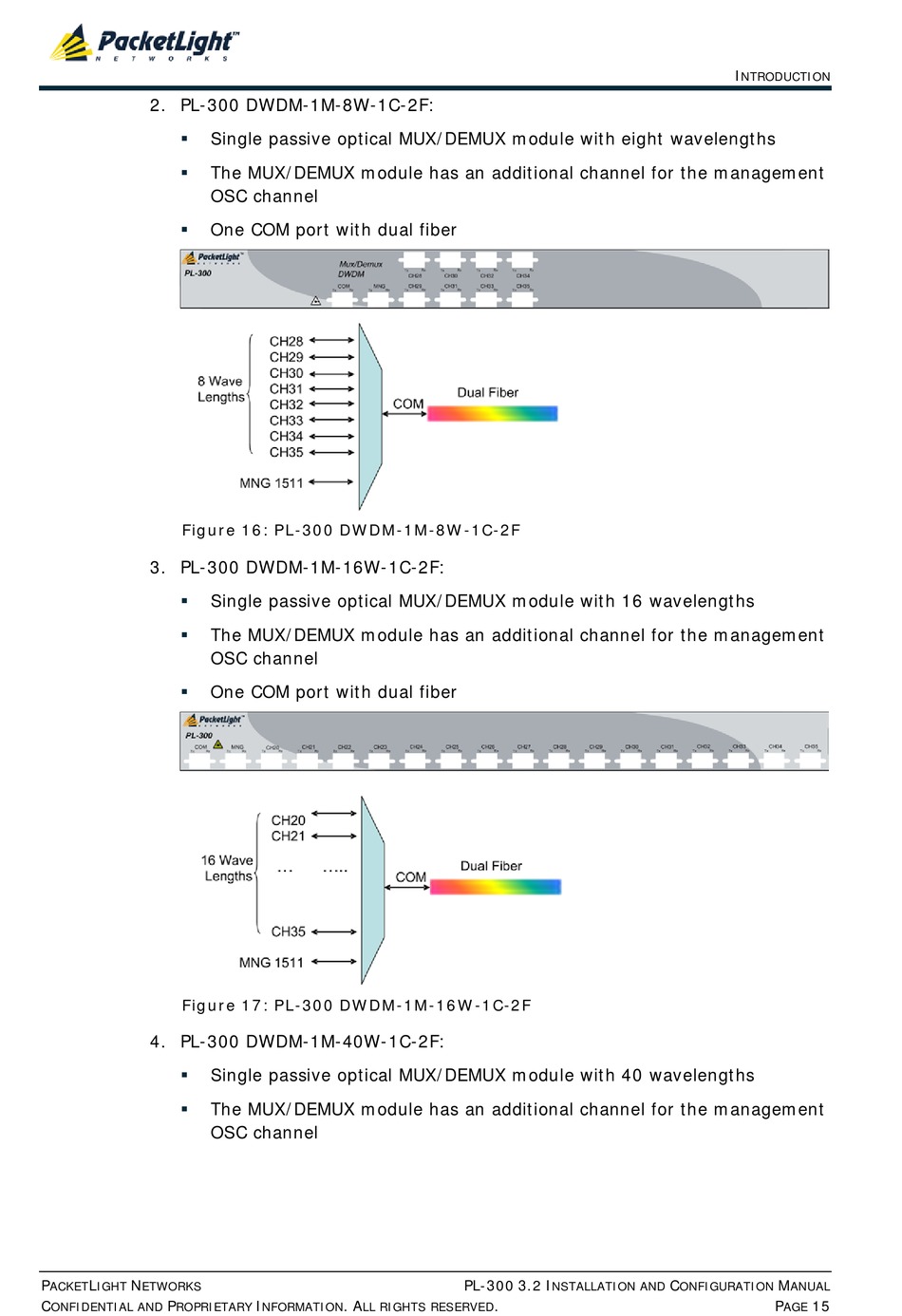

Figure 16: PL-300 DWDM-1M-8W-1C-2F

3. PL-300 DWDM-1M-16W-1C-2F:
Single passive optical MUX/DEMUX module with 16 wavelengths

The MUX/DEMUX module has an additional channel for the management

OSC channel
One COM port with dual fiber


Figure 17: PL-300 DWDM-1M-16W-1C-2F

4. PL-300 DWDM-1M-40W-1C-2F:
Single passive optical MUX/DEMUX module with 40 wavelengths

The MUX/DEMUX module has an additional channel for the management

OSC channel
