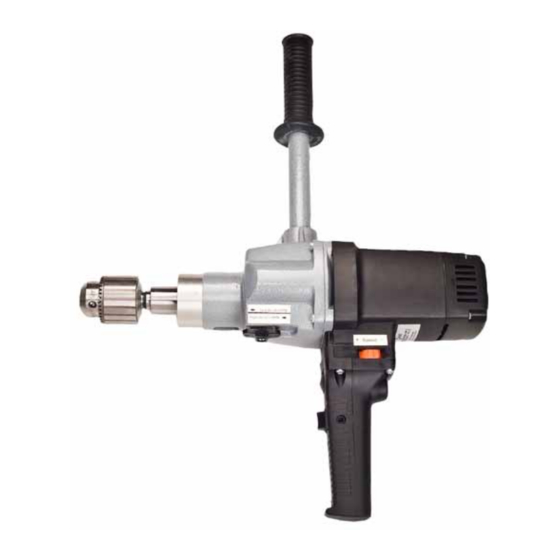

- Page 1 Electric Torque Motor 110 or 220 Volt - Model: 447000 Tube & Pipe Cleaners Tube Testers Tube Plugs Tube Removal Tube Installation Operating and Maintenance Instructions www.elliott-tool.com...
- Page 2 The Elliott 99300 Series Electric Rolling Motor may be used with or without the Elliott Model ELC110220 Electronic Torque Controller to expand tubes in the following types of equipment:...
- Page 3 To reduce the risk of injury, everyone using, installing, repairing maintaining, changing accessories on, or working near this tool MUST read and understand these instructions before performing any such task. Elliott Tool Technologies mission is “To be recognized by our customers as the world’s best provider of application solutions”.
- Page 4 12. Always disconnect the tool from the power source before making any adjustments to tool accessories connected to the tool. 13. Prevent body contact with grounded surfaces such as pipes and other structures. PTTC Series Cutter Motor...
- Page 5 3. After 300 hours use of operation, the carbon brushes have to be checked by a qualified technician. If they are .196” (5.0mm), they must be replaced by new, original brushes. The new brushes must be run in by a 20 minute idle run of the tool. PTTC Series Cutter Motor...
- Page 6 447000 Replacement Parts PTTC Series Cutter Motor...
- Page 7 Self Tapping Screw 40-80200606 Fitting Spring 40-7152B610 End Shield 40-80201326 Locking Ring 40-80201333 Safety Ring 28/1.2 Handle, Complete, 40-80410032 Ball Bearing 40-71411590 Additional 40-80201320 Safely Ring 40-71540606 Pressure Disk 40-80201292 Screw 4.2x16 40-7152B265 Grease Chamber 40-80420110 Needle Sleeve PTTC Series Cutter Motor...
- Page 8 Contact Us Elliott Tool offers a complete line of precision tube tools to meet your needs. Contact us or your local support. Locally Supported By: Elliott Tool Technologies, Ltd. 1760 Tuttle Avenue Dayton, Ohio 45403-3428 Phone: +1 937 253 6133 • +1 800 332 0447 www.elliott-tool.com/support...
