Summary of Contents for Spetrotec iWatcher
- Page 1 User Guide...
-
Page 2: Table Of Contents
Table of Contents General Description ......... . Benefits . -
Page 3: General Description

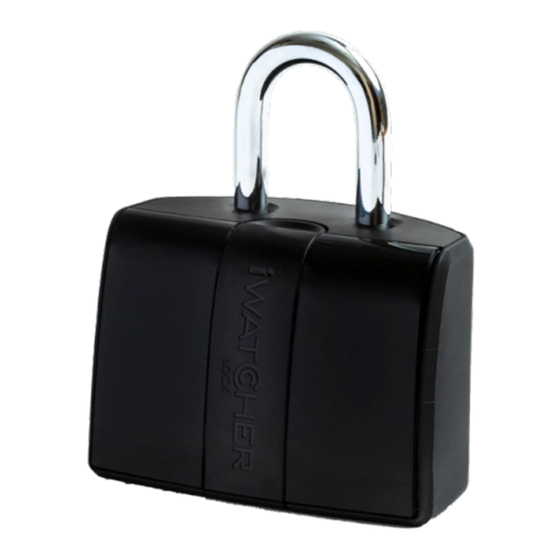

General Description The iWatcher LOCK is a game changer. The lock is not only capable of locking a property, it also informs the owner of the property about break-in attempts. smart lock provides physical locking of the property and sends... - Page 4 The iWatcher LOCK is the ultimate solution for protecting, tracking, and controlling properties. The lock was developed for logistics and security purposes, in a wide variety of uses: containers, gates, warehouses and shops, motorcycles, remote sites such as cellular sites, heavy equipment, and trailers.
-
Page 5: Benefits
Benefits Security and monitoring over a long period of time, without charging or replacing batteries. Real-time alerts to a mobile phone. Receipt of accurate location in each alert. Quality locking mechanism. Suitable for harsh environmental conditions. Convenient and user-friendly. -
Page 6: Uses
Uses The iWatcher LOCK is the ultimate solution for monitoring and controlling Containers Gates Warehouses and Shops Motorcycles Remote sites Heavy / Expensive equipment Trailers... -
Page 7: What's In The Kit
What's in the kit? The kit includes the following items: The iWatcher LOCK 2 Keys + a code card to duplicate additional keys 2 batteries A User guidee... -
Page 8: Battery Replacement
Battery Replacement 1. Insert the key and rotate to unlock the shackle from the lock. Pull out the shackle and then remove the key. 2. Open the lock cover- Press the top and bottom buttons, at the same time and pull the cover sidewise. - Page 9 3. Remove the lock cover. 4. Replace the batteries on both sides of the unit, according to the drawing. 5. Connect all parts back and close the unit.
-
Page 10: Configuring Sms Recipients
4 commas (see examples on the next page). The mobile number should begin with a + followed by the country code. Send the SMS to the iWatcher LOCK's number (appears on the micro SIM card attached to the kit). - Page 11 Note! Commands, such as configuring the SMS recipients, will be registered by the lock only when it is active (i.e. not in sleeping mode). If the lock is available, it should be unlocked in order to activate it; if the lock is in a different location, it will activate within 24 hours with its "Alive"...
- Page 12 Command for three SMS recipients: ;<LOCK>NUM=,+972540000000,+972541111111,+972542222222,; Command for two SMS recipients: ;<LOCK>NUM=,+972540000000,+972541111111,,; Command for one SMS recipient: ;<LOCK>NUM=,+972540000000,,,;...
-
Page 13: Operational Notes
Operational Notes 1. Daily status alerts -the Lock will send an " Alive" notification, after a defined "sleep" state (by default -every 24 hours). Meaning, that once the lock was "awoken" by an open/close/movement notification, the 24 hours timeline will start from such notification (until then, the lock will return to its "Sleep"... - Page 14 4. "GNSS" at the end of the message means, that the location of the iWatcher LOCK is calculated from GPS satellites, which will be the more accurate location. 5. "LBS" at the end of the message means, that the location of the Lock is calculated from LBS (Location-Based Service).
-
Page 15: Troubleshooting
Insert the batteries as explained on page 6. The lock location cannot be The iWatcher LOCK is not Move the Lock outside its curreent detected. Alerts appear but with receiving signals from the GPS location, and make sure that clear no location and date. - Page 16 Problem Probable Cause Solution The Lock was detected on the 1. The Sim card is not enabled for 1. Contact your mobile management platform but there outgoing SMS. provider to enable outgoing SMS. are no alerts via SMS. 2. SMS recipients were not 2.
-
Page 17: Technical Specifications
Technical Specifications Certificates GSM Quad-Band: 850 / 900 / 1800 / 1900 MHz CFR 47 FCC Class B GPRS Class 10 ETSI EN 301 489-1 V2.1.1 Class B GSM quad band antenna - 50 Ohm ETSI EN 301 489-17 V3.1.1 Class B Integrated micro SIM Card holder Communication Modes 3G - optional... - Page 18 Batteries Weight 2 AA 3.6V- 2,200 mAh 823 gr (without batteries) 873 gr (with batteries) Miscellaneous Enclosure Built in 3D G sensor PA6 + 45% GF Operating Temperature IP65 version (-40ºC to +85ºC) Alerts Dimensions Burglary attempt / movement Shackle Size: 50 mm / 100 mm Lock opened/closed Without Shackle and Key: Case opened/closed...
