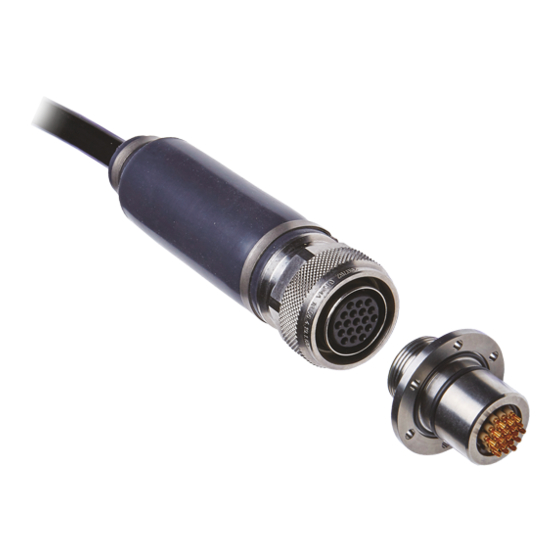

Summary of Contents for GISMA 10 Series

  • Page 2: Table Of Contents

    Document: replaces MV 2000-020, Handling instructions MV 2000-030 and for GISMA connectors MV 2005 - 011 HI – 2007 - 001 First issue: 15.07.2008 Copyright by: Rev.-Index: GISMA GmbH From: 29.07.2020 Content GENERAL ............................ 4 SCOPE ............................4 PROTECTION, HANDLING AND SHIPMENT ................4 UNPACKING ..........................
  • Page 3 Document: replaces MV 2000-020, Handling instructions MV 2000-030 and for GISMA connectors MV 2005 - 011 HI – 2007 - 001 First issue: 15.07.2008 Copyright by: Rev.-Index: GISMA GmbH From: 29.07.2020 7.7.1. General ........................33 7.7.2. Live Mate / Demate ....................33 Protection of receptacle’s pin contacts ..............

  • Page 4: General

    PROTECTION, STORAGE, SHIPMENT, UNPACKING, DEPLOYMENT & MAINTENANCE INSTRUCTIONS 1. GENERAL Thank you for purchasing a GISMA product. The information that follows is an overview of the protection, storage, shipment, unpacking, deployment and maintenance instructions for GISMA electrical and fibre optic products.

  • Page 5: Unpacking

    6. Jumper handling and mounting Jumper handling GISMA connectors can be delivered as part of the jumper assembly. All terminated connectors are delivered with dust caps for protecting the contacts and the insulator against damage and dust. These caps have to be removed before subsea usage.

  • Page 6: Deployment & Maintenance

    From: 29.07.2020 7. DEPLOYMENT & MAINTENANCE The following section details deployment and maintenance instructions for all GISMA connectors & cables, categorised by product type. Please refer to the appropriate section as listed below: 7.1. - Subsea connectors’ series 10 7.2. - Subsea connectors’ series 16 7.3.

  • Page 7: Live Mate / Demate

    7.1.4. Removal of Marine Growth and Calcareous Deposits To remove calcite growth topside or subsea from GISMA connectors, a solution of 50% Citric Acid is recommended. All seawater exposed elastomeric materials in GISMA connectors have been fully tested against 50% Citric Acid and are compatible for duration of 1 hour.

  • Page 8: Connector Handling

    Insulator greasing Before the initial coupling the front side of the socket connectors must be greased with GISMA-grease EK2 (part no.: GISMA-FETT EK2), to fill the conical seal cavities with grease (see drawing below). Greasing ensures that the two elastomer Insulators in the conical seals can slide perfectly into its final position and thus best seal.
  • Page 9 GISMA-FETT LP 430 (strongly recommended at stainless steel and titanium threads). Dirty connectors to be purged with GISMA foam cleaner (SCHAUMREINIGER). Allow three minutes to react. In case of strong dirt repeat the procedure. Then rinse with clean water.
  • Page 10 Series 10 plugs and receptacles are longitudinal watertight up to the specified pressure range (see dimensional drawings). Every receptacles and terminated plug for underwater applications will be pressure tested acc. Customer or GISMA specification. Hybrid connectors with coaxial and fibre optic contacts have to be tested with protective caps to prevent deposits from decreasing the connectors performance! ...

  • Page 11: Mounting Dimensions

    Document: replaces MV 2000-020, Handling instructions MV 2000-030 and for GISMA connectors MV 2005 - 011 HI – 2007 - 001 First issue: 15.07.2008 Copyright by: Rev.-Index: GISMA GmbH From: 29.07.2020 7.1.6. Mounting dimensions  Mounting hole for flange-receptacle Ø...

  • Page 12: Subsea Titanium Connectors Series 16

    Insulation Resistance test  High Voltage test  Continuity test Cable terminations can be performed on-site or offshore by GISMA trained personnel where the cable cannot easily be moved or transported. Each series 16 connector has been mated, Page 12 of 44...

  • Page 13: Live Mate / Demate

    7.2.4. Removal of Marine Growth and Calcareous Deposits To remove calcite growth topside or subsea from GISMA connectors, a solution of 50% Citric Acid is recommended. All seawater exposed elastomeric materials in GISMA connectors have been fully tested against 50% Citric Acid and are compatible for duration of 1 hour.

  • Page 14: Test Port

    API specifications require boot seals as additional sealing system for PBOF. Boot seals must match the wire diameter. Before applying the boot seal, a portion of GISMA grease EK-2 must be applied inside the boot seal by use of a syringe.
  • Page 15 Fill the oil reservoir entirely with oil by a syringe. Make sure the oil can’t drain until the hose system is completely filled with oil. GISMA will supply boot seal material specimen (Viton) for oil compatibility check on request. Page 15 of 44...

  • Page 16: Subsea Connectors Series 22

    Continuity test Cable terminations can be performed on-site or offshore by GISMA trained personnel where the cable cannot easily be moved or transported. Each GISMA connector is fitted with a pin or socket insulator which has been tested prior to despatch.

  • Page 17: Protection Of Receptacle's Pin Contacts

    7.3.4. Removal of Marine Growth and Calcareous Deposits To remove calcite growth topside or subsea from GISMA connectors, a solution of 50% Citric Acid is recommended. All seawater exposed elastomeric materials in GISMA connectors have been fully tested against 50% Citric Acid and are compatible for duration of 1 hour.

  • Page 18: Mounting Dimension

    Document: replaces MV 2000-020, Handling instructions MV 2000-030 and for GISMA connectors MV 2005 - 011 HI – 2007 - 001 First issue: 15.07.2008 Copyright by: Rev.-Index: GISMA GmbH From: 29.07.2020 7.3.6. Mounting dimension  Mounting hole for pressure hull penetrator Ø...

  • Page 19: Sealing Spare Parts

    Document: replaces MV 2000-020, Handling instructions MV 2000-030 and for GISMA connectors MV 2005 - 011 HI – 2007 - 001 First issue: 15.07.2008 Copyright by: Rev.-Index: GISMA GmbH From: 29.07.2020  Mounting dimensions of connector assembly (plugs, PHP and Endbells)
  • Page 20 Insulator greasing Before the initial coupling the front side of the socket connectors must be greased with GISMA-grease EK2 (part no.: GISMA-FETT EK2), to fill the conical seal cavities with grease (see drawing below). Greasing ensures that the two elastomer Insulators in the conical seals can slide perfectly into its final position and thus best seal.
  • Page 21 GISMA-FETT LP 430 (strongly recommended at stainless steel and titanium threads). Dirty connectors to be purged with GISMA foam cleaner (SCHAUMREINIGER). Allow three minutes to react. In case of strong dirt repeat the procedure. Then rinse with clean water.
  • Page 22 For assemblies, which will only be installed once, our experience shows the estimated lifetime may be double. For operating temperatures between +5°C to +40°C, longer lifetimes can be expected. Defective clamps to be replaced. The GISMA coaxial contacts must be protected to any pollution especially water / water pressure.  Pressure testing Series 22 plugs, receptacles and pressure hull penetrators are longitudinal watertight up to the specified pressure range (see dimensional drawings).

  • Page 23: Subsea Connectors Series 34

     Continuity test Cable terminations can be performed on-site or offshore by GISMA trained personnel where the cable cannot easily be moved or transported. Each series 34 connector has been mated, hydrostatically tested (applies to receptacles only) and electrically proven prior to despatch.

  • Page 24: Live Mate / Demate

    7.4.4. Removal of Marine Growth and Calcareous Deposits To remove calcite growth topside or subsea from GISMA connectors, a solution of 50% Citric Acid is recommended. All seawater exposed elastomeric materials in GISMA connectors have been fully tested against 50% Citric Acid and are compatible for duration of 1 hour.
  • Page 25 Thread greasing Lightly grease the locking threads of the receptacles, pressure hull penetrators and the through bulkhead receptacles e.g. with GISMA-FETT LP 430 (strongly recommended at stainless steel and titanium threads). Check to see if the plugs locking sleeve runs smoothly.

  • Page 26: Subsea Connectors Series 35

     Continuity test Cable terminations can be performed on-site or offshore by GISMA trained personnel where the cable cannot easily be moved or transported. Each series 35 connector has been mated, hydrostatically tested (applies to receptacles only) and electrically proven prior to despatch.

  • Page 27: Live Mate / Demate

    7.5.4. Removal of Marine Growth and Calcareous Deposits To remove calcite growth topside or subsea from GISMA connectors, a solution of 50% Citric Acid is recommended. All seawater exposed elastomeric materials in GISMA connectors have been fully tested against 50% Citric Acid and are compatible for duration of 1 hour.
  • Page 28 Thread greasing Lightly grease the locking threads of the receptacles, pressure hull penetrators and the through bulkhead receptacles e.g. with GISMA-FETT LP 430 (strongly recommended at stainless steel and titanium threads). Check to see if the plugs locking sleeve runs smoothly.

  • Page 29: Subsea Connectors Series 40

    Attenuation test Cable terminations can be performed on-site or offshore by GISMA trained personnel where the cable cannot easily be moved or transported. Each GISMA connector is fitted with a pin or socket insulator which has been tested prior to despatch.

  • Page 30: Protection Of Receptacle's Pin Contacts

    7.6.4. Removal of Marine Growth and Calcareous Deposits To remove calcite growth topside or subsea from GISMA connectors, a solution of 50% Citric Acid is recommended. All seawater exposed elastomeric materials in GISMA connectors have been fully tested against 50% Citric Acid and are compatible for duration of 1 hour.

  • Page 31: Cleaning Process For Ferrules

    O-ring must be greased. Fibre-optic and coaxial contacts must be kept absolutely free from grease to prevent losses. Dirty connectors to be purged with GISMA foam cleaner (SCHAUMREINIGER). Allow three minutes to react. In case of strong dirt repeat the procedure. Then rinse with clean water.
  • Page 32 After tightening the locking sleeve by hand, screw it onto the receptacle fitting using corresponding wrenches. If the locking sleeve is designed with a safety screw, tighten it. For defined clamping torque refer to GISMA document “Torque overview for series 10 / 22 / 35 / 40”.

  • Page 33: Subsea Connectors Series 42

    Attenuation test Cable terminations can be performed on-site or offshore by GISMA trained personnel where the cable cannot easily be moved or transported. Each GISMA connector is fitted with a pin or socket insulator which has been tested prior to despatch.
  • Page 34 7.7.4. Removal of Marine Growth and Calcareous Deposits To remove calcite growth topside or subsea from GISMA connectors, a solution of 50% Citric Acid is recommended. All seawater exposed elastomeric materials in GISMA connectors have been fully tested against 50% Citric Acid and are compatible for duration of 1 hour.
  • Page 35 O-ring must be greased. Fibre-optic and coaxial contacts must be kept absolutely free from grease to prevent losses. Dirty connectors to be purged with GISMA foam cleaner (SCHAUMREINIGER). Allow three minutes to react. In case of strong dirt repeat the procedure. Then rinse with clean water.
  • Page 36 After tightening the locking sleeve by hand, screw it onto the receptacle fitting using corresponding wrenches. If the locking sleeve is designed with a safety screw, tighten it. For defined clamping torque refer to GISMA document “Torque overview for series 10 / 22 / 35 / 40”.
  • Page 37 This could lead to damage to the seals and insulation within the socket contacts. Plugs do not require full pressure watertight protective cap for protection. GISMA advise the fitting of POM caps to protect plugs against marine growth. It is good practice to always fit the protective cap when a connector is unmated topside prior to deployment to provide mechanical protection.

  • Page 38: Protection Of Receptacle Contact Pins

    7.8.4. Removal of Marine Growth and Calcareous Deposits To remove calcite growth subsea or topside from GISMA connectors, a solution of 50% Citric Acid is recommended. All seawater exposed elastomeric materials in GISMA connectors have been fully tested against 50% Citric Acid and are compatible for a duration of 1 hour.
  • Page 39 Document: replaces MV 2000-020, Handling instructions MV 2000-030 and for GISMA connectors MV 2005 - 011 HI – 2007 - 001 First issue: 15.07.2008 Copyright by: Rev.-Index: GISMA GmbH From: 29.07.2020  Post Mating Checks Full engagement will be achieved, if the over-all spring lies back close to the outer keyway.

  • Page 40: Stab Plate Connectors

    Document: replaces MV 2000-020, Handling instructions MV 2000-030 and for GISMA connectors MV 2005 - 011 HI – 2007 - 001 First issue: 15.07.2008 Copyright by: Rev.-Index: GISMA GmbH From: 29.07.2020 7.8.6. Stab Plate Connectors  Compliance One half of a stab mate connector pair must be allowed to float so that misalignment tolerances can be accommodated.

  • Page 41: Rov Connectors

     Mating The ROV mateable plug is assembled with GISMA locking system including 3 clamps and an over-all spring and a GISMA ROV handle (e.g. T-bar, fishtail). For mating just push the plug into the receptacle.  Post Mating Checks...
  • Page 42 Document: replaces MV 2000-020, Handling instructions MV 2000-030 and for GISMA connectors MV 2005 - 011 HI – 2007 - 001 First issue: 15.07.2008 Copyright by: Rev.-Index: GISMA GmbH From: 29.07.2020  De-Mating De-mating is achieved by a straight pull on the ROV handle sufficient to release the latching mechanism.

  • Page 43: Mounting Hole For Flange-Receptacle

    Document: replaces MV 2000-020, Handling instructions MV 2000-030 and for GISMA connectors MV 2005 - 011 HI – 2007 - 001 First issue: 15.07.2008 Copyright by: Rev.-Index: GISMA GmbH From: 29.07.2020 7.8.8. Mounting hole for flange-receptacle Page 43 of 44...
