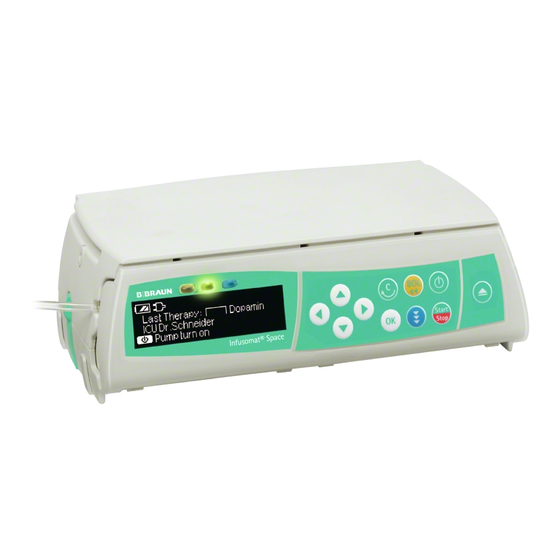

Braun Infusomat Space Quick Reference Manual

Nfusion pump system 2nd generation software
Hide thumbs Also See for Infusomat Space:

Advertisement

Quick Links

Download this manual
Quick
Reference
Guide
Infusomat
Space
®
Infusion Pump System
2
Generation Software
nd

Advertisement

loading
Need help?

Need help?

Do you have a question about the Infusomat Space and is the answer not in the manual?

Questions and answers

flor g
May 23, 2025

"unable to confirm pump start", what is the cause?

0

Subscribe to Our Youtube Channel

Related Manuals for Braun Infusomat Space

Summary of Contents for Braun Infusomat Space

  • Page 1 Quick Reference Guide Infusomat Space ® Infusion Pump System Generation Software...
  • Page 2 NAVIGATION Programming through screens: The pump screens will always indicate what keys to press. Entering values: Use the left and right arrow keys to move the cursor so the desired numerical value is highlighted. Use the up and down arrow keys to increase or decrease the number.
  • Page 3 OPEN DOOR AND LOAD IV LINE 1. Press to power on. 2. Press door open key . Respond to prompt and press to open door. CAUTION: Keep the roller clamp closed while inserting IV line. 3. (1) Load IV line from right to left. Insert the two hole clip.

  • Page 4: Primary Infusion

    6. If priming is activated, press to prime on the pump. 7. Note prompt to “Disconnect IV line from patient before priming”, press to confirm. 8. Respond to “Priming stopped” message by confirming with . Respond to “Repeat priming” prompt with for “Yes”...
  • Page 5 10. Use to move to the digit to be programmed. NOTE: may be used to clear existing values. 11. Use to program new values. 12. Press to confirm value. 13. If value is outside soft limits, respond to prompt with for “Yes”...
  • Page 6 TITRATION NOTE: The doserate/rate may be titrated while the pump is running. 1. Press to open editor. 2. Program desired value using . Press confirm which initiates new doserate/rate. CHANGE WEIGHT, BSA, VTBI AND TIME NOTE: Changing VTBI or Time may change infusion rate/ dose depending on infusion mode.

  • Page 7: Secondary Infusion

    SECONDARY INFUSION NOTE: Prime SECondary IV line manually, close roller clamp and connect to PRIMary IV line at needleless port ABOVE the pump. 1. Stop PRIMary infusion by pressing 2. Scroll to and select “SECondary” by using 3. Four sub-menus will be displayed: •...
  • Page 8 NOTE: The SECondary bag must be hung at least 8 inches above the PRIMary, measured from the bottom of the SECondary bag to the top of fluid level in the PRIMary. NOTE: If SECondary rate exceeds 300 ml/hr clamp off PRIMary to prevent concurrent flow.
  • Page 9 LOADING DOSE 1. Press to answer yes to loading dose prompt. 2. Enter loading dose amount using and confirm with 3. Enter loading dose time using arrow keys confirm with 4. Press to access doserate/rate editor to program continuous infusion. 5.
  • Page 10 NOTE: The pump will automatically convert back to the continuous infusion when the bolus is complete. 6. If bolus is stopped by pressing , press confirm prompt with amount delivered of total programmed. 7. Respond to prompt to deliver remaining bolus with for “Yes”...
  • Page 11 CHANGE CARE UNIT 1. From the Home screen, scroll to “Change Care Unit” using and select with NOTE: Care Unit may be changed while the pump is infusing or stopped. 2. Scroll to desired Care Unit using and select with 3.
  • Page 12 DOSERATE CALCULATION The Doserate Calculator may be used to calculate a doserate for a medication that is not in the drug library. No dose limits apply. 1. To access the Doserate Calculator, go to the Home screen and scroll to “Options” menu. 2.
  • Page 13 4. Press down the green opening lever completely until it locks in place and yellow triangle light is flashing. Remove IV line from right to left. 5. Insert new IV line following steps in “Open Door and Load IV Line” section above. END INFUSION AND POWER OFF 1.
  • Page 14 WIRELESS DRUG LIBRARY UPLOAD 1. Observe alternating with on the top line of the pump display when a new Drug Library is available. 2. Press to stop the infusion. Follow instructions above under “End Infusion and Power Off” to power off. 3.
  • Page 15 Air bubble/accumulated air - Respond “Yes” or “No” to prompt for priming to clear the air. If “Yes” is selected to prime IV line, respond to prompt to disconnect IV line from patient. Danger of Free Flow - Anti-free flow clip is not prop- erly inserted.
  • Page 16 UNDERSTANDING PUMP SYMBOLS Home screen, contains all menu options Primary infusion is programmed and/or running Secondary infusion is programmed and/or running Secondary, Dose Over Time infusion is programmed and/or running Pressure indicator, Top line: Current pressure level, Bottom Line: Set pressure limit Pump is locked Pump in Standby Infusion is within the range of the lower...
  • Page 17 No hard or soft limits are set Battery status Connected to power/battery status Scrolling arrows indicate pump is infusing New drug library file is available Wireless is connected Wireless is not connected Wireless is turned off 16 16...
  • Page 18 For clinical and technical support, call 800-854-6851 or visit www.BBraunUSA.com See operator’s manual for complete instructions for use. Rx only. ©2016 B. Braun Medical Inc. All rights reserved. IS214 RTS3 5/16...
