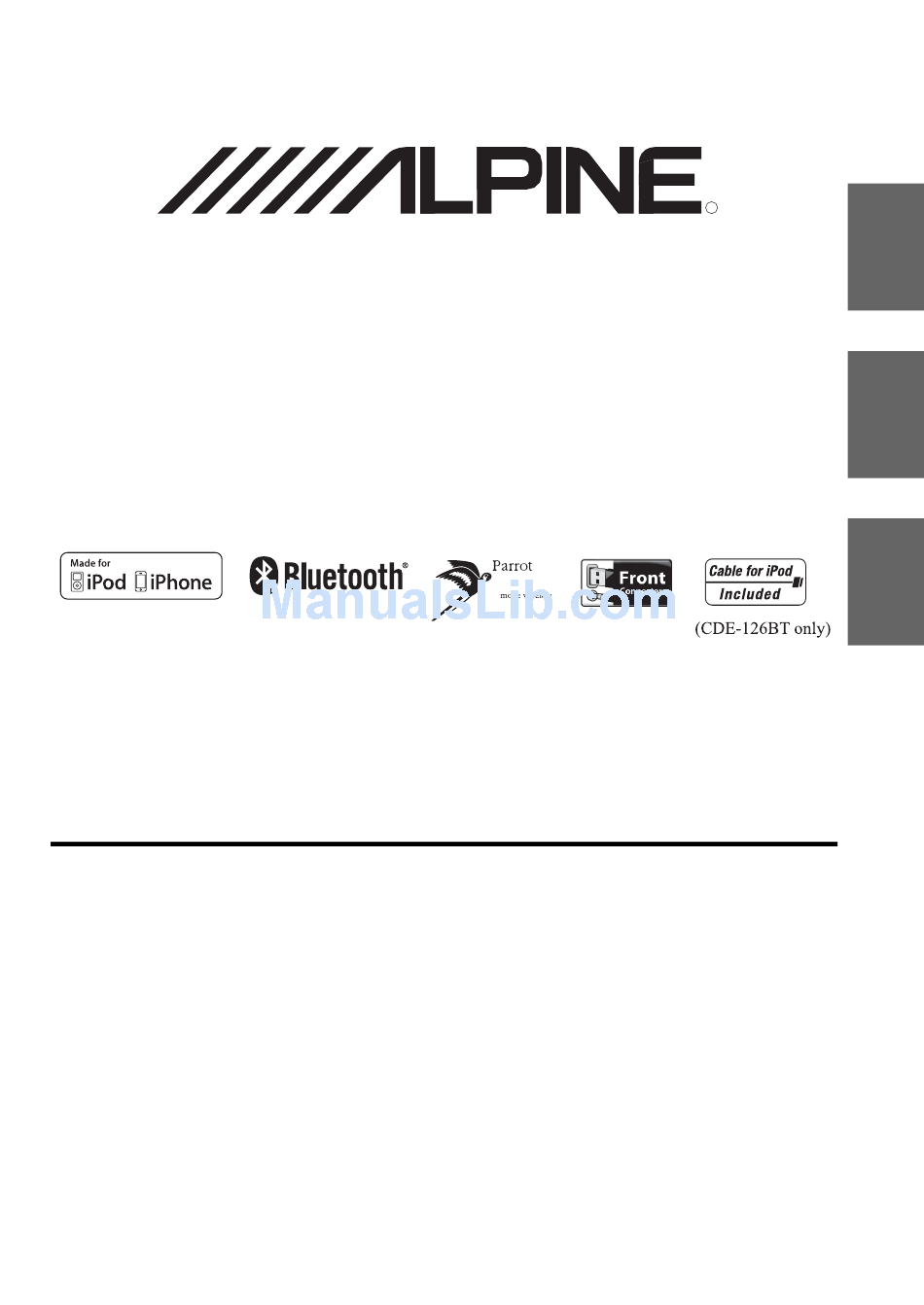

  • Page 1 Ontario M3J 2M9, Canada Phone 1-800-ALPINE-1 (1-800-257-4631) Please read before using this equipment. Veuillez lire avant d’utiliser cet appareil. Léalo antes de utilizar este equipo. ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD. 161-165 Princes Highway, Hallam Victoria 3803, Australia Phone 03-8787-1200 ALPINE ELECTRONICS GmbH Wilhelm-Wagenfeld-Str.

  • Page 3: Table Of Contents

    Contents Operating Instructions WARNING WARNING ... 5 CAUTION ... 5 PRECAUTIONS ... 5 CAUTION ... 7 Getting Started Accessory List ... 8 Turning Power On and Off ... 8 Detaching and Attaching the Front Panel ... 8 Initial System Start-Up ... 8 Adjusting Volume ...
  • Page 4 BT Hands-Free Calling Setup Before Using ... 19 About BLUETOOTH ... 19 Before Using Hands-Free Function ... 19 How to connect to a BLUETOOTH compatible device (Pairing) ... 20 BLUETOOTH SETUP ... 20 BLUETOOTH Setup Operation ... 20 Setting the BLUETOOTH Device ... 20 Setting the Search Mode ...

  • Page 5: Operating Instructions

    HALT USE IMMEDIATELY IF A PROBLEM APPEARS. Failure to do so may cause personal injury or damage to the product. Return it to your authorized Alpine dealer or the nearest Alpine Service Center for repairing. PRECAUTIONS Product Cleaning Use a soft dry cloth for periodic cleaning of the product.

  • Page 6: Installation Location

    Using (Bumps) such accessories can cause the disc to be out of standard specifications and may create operational problems. We recommend not using these accessories on discs played in Alpine CD players. Transparent Sheet CORRECT...

  • Page 7: Caution

    • Artist/song name, etc., can be displayed, however characters may not be correctly displayed. CAUTION Alpine accepts no responsibility for lost data, etc., even if data, etc. is lost while using this product. On Handling USB Memory • To prevent malfunction or damage, note the following points.

  • Page 8: Getting Started

    Getting Started Rotary encoder SOUND/SETUP SOURCE/ (Release) /ENT MUTE Accessory List • Head unit ...1 • Power cable ...1 • Interface cable for iPod (CDE-126BT only) ...1 • Microphone (4m)...1 • Mounting sleeve...1 • Carrying case ...1 • Bracket key...2 •...

  • Page 9: Setting Time

    • If no operation is performed for 60 seconds, the unit will return to normal mode automatically. Controllable with Remote Control This unit can be controlled with an optional Alpine remote control. For details, consult your Alpine dealer. Point the optional remote control transmitter at the remote-control sensor.

  • Page 10: Presetting Stations Automatically

    The following table shows which discs can be played on which models. CD-TEXT CDE-126BT CDE-125BT Insert a disc with the label side facing up. The disc will be pulled into the unit automatically, and the “ ” indicator lights up .

  • Page 11: Repeat Play

    ” indicator lights up when a disc is inserted. • Three-inch (8 cm) CDs cannot be used. CDE-126BT (compatible with MP3/WMA/AAC)/ CDE-125BT (compatible with MP3): • The CD-player can play discs containing audio data, MP3 data, WMA data and AAC data.

  • Page 12: Searching For Cd Text

    Searching for CD Text On discs utilizing CD Text, songs can be searched and played by using their recorded titles. For discs without CD Text, searches are made using the track numbers associated with each song. Press /ESC during play. This will set the search mode, and the “...
  • Page 13 Supported playback sampling rates and bit rates Sampling rates: 48 kHz, 44.1 kHz, 32 kHz, 24 kHz, 22.05 kHz, 16 kHz, 12 kHz, 11.025 kHz, 8 kHz Bit rates: 8 - 320 kbps Sampling rates: 48 kHz, 44.1 kHz, 32 kHz Bit rates: 48 - 192 kbps Sampling rates: 48 kHz, 44.1 kHz, 32 kHz, 24 kHz, 22.05 kHz,...

  • Page 14: Sound Setting

    Sound Setting Rotary encoder (AUDIO/LOUD) SOURCE/ BAND /ESC SOUND/SETUP Adjusting Subwoofer Level/Bass Level/ Treble Level/Balance (Between Left and Right)/Fader (Between Front and Rear)/ Defeat Press Rotary encoder (AUDIO) repeatedly to choose the desired mode. Each press changes the mode as follows: SUBWOOFER* BASS LEVEL FADER...

  • Page 15: Adjusting The High Pass Filter

    Setting the Treble Level Turn the Rotary encoder to select the desired treble level (–7~+7). You can emphasize the treble level. Press and hold /ESC for at least 2 seconds to return to normal mode. • If no operation is performed for 15 seconds, the unit will return to normal mode automatically.

  • Page 16: Displaying Time

    About the indication display When displaying Text, the following indicators are lit according to the mode. MP3/WMA/AAC/ Indicator/ CD Mode USB AUDIO Mode Mode Folder Name* –– being displayed Artist Name* –– being displayed Text (Disc Album Name* Name* ) being being displayed displayed Text (Track...

  • Page 17: Setup

    SETUP You can flexibly customize the unit to suit your own preferences and usage. From the SETUP menu, Sound Customizing, Visual Customizing, etc., can be modified. SOURCE/ Rotary encoder (AUDIO) SOUND/SETUP /MUTE /ENT Use steps 1 to 4 to select one of the SETUP modes to modify.

  • Page 18: Connecting To External Amplifier

    In this setting, the head unit’s internal amplifier is turned OFF and cannot drive speakers. CDE-126BT: Amplifier Amplifier CDE-125BT: Amplifier POW ON: The speakers are driven by the built-in amplifier. SPEAKER RIGHT FRONT SPEAKER...

  • Page 19: Setting The Aux+ Setup Mode

    • Proper function of this unit with all BLUETOOTH compatible devices is not guaranteed. For handling of the BT compatible device, consult your ALPINE dealer or ALPINE website. • Depending on the surroundings, BLUETOOTH wireless connection may be unstable.

  • Page 20: How To Connect To A Bluetooth Compatible Device (Pairing)

    How to connect to a BLUETOOTH compatible device (Pairing) For details on the control from a BLUETOOTH compatible device, refer to the Owner’s Manual of the BLUETOOTH compatible device. Set a BLUETOOTH connection from a BLUETOOTH compatible device. The PIN code (“0000”) is displayed on the connected unit.

  • Page 21: Displaying The Phone Service Provider Name

    Owner’s Manual are based upon the latest available information and are believed to be accurate at the time of printing. Alpine reserves the right to change or modify any information or specifications without notice or obligation. Answering a Call Incoming calls are announced by the received call ring tone and a displayed message (PHONE).

  • Page 22: Calling

    Calling Call History is recorded for the last dialed/received/missed calls. There are various ways of making calls based on the “Calling.” The following steps 1 to 5 are common to the various ways of making these calls. For details, refer to each individual category for making calls. Press The outgoing method list is displayed.

  • Page 23: Adjusting The Volume When Receiving A Call

    If you connect a USB memory containing MP3/WMA/AAC, the following table shows which type of files can be played on which models. CDE-126BT CDE-125BT Press SOURCE/ to switch to the USB AUDIO mode. The mode will change every time the button is pressed.

  • Page 24: 4 -En

    Cable (Sold Separately) An iPod/iPhone can be connected to this unit by using the proprietary ALPINE FULL SPEED Connection Cable (KCE-433iV) (Supplied, CDE-126BT only). When this unit is connected by using the cable, the controls on the iPod are not functional.

  • Page 25: Playback

    Playback Press SOURCE/ to switch to the iPod mode. TUNER DISC USB AUDIO iPod* AUX* TUNER Displayed only when the iPod/iPhone is connected and AUX+ SETUP is set to OFF, refer to “Setting the AUX+ SETUP Mode” (page 19). Displayed only when the AUX+ SETUP is set to ON, refer to “Setting the AUX+ SETUP Mode”...

  • Page 26: Direct Search Function

    Direct Search Function The unit’s direct search function can be used to search for an album, song, etc., more efficiently. In PLAYLIST/ARTIST/ALBUM/SONG/ PODCAST/GENRE/COMPOSER/AUDIOBOOK mode, you can quickly target any song. In the search mode, press any one of the preset buttons (1 through 6) to quickly skip over a designated percent of your song content.

  • Page 27: Repeat Play

    This guide will help you isolate the problem if the unit is at fault. Otherwise, make sure the rest of your system is properly connected or consult your authorized Alpine dealer. Basic No function or display.

  • Page 28: Indication For Cd Player

    - Remove the disc by following these steps: Press the button again for at least 2 seconds. If the disc still does not eject, consult your Alpine dealer. • Mechanism error. 1) Press the button and eject the CD.

  • Page 29: Indication For Usb Memory

    Indication for USB memory • Abnormal current is run to the USB connector device (an error message may be displayed if the USB device that is not compatible with the unit is connected). USB memory is a malfunction or it is shorted. - Connect another USB memory.

  • Page 30: Specifications

    Specifications FM TUNER SECTION Tuning Range 87.7-107.9 MHz Mono Usable Sensitivity 9.3 dBf (0.8 µV/75 ohms) 50 dB Quieting Sensitivity 13.5 dBf (1.3 µV/75 ohms) Alternate Channel Selectivity 80 dB Signal-to-Noise Ratio 65 dB Stereo Separation 35 dB Capture Ratio 2.0 dB AM TUNER SECTION Tuning Range...

  • Page 31: Installation And Connections

    (e.g. on-board computer). Do not tap into these leads to provide power for this unit. When connecting the CDE-126BT/CDE-125BT to the fuse box, make sure the fuse for the intended circuit of the CDE-126BT/CDE-125BT has the appropriate amperage. Failure to do so may result in damage to the unit and/or the vehicle.

  • Page 32: Installation

    • For the screw marked “* mounting location. Connect each input lead coming from an amplifier to the corresponding output lead coming from the left rear of the CDE-126BT/CDE-125BT. Connect all other Detachable Front leads of the CDE-126BT/CDE-125BT according to Panel details described in the CONNECTlONS section.

  • Page 33: Connections

    To iPod/iPhone Antenna To power antenna To amplifier Not used To the instrument cluster illumination lead Battery Front Right Rear Right Rear Left Front Left Speakers Front Left Amplifier Front Right CDE-126BT: Rear or Subwoofers* Amplifier CDE-125BT: Front or Subwoofers*...
  • Page 34 • Connect the ground lead securely to a bare metal spot (remove any paint, dirt or grease if necessary) of the car chassis. • If you add an optional noise suppressor, connect it as far away from the unit as possible. Your Alpine dealer carries various noise suppressors, contact them for further information.

  • Page 35: Limited Warranty

    ALPINE ELECTRONICS OF AMERICA, INC. AND ALPINE OF CANADA INC. (“Alpine”), are dedicated to quality craftsmanship and are pleased to offer this Warranty. We suggest that you read it thoroughly. Should you have any questions, please contact your Dealer or contact Alpine at one of the telephone numbers listed below.

  • Page 36: About The Rules Of Bluetooth Electromagnetic Radiation Regulation

    Av, Urbina No. 14, Colonia Industrial Mexico City, MEXICO 53370 (52155) 5107-0447 Hecho en China Fabricado en China 12V C.C. Negativo a chasis CDE-125BT ® MP3 CD RADIO CON BLUETOOTH Ampliaudio S.A. de C.V. Av, Urbina No. 14, Colonia Industrial...
