Elkron CT06 Installation Manual

Pstn telephone communicator
Hide thumbs Also See for CT06:
Table of Contents

Advertisement

Quick Links

Download this manual

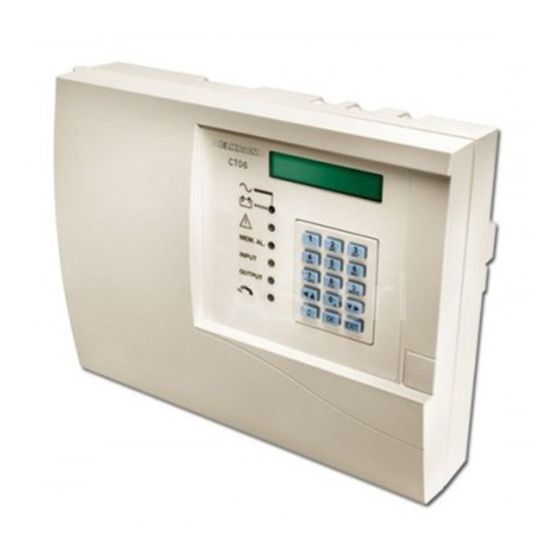

CT06
PSTN telephone communicator
LBT80411
DS80CT49-004B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CT06 and is the answer not in the manual?

Questions and answers

Related Manuals for Elkron CT06

Summary of Contents for Elkron CT06

  • Page 1 CT06 PSTN telephone communicator LBT80411 DS80CT49-004B...

  • Page 2: Table Of Contents

    7.11 Telephone number association / inputs ........31 7.12 Telephone number association / failure ........32 Technical specifications .............. 33 Programming Tables ..............34 Association of phone numbers / networks / messages ....34 Programming telephone networks ..........34 Inputs and outputs programming ..........35 CT06...

  • Page 3: General Characteristics

    1.0 General characteristics This manual contains instructions for installing and using Elkron communicators model CT06. • 3 inputs - 2 programmable alarm inputs - 1 TC input • 5 outputs: - 2 electrical FAILURE outputs - 3 outputs which can be switched by DTMF commands or local keypad: 2 electrical and 1 relay •...

  • Page 4: Preliminary Installation Activities

    • Remove the electronic board from the supports to safely handle the plastic box only without the risk of damaging the boards. • Fasten the box to the wall with the devices provided (see figure below). box bottom WALL FASTENING HOLES WIRE PASSAGE ARRANGEMENTS CT06...

  • Page 5: Product Components

    EXIT key used to quit the programming menus Key for accessing the SYSTEM STATUS MENU (in combination with number keys) and for deleting telephone numbers OK key used to confirm parameter modifications during programming and to start listening to and recoding messages CT06...

  • Page 6: Description Of Leds And Buttons

    U2 .... failure electrical output U3 .... switching electrical output U4 .... switching electrical output N.C... U5 switching relay output N.O. Vaux+ ..+12Vdc spare (Imax = 150 mA) Vaux - ..0V tamper protection tamper protection headset socket CT06...

  • Page 7: Description Of The Buttons

    This operation can be useful if the communicator is connected to an Elkron alarm control unit with a TC programmed output that by default provides a high level (+12V) when the system is off and a low level (0V) when it is active.
  • Page 8 3. If an output is programmed as Switchable, maintained or timed, refer to Chapter 5.4 “ANSWERING SERVICE AND REMOTE CONTROL OPERATION” for details. NOTE: Only the status of “Switchable outputs” can be varied by means of the “Switch Output ” menu. CT06...

  • Page 9: Telephone Anomalie

    • U3, U4, U5 outputs where interfaced with hazardous voltage circuits (lights, boilers, etc.) must be disconnectable by means of relays or similar devices. These must be wired externally to the device, possible allocated in a specific electrical panel or enclo- sure. CT06...

  • Page 10: Example Of Connection

    “FAULT” input The relay must be wired out of the communicator for safety standard requirements (*diode 1N4001-4004) • Example of outputs with contacts free from potential (e.g. technological devices) on unbalanced inputs. CT06 Output 1 +RIF Output 2 Power Supply CT06...

  • Page 11: Operating Principles

    The programmed telephone numbers are called in sequence from the first to the last, for a total of three cycles. • In the case of tones and active answer check, call outcome will depend on line tone detec- tion (see “Installation menu”, paragraph 7.8). CT06...

  • Page 12: Stopping The Call Cycle

    • If the input that caused the alarm is subjected to TC, the call cycle in progress is barred when the TC switched to ON. • The call cycle can also be barred locally by means of the keypad by entering a valid code (user code or ENGINEER code, where enabled). CT06...

  • Page 13: Answering Machine And Remote Control Function

    Connect to the communicator as follows if an answering machine is fitted on the PSTN line used by the: - call the PSTN telephone number - wait for a single ring tone - hang up quickly - call the number again CT06...
  • Page 14 DONE 0 = off + ASSOCIATED VOICE MESSAGE * More than one output can be switched (or the same output more than once) during the same call. Simply repeat the following operations sequence: for each output to be switched. CT06...

  • Page 15: Default Settings

    Reconnect power. The buzzer will beep. While the buzzer is beeping, press at the same time. Wait for the buzzer to sound continuously and start beeping faster. The message DEFAULT PARAMETERS will appear on the display when the procedure is over. CT06...

  • Page 16: Language Selection

    (one minute). BUTTONS TO EVENT TYPE DISPLAY PRESS IN. Not QUITTED INPUTS NOT QUITTED IN.: (e.g. Input 1) alarm memory ALARM MEMORY IN.: (e.g. Input alarm 2) CLEAR alarm mem. CLEAR ALARM MEMORY NETWORK/BATTERY FAILURE IN.: WARNING LEDS CT06...
  • Page 17 COUNTER RESET COMMAND (ACTIVE ONLY CLEAR DATA WHEN FAILURE AND ANOMALY CONDITIONS OK/EXIT ? HAVE BEEN RESTORED) AND TELEPHONE PQRS FAILURE INDICATOR LED CT06 SOFTWARE RELEASE (BOARD) V 1.00 MANAGING CALLS OUTCOME ( INDICATION OPERATION CONDITIONS TELEPHONE LINE TONES CALL OUTCOME...

  • Page 18: User Programming

    USER MENU be disabled once the user code is entered. CODE CHANGING page USER MENU CALL TEST page USER MENU VOCAL MESSAGES Press to scroll the menu forwards Press to scroll the menu backwards Press to quit the menu CT06...

  • Page 19: Engineer Programming

    ENGINEER MENU INPUT PROGRAM. page ENGINEER MENU ANSWERING PROG. page ENGINEER MENU OUTPUT PROGRAM. page ENGINEER MENU CODE CHANGING page ENGINEER MENU ASSOC. INP.-PH.NR page ENGINEER MENU CALL TEST page ENGINEER MENU ASSOC. FAULT-PH.NR page ENGINEER MENU VOCAL MESSAGES CT06...

  • Page 20: Telephone Number Programming List

    EXAMPLE enter the international prefix (+) TELEPHONE NR. n 12: 0121 39282112 Press for at least one second to enter PQRS Press for at least one second to enter to return to WXYZ telephone number programming CT06...

  • Page 21: Output Switching Menu

    OUTPUT NR : 5 The current output DISABLED status is displayed. OUTPUT NR : 5 Press to change. ENABLED to confirm the selection SWITCH OUTPUT OUTPUT NR. to return to the output switching menu CT06...

  • Page 22: Answering Service Menu (For Remote Controls)

    * * * * * * the number keys 0-9. to confirm the entered code Re-enter the new code by means CODE CONFIRM of the number keys 0-9. * * * * * * to reconfirm the entered code CT06...

  • Page 23: Call Test Menu

    The test call cycle can be barred by dialling 12 in DTMF from the telephone which is receiving the call (see paragraph 5.3). The test call will not be made if the 12th telephone number is not programmed. CT06...

  • Page 24: Vocal Message Programming Menu

    RECORDING MSG INPUT NR.2 RECORDING MSG OUTPUT 3 ON MSG OUTPUT 5 OFF to confirm the selection Press to start recording. EXAMPLE The remaining time will RECORDING- 04 decrease on the display. msg INPUT 1 reCORDING msg inPUT 1 CT06...

  • Page 25: Pstn Parameter Programming Menu

    PSTN MENU TONE CONTROL PSTN MENU ANSWER CHECK PSTN MENU PSTN TEST • NETWORK PARAMETERS This function is used to adapt the CT06 to the PSTN standards in force in various countries. PSTN MENU NETWORK PSTN MENU ITALY PSTN MENU FRANCE...
  • Page 26 MENU INTERNAL PH. NR. INTERNAL PH. NR. DISABLED Use the scroll arrows to set the INTERNAL PH. NR. number to dial to make an NUMBER: external call, e.g. 0. to confirm selection CT06...
  • Page 27 DISABLED waiting for the called user to answer. ANSW. CHECK On: the voice message is not played ENABLED unit the called user answers. to confirm selection Enabling the answer check is automatically enabled the tone check CT06...
  • Page 28 15 minutes, minutes only when input 3 TC regardless of the status of is off. input 3 TC. FAILURE condition is determined by three PSTN tests (approximately 45 minutes) with a NEGATIVE outcome (no line tone). CT06...

  • Page 29: Input Programming Menu

    INPUT : and WITH tc to confirm selection INPUT : Select AND TC programming to INSTANTANEOUS select the required delay (5s, INPUT : 15s, 30s, 60s, 90s or instan- 5 S DELAY taneous). INPUT: to confirm 90 S DELAY selection CT06...

  • Page 30: Output Programming Menu

    OUTPUTN : SWITCHABLE OUTPUT N : NOT USED OUTPUT N : LINK INP.1 OUTPUT N : LINK INP.2 to confirm the selection OUTPUT : STEADY OUTPUT : 5 SEC TIMED OUTPUT : 90 S TIMED to confirm the selection CT06...

  • Page 31: Telephone Number Association / Inputs

    1 number 12 VOCAL PH-NR > - - - -*-*-*- - - < to confirm the selection In this example, numbers 5, 7 and 9 have been enabled for voice calls on input 2. ENGINEER MENU ASSOC. INP.-PH.NR CT06...

  • Page 32: Telephone Number Association / Failure

    1 number 12 > - - - -*-*-*- - - < In this example, a voice message will be sent following technical failures to numbers 5, 7 and 9. to confirm the selection INSTALLER MENU ASSOC. FAULT-PH.NR CT06...

  • Page 33: Technical Specifications

    • Working temperature range ........from +5° to +40°C • Dimensions ............245 (L) x 185 (H) x 70 (P) • Case protection level ..........IP3X WARNING: Lead battery disposal is regulated by specific laws and batteries must be taken to the suitable collection centers. CT06...
  • Page 36 ELKRON is a trademark of URMET S.p.A. ELKRON Via Bologna, 188/C - 10154 Torino (TO) - Italy TEL. +39 011.3986711 - FAX +39 011.3986703 www.urmet.com www.elkron.com ; e-mail info@elkron.it MADE IN ITALY...
