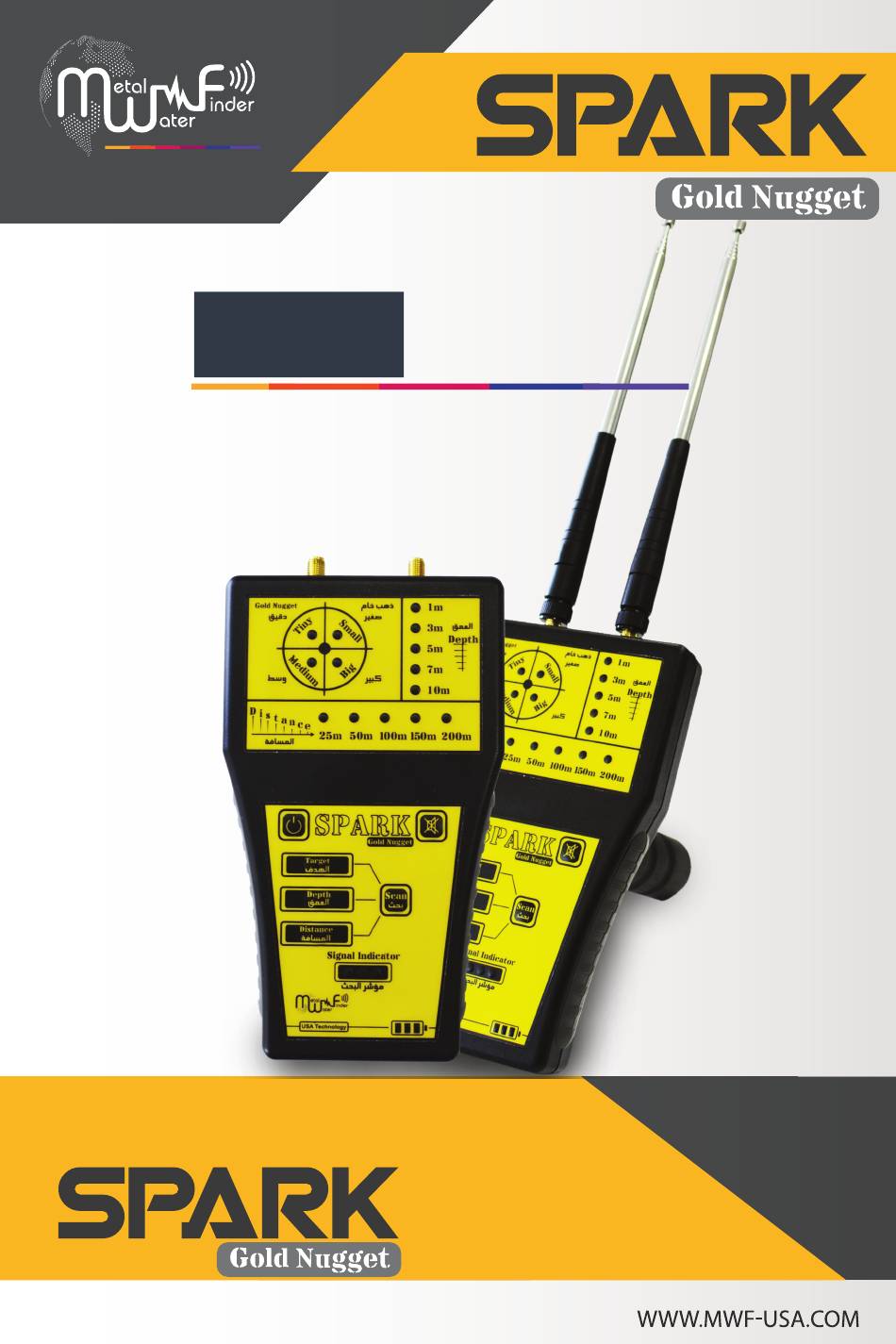

- Page 1 Metal and Water Finder Manual User’s...
-
Page 2: Table Of Contents
Contents Metal and Water Finder Contents Page Safety information Page Technical specification Page Device parts Page Interfaces and components of Device Page Overview Page Assembly Page Setup wizard Page Start searching Page Notes Page Page... -
Page 3: Safety Information
Safety information The operating in high voltage areas The cell signal interferes with the would limit the results and device signal, so turn off the cell performance while operating Don't operate two devices with Don't store in high temperature or same method of search at the high humidity same place... -
Page 4: Technical Specification
Technical specification Search system : long distance sensing system (LDS) Digital Frequency Signal Processing (DFSP) / To Receiving Search principle: Electrostatic Fields of the targets Operating processor: MICROCONTLLER PIC18 Operating frequency: From 1 kHz to 9 kHz Power: 4 AAA batteries 1.5 volts / Equivalent of -6volt interchangeable Power consumption: Maximum of consumption 25 mAh Battery life:... - Page 5 Technical specification Automatic smart none guidance system: Voice alerts: Vibrating alert: Operating temperature: From -15° C to 60° C Storage temperature: From -15° C to 40° C It can be stored and work in the degree rate of air humidity Humidity: of level 90%.
-
Page 6: Device Parts
Device parts Main Control Unit ذﻫﺐ ﺧﺎم دﻗﯿﻖ ﺻﻐﯿﺮ اﻟﻌﻤﻖ The unit which is responsible for adjusting the device and وﺳﻂ ﮐﺒﯿﺮ setting inaddition to full exploration search through this it. اﻟﻬﺪف اﻟﻌﻤﻖ ﻣﺆﺷﺮ اﻟﺒﺤﺚ Handel Grip Coms with the device . Used to carry the device through for the searching process, it has capability to rotation 360 degree. - Page 7 Interfaces and components of Device Front-end ذﻫﺐ ﺧﺎم دﻗﯿﻖ ﺻﻐﯿﺮ اﻟﻌﻤﻖ وﺳﻂ ﮐﺒﯿﺮ اﻟﻬﺪف اﻟﻌﻤﻖ ﻣﺆﺷﺮ اﻟﺒﺤﺚ Sound and vibration controlling button Signal port ,connected with antennas User interface. Scan button Depth levels interface . LED Indicators for signal. Target type interface . Battery level indicators.
-
Page 8: Interfaces And Components Of Device
Interfaces and components of Device Backend Handle socket. Battery compartment. Audio out. Page... -
Page 9: Overview
200 meters forward at 360 degree angle with precise control in distance search front end. Spark gold nugget device search depth up to 10m below the surface of the earth with strict control on deep research of device control interface the device of features a small size and ease of use. - Page 10 Overview This electronic device works on gold finder technology transmitter and receiver. It sends waves and receives at the same time and do the search for gold by frequency depending on the combination of physical and chemical interaction gold too if the presence of gold underground they are affected by the magnetic fields of the earth.
-
Page 11: Assembly
Assembly ذﻫﺐ ﺧﺎم دﻗﯿﻖ ﺻﻐﯿﺮ اﻟﻌﻤﻖ وﺳﻂ ﮐﺒﯿﺮ SPARK اﻟﻬﺪف اﻟﻌﻤﻖ ﻣﺆﺷﺮ اﻟﺒﺤﺚ Connect the antennas in their places in front of the front part of the device as shown in the drawing. Connect the carrier handle in its place at the bottom of the machine as shown in the drawing. -
Page 12: Setup Wizard
Setup wizard Characteristics and functionality To turn on the device press and hold the power key (for seconds) and for shut down process we do the same way. To control the audio levels through the key sound and pressure intermit- tently on the key to change the level. - Page 13 Setup wizard Search settings Do turn on device through turn and close key. Choose the desired target type by pressing the target key and you will notice the change in optical indicators that special for target part at the top of device each target there is a special light and target is (Small, Medium, Big and Tiny).
-
Page 14: Start Searching
Start searching The user must carry the device through the carrier handle so the device is horizontal with the ground and tilted slightly toward the soil as shown in the drawing. Soil And then just do the stimulation for waves and area outside of the device and we move the device by hand turn right and then left slowly and then install the hand that the device. - Page 15 Start searching If you find the target that was determined search for him. The device will receive this read and signal and thus change the device path automatically from normal path that was stable in it to another path and this trend is toward target location.
- Page 16 Start searching The user can know and estimate target distance from starting point search and to do that we change the distance level by pressing on distance key then we select distance from a list of distance for example if we have chosen at the beginning of search 200 search distance meters we reduce the distance of 50 meters then press on key scan again and the device starts to search and make previous steps.
- Page 17 Start searching Note: When you begin the process of tracking for target location you will notice the device produce alerts and a acoustic signals toward target location but if you notice that you are go out from derailing and direction of target this sound will disappear and another sound is heard indicating the error mode.
-
Page 18: Notes
Notes Page... - Page 19 United States of America - illinois www.mwf-usa.com info@mwf-usa.com +1 ( 708 ) 364 9602 Turkey - istanbul www.mwf-metaldetectors.com info@mwf-metaldetectors.com +90 ( 212 ) 222 0946 +90 ( 212 ) 222 0947 Metal and Water Finder...
