For Your Reference; Com Port Setting - Icom MA-510TR Installation Manual

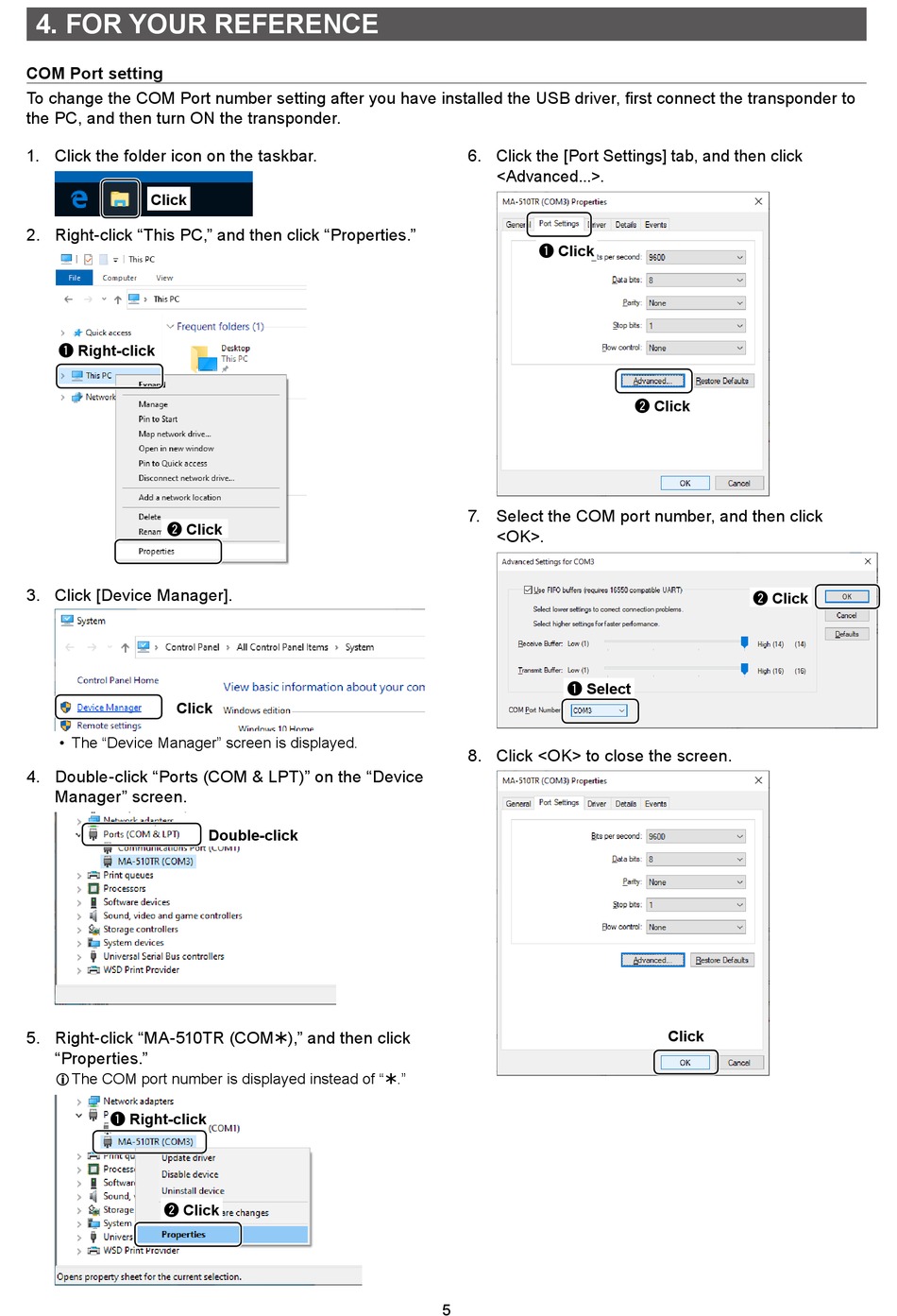

4. FOR YOUR REFERENCE

COM Port setting

To change the COM Port number setting after you have installed the USB driver, first connect the transponder to
the PC, and then turn ON the transponder.
1. Click the folder icon on the taskbar.
Click
2. Right-click "This PC," and then click "Properties."
q Right-click
w Click
3. Click [Device Manager].
Click
• The "Device Manager" screen is displayed.
4. Double-click "Ports (COM & LPT)" on the "Device
Manager" screen.
5. Right-click "MA-510TR (COM)," and then click
"Properties."
L The COM port number is displayed instead of "."
q Right-click
w Click
Double-click
6. Click the [Port Settings] tab, and then click
<Advanced...>.
q Click
7. Select the COM port number, and then click
<OK>.
q Select
8. Click <OK> to close the screen.
5
w Click
w Click
Click
