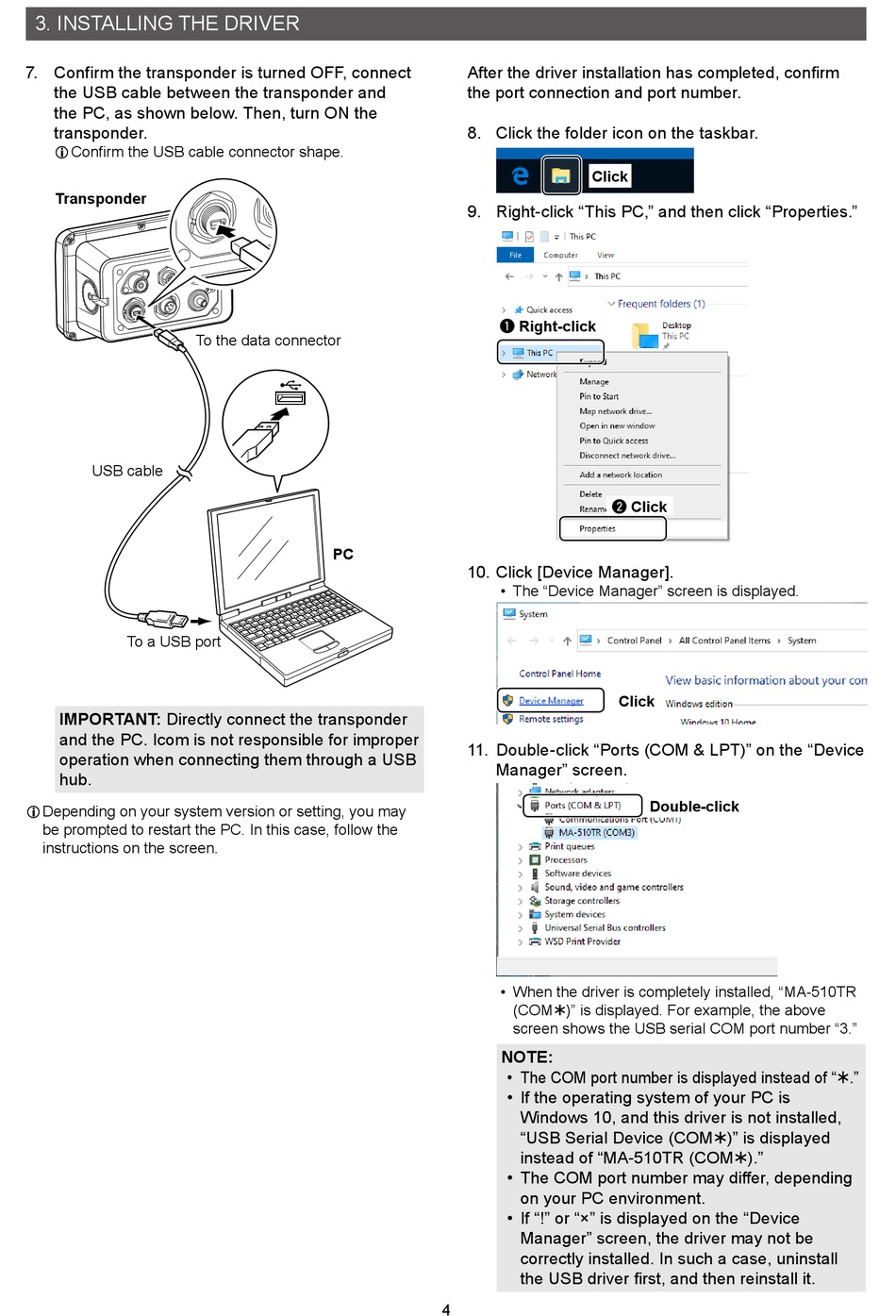

3. INSTALLING THE DRIVER
7. Confirm the transponder is turned OFF, connect
the USB cable between the transponder and
the PC, as shown below. Then, turn ON the
transponder.
L Confirm the USB cable connector shape.
Transponder
USB cable
To a USB port
IMPORTANT: Directly connect the transponder
and the PC. Icom is not responsible for improper
operation when connecting them through a USB
hub.
L Depending on your system version or setting, you may
be prompted to restart the PC. In this case, follow the
instructions on the screen.
To the data connector
PC
After the driver installation has completed, confirm
the port connection and port number.
8. Click the folder icon on the taskbar.
Click
9. Right-click "This PC," and then click "Properties."
q Right-click
10. Click [Device Manager].
• The "Device Manager" screen is displayed.
11. Double-click "Ports (COM & LPT)" on the "Device
Manager" screen.
• When the driver is completely installed, "MA-510TR
(COM)" is displayed. For example, the above
screen shows the USB serial COM port number "3."
NOTE:
• The COM port number is displayed instead of "."
• If the operating system of your PC is
Windows 10, and this driver is not installed,
"USB Serial Device (COM)" is displayed
instead of "MA-510TR (COM)."
• The COM port number may differ, depending
on your PC environment.
• If "!" or "×" is displayed on the "Device
Manager" screen, the driver may not be
correctly installed. In such a case, uninstall
the USB driver first, and then reinstall it.
4
w Click
Click
