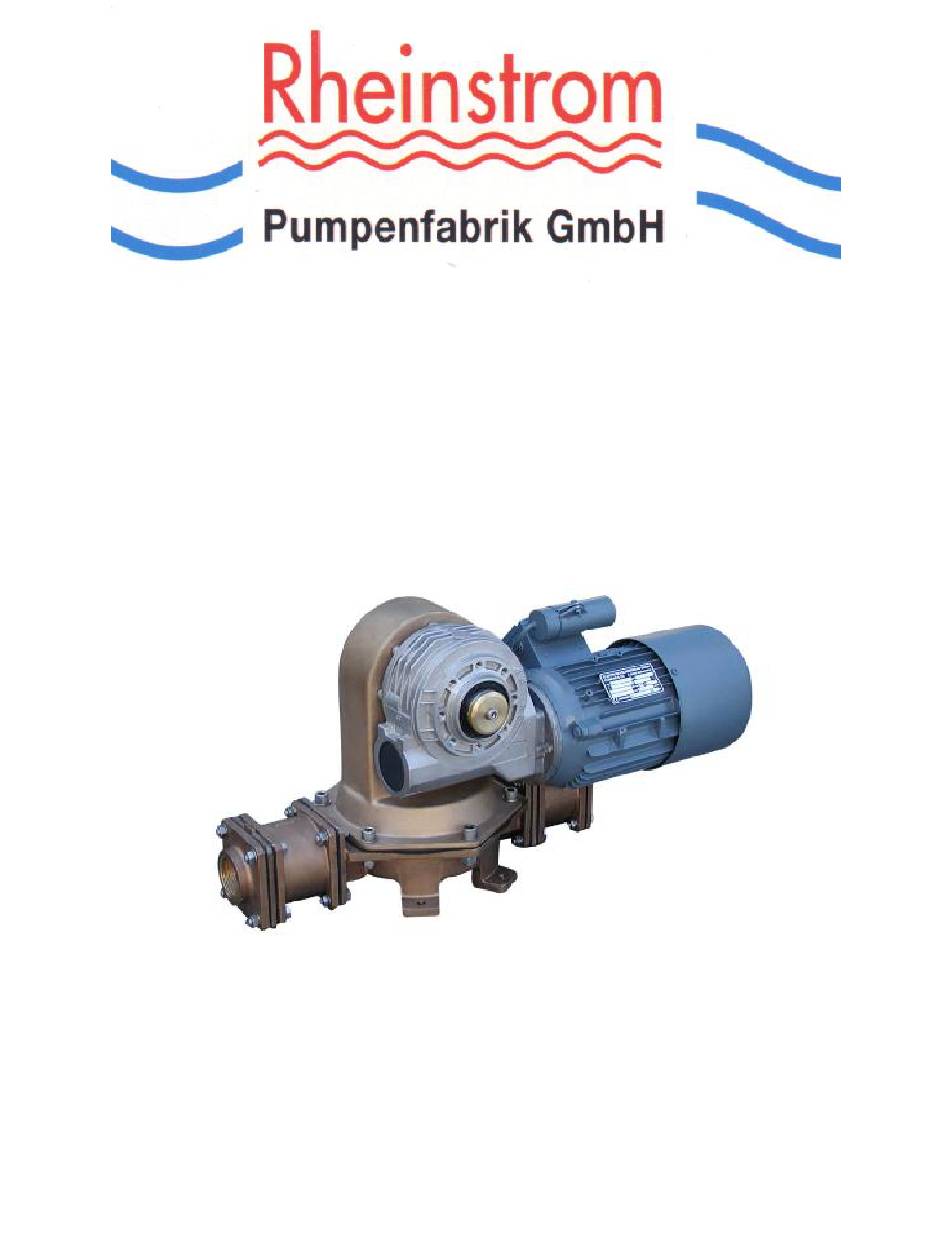

- Page 1 Diaphragm Pump M 60 Installation – Operation – Maintenance 10/2002...

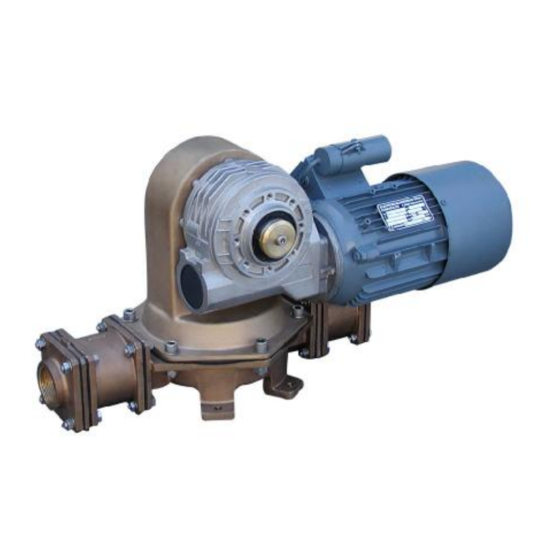

- Page 2 01/2001 Diaphragm Pump M 60 General Information By buying the diaphragm pump M 60 you have purchased a Rheinstrom high-quality product. We only use well-chosen high-quality components to ensure a trouble-free operation for many years to come. This type of pump has been especially designed to be used as a sewage or bilge pump for private yachts or professionally used ships.
- Page 3 Rheinstrom Attention The diaphragm pump M 60 is a displacement pump. It may never be run when the delivery valve is closed because this can harm the motor, the gear transmission and the pump. The max. pressure may not exceed 1.5 bar = 21.345 psi.
- Page 4 Rheinstrom E.Th.
- Page 5 Rheinstrom Diaphram Pump M 60 - 400 V Type-No. Discription Each 3260133 Gearmotor 400V 3260134 Gear 3260100 Housing, lower part, RG 3260101 Housing, upper part, RG 3260102 Threaded connection, RG 3260103 Sealing-casing 3260104 Double flange 3260105 Valve weight 3260106 Valve rupper seal...
- Page 6 D - 56070 Koblenz, Germany declare, being completely responsible, that this product : Rheinstrom – Diaphragm Pump M 60 to which this statement refers to is in accordance with the Directions of Machinery Equipment corresponding to appendix No. IV (Art. 8 (2) a).
- Page 7 Fordern Sie auch den Exalto-Katalog an. Hier finden Sie alles über Wellen, Anoden, Propeller, Kupplungen, Getriebe, Schaltzüge sowie Stühle, Steuerräder, Scheibenwischer, Scheinwerfen, usw. Rheinstrom - Pumpenfabrik GmbH Wallersheimer Weg 13-19 Postfach 1725 56070 Koblenz – Lützel 56070 Koblenz - Lützel Telefon 0049 261 82027 od.
