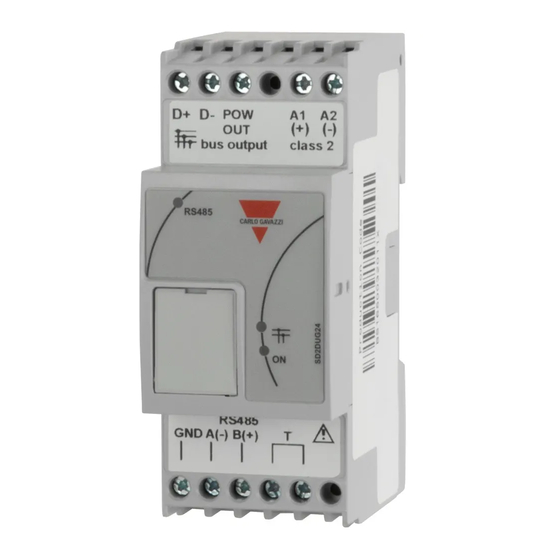

- Page 1 SD2DUG24 Dupline generator software manual rev. 0.2, 10/08/2018...
-
Page 2: Table Of Contents
Set an output when bus is faulty ..................18 Split I/O ..........................18 Double scan ......................... 19 Connect the PC to the SD2DUG24 ..................19 Disconnect the PC from the SD2DUG24 ................20 Send a configuration to the SD2DUG24 ................21 Read a configuration from the SD2DUG24 ................ - Page 3 Set the communication parameters ..................23 Output status ........................23 Set the password ......................... 24 FORMULAS ............................. 25 ..........................25 ROCEDURES Link a formula to an analogue value ..................25 Standard formula ........................26 Customised formula ......................... 26 REPORT AND LIVE DATA ......................... 28 ..........................
-
Page 4: Introduction
To connect the PC to the SD2DUG any Micro-USB cable can be used (standard cable to connect to Android smart-devices). Important note: Out of the factory, the SD2DUG24 has the following settings: • It repeats the input channels onto the output ones •... -
Page 5: Hardware Requirements
Should these settings fit the ones of the system, no further configurations are needed and the SD2DUG24 can be directly powered and connected without any programming. • The program operates with Windows 7 or higher, with Microsoft .Net 4.5 or higher installed •... -
Page 6: User Interface
3 USER INTERFACE When the DUG software is started, the following window will open: SD2DUG software manual... - Page 7 To open new or already saved configuration or to save a Configuration configuration To connect the PC to a SD2DUG24 module Connection To read a configuration from an SD2DUG24, to write a Device configuration into an SD2DUG24, to update the firmware of an SD2DUG24 Settings...
-
Page 8: Procedures
Create a new configuration To create a new configuration, follow this procedure: Step Action Click on If a configuration is already open, choose an operation from: a) Save b) Do not save c) Cancel action “New configuration” Open an existing configuration To open a configuration, follow this procedure: Step Action... -
Page 9: Program Analink Channel
Program analink channel To program one or more channels as analink, follow this procedure: Step Action Click on the channel to be programmed (from A1 to P8): if one or more channels are selected, the underline is marked with a thicker line Not selected channel Selected channel To select more channels, click and drag them... -
Page 10: Program 8-Bit Binary Protocol With Multiplexer
Program 8-bit binary protocol with multiplexer To program as 8-bit binary protocol with multiplexer, follow this procedure: Step Action Click on one of the channels belonging to the group to be programmed: Click on the red square on the right of 8-bit binary: the whole group will be marked in red and A1 to A4 output channels will be reserved for the multiplexer A1 to A4 input channels are automatically set as split I/O. -
Page 11: Program 3 ½ Digit Bcd Protocol With Multiplexer
Click on the pink circle on the right side of 3 ½ digit BCD: all the 8 bits belonging to the selected and following group will be marked in pink Program 3 ½ digit BCD protocol with multiplexer To program as 3 ½ digit BCD protocol, follow this procedure: Step Action Click on one of the channels belonging to the first group to be programmed:... -
Page 12: Multiplexer Settings For 3 ½ Digit Bcd And 8-Bit Binary
Multiplexer settings for 3 ½ digit BCD and 8-bit binary To set the multiplexer parameters, follow this procedure: Step Action Click on To set how long the value of the multiplexer has to be maintained for, fill in the field Keep multiplexer value for ... The multiplexer values have to be defined in the Multiplexer values field: To add a new value, click on To switch beween single value or more values, click on... -
Page 13: Em24: Multiplexer (Transmission Of Analogue Data)
EM24: multiplexer (transmission of analogue data) To program the channels to detect the analogue values sent by one or more EM24s, follow this procedure: Step Action Click on one of the channels belonging to the first group to be programmed from G to P: Click on the light-blue square on the right side of EM24: all the 8 bits belonging to the selected and following group will be marked in light-blue and A1 to A4... -
Page 14: Set A5 Channel As Reset Of The Em24 Counter
Set A5 channel as DMD synchronization or tariff management The A5 output value can be set in two ways: a) Copying the status of any input channel b) Via Modbus Step Action Copying the status of any input channel a) Click on b) Select the input channel from the list, as shown below: The status of this input will be reproduced on the sync channel A5 EM24: multiplexer (transmission of counter values) - Page 15 Click on the blue square on the right side of EM24: all the 32 bits belonging to the C, D, E and F groups will be marked in blue and B2 to B8 output channels will be reserved for the multiplexer B1 is automatically reserved as the reset channel.
-
Page 16: Set B1 Channel As Reset Of The Em24 Counter
Set B1 channel as reset of the EM24 counter The B1 output value can be set in two ways: c) Copying with the status of any input channel d) Via Modbus Step Action Copying with the status of any input channel c) Click on d) Select the input channel from the list, as shown below The status of this input will be reproduced on the reset channel B1... -
Page 17: Multiplexer Settings For Em24 Protocol
Multiplexer settings for EM24 protocol To set the multiplexer parameters, follow this procedure: Step Action Click on To set how long the value of the multiplexer has to be maintained for, fill in the field Keep multiplexer value for ... The multiplexer values have to be defined in the Multiplexer values field: To add a new value, click on To switch beween single value or more values, click on... -
Page 18: Set An Output When Bus Is Faulty
Set an output when bus is faulty To program an output channel so that it is set when the bus is faulty, follow this procedure: Step Action To enable this function, click on the icon Check Clear ouput..Set after how many seconds the output has to be reset Click on Save Click on the output channel to be programmed (from A1 to P8): if one or more channels are selected, the underline is marked with a thicker line... -
Page 19: Double Scan
To connect to the SD2DUG24 generator, follow this procedure: Step Action Connect the SD2DUG24 to your PC, using one of the following ports: a) The Micro-USB port in the front part of the module – using a standard USB cable b) The RS485 port on the bottom of the module –... -
Page 20: Disconnect The Pc From The Sd2Dug24
• If the Micro-USB port is used, address 0 can be used as the default address • If the RS485 port is used, the modbus address of the SD2DUG24 has to be used together with the proper connection parameters (the default address... -
Page 21: Send A Configuration To The Sd2Dug24
Send a configuration to the SD2DUG24 To send a configuration to the SD2DUG24 generator, follow this procedure: Step Action Connect the SD2DUG24 to your PC Click on Read a configuration from the SD2DUG24 To read a configuration from the SD2DUG24 generator, follow this procedure:... -
Page 22: Set The Name Of A Configuration
Set the name of a configuration To set the name, follow this procedure: Step Action Click on Type-in the name: Click on Save Set the number of Dupline channels To set this number, follow this procedure: Step Action Click on Select the number required in the Active channels field: Click on Save SD2DUG software manual... -
Page 23: Set The Communication Parameters
Set the communication parameters To set the communication parameters, follow this procedure: Step Action Click on Select the proper setting in Modbus: Click on Save Things to know These settings are applied only to the RS485 port. The parameters are fixed and cannot be changed on the USB port Output status To set the output status after writing a configuration, follow this procedure: Step... -
Page 24: Set The Password
Click on Enter and confirm the password Check Read configuration from file, if the password has to protect the configuration file Check Read configuration from SD2DUG24, if the password has to protect the reading from the SD2DUG24 SD2DUG software manual... -
Page 25: Formulas
4 FORMULAS Link a formula to an analogue value To apply a formula to an analogue signal, follow this procedure: Step Action Select the channel or the group to which the formula has to be applied Click on the formula A small number will appear at the bottom right of the channel to indicate that a formula has been applied Things to know... -
Page 26: Standard Formula
Standard formula Number and name Formula 1 – Lux type A Lux = (10 (3 * ANALINK) / 255)) * 5 (5 – 5000 lux) 2 – Lux type B Lux = (10 (2 * ANALINK) / 255)) * 3000 (3000-300000 lux) 3 –... - Page 27 Associate the formula to the relevant channel SD2DUG software manual...
-
Page 28: Report And Live Data
5 REPORT AND LIVE DATA Modbus map To access the Modbus map, follow this procedure: Step Action Click on The modbus map relevant to the programmed channel will be shown: Export the Modbus map To export the Modbus map, follow this procedure: Step Action Click on... -
Page 29: Live Data
Live data To check the activity of the Dupline bus, follow this procedure: Step Action Click on Click on Thing to know When live data is active, the icons will turn white On the top of the page all dupline channels are shown and it is possible to change their status by clicking on them Things to know By clicking on the small square at the end of each group... -
Page 30: G34960005 Or G34900000 Quick Substitution
SD2DUG24, follow this procedure: Step Action Click on Select the device by clicking on the relevant icon: Set the “virtual” dip-switches, copying the ones of the G34960005 Click on Done and then on Save Write the configuration into the SD2DUG24 SD2DUG software manual... -
Page 31: Substitute A G34900000
SD2DUG24, follow this procedure: Step Action Click on Select the device by clicking on the relevant icon: Set the “virtual” rotary switch, copying that of the G34900000 Click on Done and then on Save Write the configuration into the SD2DUG24 SD2DUG software manual... -
Page 32: Apendix
7 APENDIX Temp. Temp. Temp. Temp. Analink Temp. (°C) Analink Analink Analink Analink (°C) (°C) (°C) (°C) -11,6 24,7 43,4 -11,2 25,4 43,7 -29,6 -10,9 25,7 44,4 -29,5 -10,5 26,1 44,4 -28,9 -10,2 26,4 45,1 -28,5 -9,8 26,8 45,5 -28,2 -9,5 27,1 45,8...
