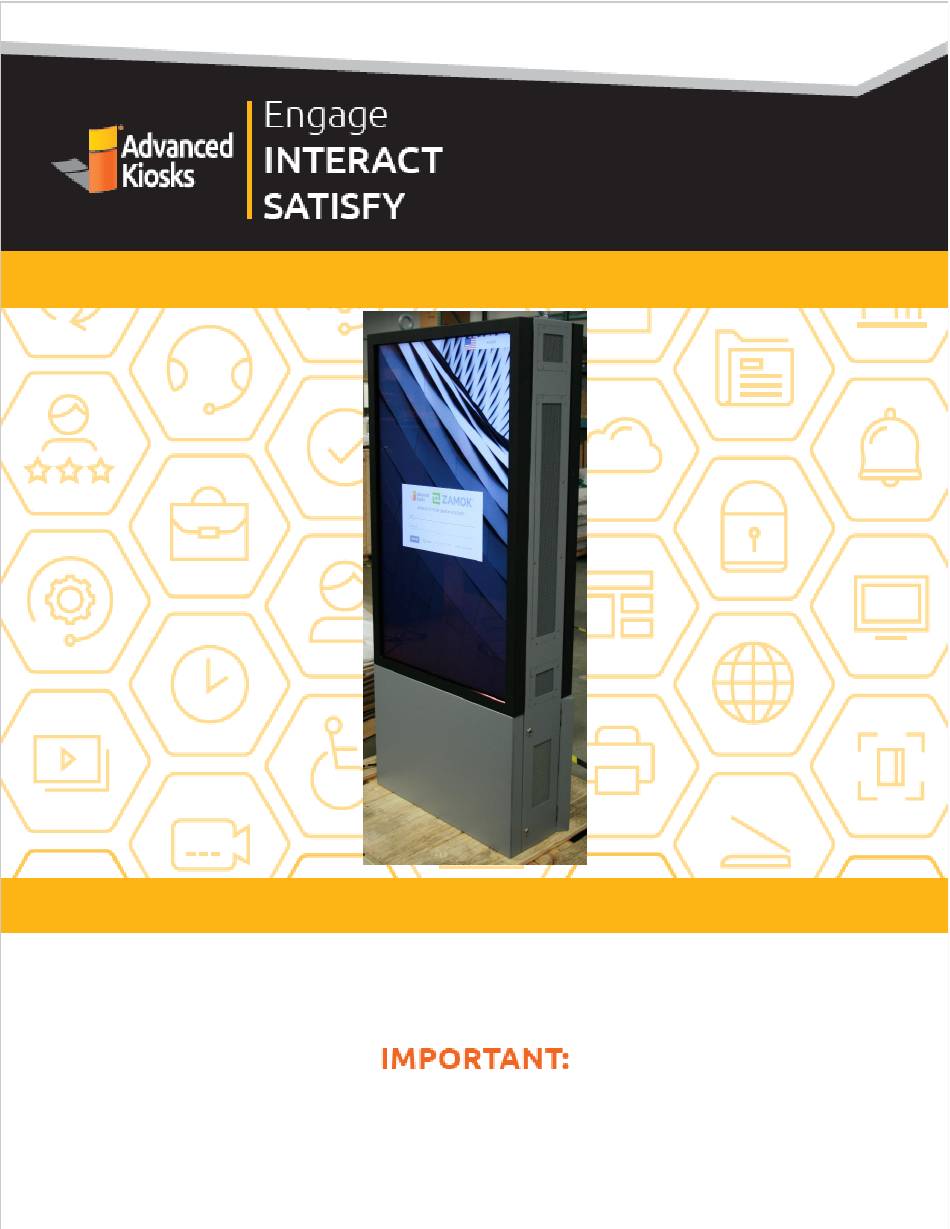

- Page 1 AK-OM-OM-12/16/2020 Owner’s Manual for the Outdoor Monolith Kiosk Read This Entire Manual Before Use! With Speakers, Options...
-
Page 2: Table Of Contents
Table of Contents INTRODUCTION ............................... 1 ............................. 1 RODUCT ESCRIPTION ................................1 RECAUTIONS ................................2 UPPORT Taxes ..................................2 SETUP AND OPERATION............................3 ................................3 ASIC ETUP Before Powering on The Kiosk ..........................3 Back Up Your Information ........................... 3 Earthquake Zones .............................. -
Page 3: Introduction
Introduction Product Description The Double-Sided Outdoor Monolith Kiosk features a 55” Multi touch touchscreen mounted on an attractive powder coated base. Made out of sturdy 14-gauge metal, it is water-resistant which is a standard feature of this kiosk. The Kiosk is powered by an AMD Processor and comes standard with 8GB of RAM, a 256GB SSD, and Windows 10. -
Page 4: Our Support
We are happy to help you with any problems after you have read the manuals to learn about this product. Advanced Kiosks will support you in ownership as long as you own your kiosk, within reason. Unless you or your company is an authorized reseller, selling or giving it to another company or person will void any and all support and warranty. -
Page 5: Setup And Operation
Computers aren't perfect. Files become corrupt, motherboards malfunction, electrical storms strike, and CPUs call it quits taking our precious data with them. Advanced Kiosks cannot recover your data. If a replacement or repaired kiosk is required, it will be shipped with our standard installation. -
Page 6: Specifications
100 VAC to 240 VAC, 50 to 60 Hz Power Consumption (Typical) 510W Temperature Operating: -30°C ~ 50°C (-22°F - 122°F) Humidity Operating: 10%-80% MTBF 50,000 hours FCC (USA) Part 15, Subpart B Class A Regulatory & Safety 12/16/2020 Outdoor Monolith Kiosk Assembly and Operation Instructions www.advancedkiosks.com... -
Page 7: Computer Power And Location
The 2 computers will be secured in the kiosk, located in the Water-Resistant Enclosure. There are normally around six cables that will be plugged into the computer. Ensure all are plugged in completely and shipping has not vibrated any loose. 12/16/2020 Outdoor Monolith Kiosk Assembly and Operation Instructions www.advancedkiosks.com... -
Page 8: Wi-Fi
Wi-Fi The Monolith kiosk does not come with Wi-Fi. While there are available USB ports that a USB Wi-Fi adapter may be plugged into, Advanced Kiosks does not recommend the option. We recommend an insulated category 5 or 6 cable. -
Page 9: Installation
The surface should slope away from the kiosk to prevent the possibility of water accumulating in the bottom of the kiosk. Standing water inside the kiosk will elevate humidity levels beyond acceptable operating conditions. 12/16/2020 Outdoor Monolith Kiosk Assembly and Operation Instructions www.advancedkiosks.com... -
Page 10: Power And Ethernet For The Kiosk
The power cable (as well as Ethernet cable) needs to be run up from the bottom of the kiosk, so no wires are exposed. Connect the end of the cable into the plug on the bottom section of the kiosk. 12/16/2020 Outdoor Monolith Kiosk Assembly and Operation Instructions www.advancedkiosks.com... -
Page 11: Power Requirements
When mounting to the floor you should use no less than six, 3/4” diameter sleeve anchor bolts to secure the kiosk to your selected location’s surface. Advanced Kiosks recommends at least this specification, but please follow your local building codes, and have a professional help with mounting. - Page 12 Use the lifting rings on the top of the kiosk with a lifting system. Do not try and lift by hand. Use extreme caution to prevent injury. 12/16/2020 Outdoor Monolith Kiosk Assembly and Operation Instructions www.advancedkiosks.com...
- Page 13 The components inside the kiosk are designed to be water resistant. 12/16/2020 Outdoor Monolith Kiosk Assembly and Operation Instructions www.advancedkiosks.com...
- Page 14 1/8” allen wrench on the 8 screws. Repeat on other side. Unopened Side Vent Opened Side Vent Showing Lifting Ring 12/16/2020 Outdoor Monolith Kiosk Assembly and Operation Instructions www.advancedkiosks.com...
- Page 15 13. Finally, make sure that everything is connected correctly, and that the kiosk is secure. After everything has been wired and secured, plug the power in. The kiosk is programmed to turn on when plugged in to a power source. 12/16/2020 Outdoor Monolith Kiosk Assembly and Operation Instructions www.advancedkiosks.com...
-
Page 16: Maintenance Of Kiosk
• DO NOT use pressure washers to clean kiosk. Water could potentially get through the seals. • DO NOT use leaf blowers near or on kiosk. For other questions, visit our knowledge base at https://advancedkiosks.com/knowledgebase/ 12/16/2020 Outdoor Monolith Kiosk Assembly and Operation Instructions www.advancedkiosks.com... -
Page 17: Equipment Manuals
Please keep these in a safe place. It is recommended that all serial numbers are also written down. Serial Numbers – Write all your equipment Serial Numbers here and keep this document in a safe place. Serial # ____________________ Notes: 12/16/2020 Outdoor Monolith Kiosk Assembly and Operation Instructions www.advancedkiosks.com... -
Page 18: Support
Support 12/16/2020 Outdoor Monolith Kiosk Assembly and Operation Instructions www.advancedkiosks.com... -
Page 19: Warranty
Warranty Limited Warranty Your Advanced Kiosks Enviro Kiosk is warrantied for 3 years from the date of purchase. The electronics in the kiosk are warrantied for 3 years including the monitor. Should any component fail, you must call Advanced Kiosks Technical Support to obtain RMA # before shipping back the component. - Page 20 12/16/2020 Outdoor Monolith Kiosk Assembly and Operation Instructions www.advancedkiosks.com AK-OM-OM-12/16/2020...
