Allied Telesis AT-TN127-A Specifications

Datasheet | integrated Multiservice Access Platform
SHDSL24

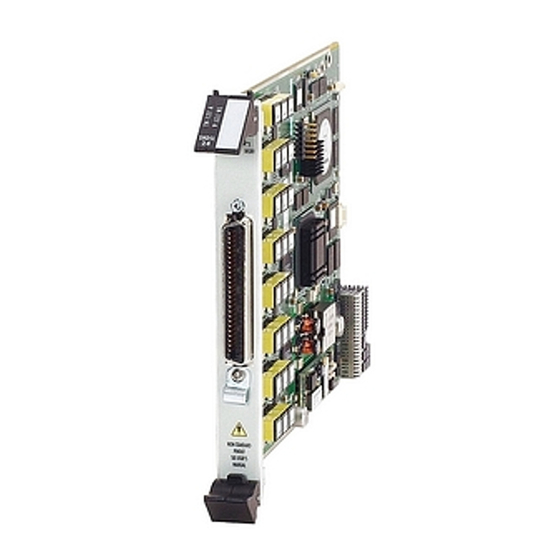

AT-TN127-A 24 Port SHDSL Service Module
Address Business Customer
needs with the new SHDSL24
Service Module
Allied Telesis has utilized the latest in SHDSL
technology to deliver a new 24-port SHDSL
service module for the iMAP product family.
The SHDSL module is ideal for business
customers where symmetric bandwidth is
required over long or short distances. SHDSL
enables the service provider to utilize existing
copper infrastructure for Internet access,TLS
or inter-office connectivity.
The requirements of business users are
different than those of residential customers.
In many cases, a broadband connection is
required to maintain data communications
between two or more offices with an equal
amount of bandwidth demanded for upstream
and downstream applications. With the new
SHDSL24 module, a service provider can
also bond two copper pairs together for a
symmetrical 4.6Mbps connection.
The new SHDSL24 module has been designed
with the capabilities of SHDSL.bis in mind.
This includes processing power and backplane
connectivity engineered for the higher speeds
associated with SHDSL.bis. As new business
applications are envisioned, the iMAP with
SHDSL24 is positioned as an ideal solution
that can support any network application.
Allied Telesis
Continuing the delivery
of Ethernet based services
Adding to the broad portfolio of Ethernet
based access technologies offered by Allied
Telesis, the recent implementation of SHDSL
is designed for data transport over one or
two copper pairs. As SHDSL based services
continue to grow, service providers can offer
cost effective and reliable services with the
SHDSL24 using single or multiple copper pairs.
Combined with the growing family of Allied
Telesis' iMAP product family, the SHDSL24
is a vital part of any solution aimed at
delivering Business Ethernet services. Service
providers can rely on Allied Telesis to continue
to develop innovative, cost competitive and
reliable products focused on access
infrastructures - Residential or Business.
Part of Allied Telesis' IP Broadband
Access Family
Whether it is broadband ADSL2+,VDSL2,
SHDSL, FTTH or POTS, the iMAP product
family makes the ideal platform for last mile
service delivery.The SHDSL24 line cards can
be used with any of the iMAP family of carrier
grade, IP Multiservice Access platforms:
• iMAP 9700 (9RU, 17 service slots)
• iMAP 9400 (3RU, 7 service slots)
• MiniMAP 9100 (1RU, 3 service slots)
Provisioning, management, and diagnostics of
subscriber ports can be accomplished from
either the iMAP command line interface or
the AlliedView NMS.The SHDSL24 service
module supports 2-wire (2.3Mbps) mode or
4-wire (4.6Mbps) mode on a per-port basis.
The SHDSL24 service module has been designed
to survive the most rugged environmental
conditions. It can be confidently deployed in
either a central office or in outdoor enclosures
withstanding extremes of heat, cold, and light
exposure.
Key Features
• 24 ports of SHDSL
• 2.3Mbps per port
• Port Bonding
• SHDSL.bis*
• Hardened for OSP designs
QoS
• Eight Queues
• Strict Priority Scheduling
• VLAN Stacking
Security
• Upstream Forwarding Only
• Extensive ACL Support
• VC-VLAN mapping
• Ethernet based technology
Services Supported
• High Speed Internet
• VoIP
• Business VPN
*Future
Allied Telesis' iMAP family of integrated
Multiservice Access Platforms
