gefran R-ETH100 Installation And Operation Manual

gefran R-ETH100 Installation And Operation Manual

Bridge ethernet 100 module

Advertisement

Quick Links

• Complete control of R-BUS(x) back plane
• Refresh of all installed I/Os in 100us (1 node)
this section contains the instructions necessary for correct
installation of the giLOgiK ii into the machine control panel
or the host system and for correct connection of the system
power supply, inputs, outputs and interfaces.
Before proceeding with installation read the following
warnings carefully!
Remember that lack of observation of these warnings
could lead to problems of electrical safety and electroma-
gnetic compatibility, as well as invalidating the warranty.
Qualified staff
the installation and use of the system and components are only reserved
at qualified staff.
Conform use
the system and relative components are usable exclusively to the use
previewed in the manual
In order to guarantee a correct and sure operation are indispensable that
the product comes transported, stored correctly, installed, and controlled
second the previewed modalities.
Suitable for use in pollution degree 2 environment.
Open type equipment.
Electrical power supply
• the GILOGIK II is NOT equipped with an On/Off switch: the user must
provide a two-phase disconnecting switch that conforms to the required
safety standards (CE marking), to cut off the power supply upstream of
the system. The switch must be located in the vicinity of the system and
must be within easy reach of the operator.
One switch may control more than one systems.
• To make sure that the system very is connected to earth second the
detailed lists of the relative understood one it.
• if the system is used in applications with risk of damage to persons,
machinery or materials, it is essential to connect it up to auxiliary security
equipment. It is advisable to make sure that alarm signals are also
triggered during normal operation.
The dispositif must NOT be installed in flammable or explosive
environments; it may be connected to equipment operating in such
atmospheres only by means of appropriate and adequate types of
interface, conforming to the applicable safety standards
Notes Concerning Electrical Safety and Electromagnetic
80127C_MhW_r-eth100_08-2011_eng

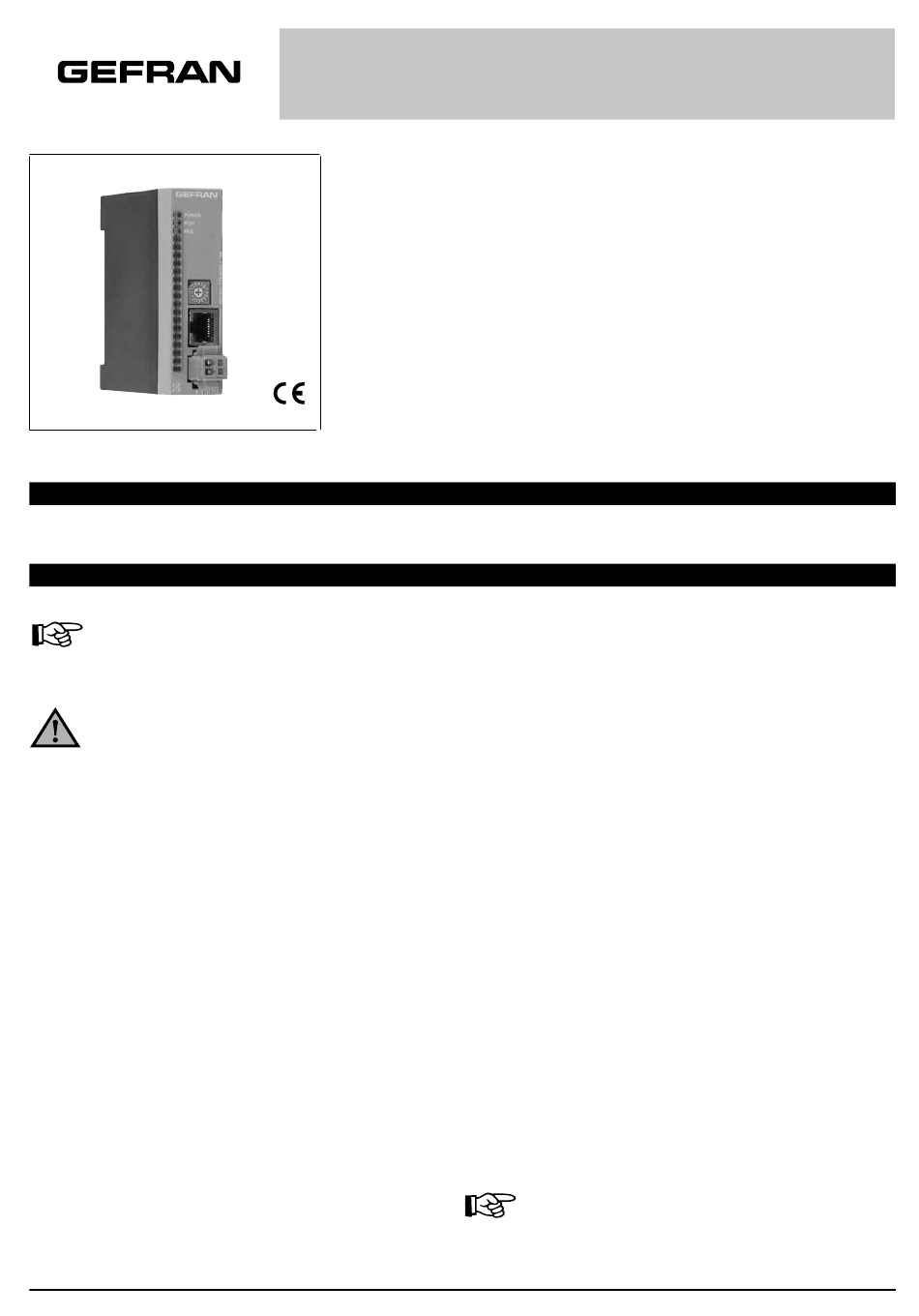

R-ETH100
bridge ethernet 100 MOdULe
INSTALLATION AND OPERATION MANUAL
cod. 80127C / Edit 04 - 08/2011 - ENG
1 • MAIN FEATURES
I
2 • INSTALLATION AND CONNECTION
• GDNet interface
• Power supply of backplane
Compatibility:
• CE MARKING: EMC Conformity (electromagnetic compatibility)
in accordance with EEC Directive 2004/108/CE.
The GILOGIK II system is mainly designed to operate in
industrial environments, installed on the switchboards or control panels
of productive process machines or plants.
Norm of applicable product: EN61131-2.
The Declaration of conformity is available on GEFRAN web:www.gefran.
com
• UL listed standard: UL508 file E198546
• BT Conformity (low tension)
in accordance with Directive LVD 2006/95/CE.
Advice for Correct Installation for EMC
Module power supply
• Supply with class 2 device
• The power supply to the modules on the switchboards must always
come directly from an isolation device with a fuse.
The electronic instruments and electromechanical power devices
such as relays, contactors, solenoid valves, etc., must always be
powered by separate lines.
When the power supply is strongly disturbed by the commutation of
transistor or power units or motors, an isolation transformer should
be
used, earthing the screen.
It is essential that the plant has a good earth connection:
- the voltage between neutral and earth must not be > 1V
- the Ohmic resistance must be < 6Ω;
In the proximity of high frequency generators or arc welders, use
adequate filters.
The power supply lines must be separate from the instrument input
and output ones.
GEFRAN S.p.A. declines all responsibility for any damage
to persons or property caused by tampering, neglect,
improper use or any use which does not conform to the
characteristics of the controller and to the indications
given in these Instructions for Use.
3

Advertisement

loading

Summary of Contents for gefran R-ETH100

  • Page 1 • if the system is used in applications with risk of damage to persons, machinery or materials, it is essential to connect it up to auxiliary security GEFRAN S.p.A. declines all responsibility for any damage equipment. It is advisable to make sure that alarm signals are also to persons or property caused by tampering, neglect, triggered during normal operation.
  • Page 2 4 • CONNECTIONS (*) Use standard category 6 cable according to TIA/EIA-568A (**) Use unipolar cable with 1-1.5mm cross section Do not attach a lug Yellow LED POWER Green LED RUN Red LED FAIL Rotary switch to select the node = no active 1..F = nodo 1..F (1..15) Green LED DATA Ethernet (*) RJ45 Yellow LED LINK Supply (**) 24Vdc ± 25% Max 2A The module installs on R-BUS(x) in the first slot on the left if there is no R-SW5 module; in the second slot if there is an R-SW5 module. (*) with the 18 position bus, positions 1, 2 are reserved to the R-ETH100 and R-SW5 modules. GEFRAN spa via Sebina, 74 - 25050 Provaglio d’Iseo (BS) Tel. 03098881 - fax 0309839063 - Internet: http://www.gefran.com 80127C_MhW_r-eth100_08-2011_eng...
