Cudy RE300 Quick Installation Manual

Quick Installation Guide
Video Installation Guide
Install by WPS Install by Web Browser
https://youtu.be/YweBWQ0FLnU https://youtu.be/EUMHZAjgmfU
Repeater Mode
Method One: Using WPS button
1. Switch the mode selector to Repeater position.
2. Plug RE300 into an electrical outlet near your Wi-Fi router. Power on
and wait until the WLAN LED is flashing.
3. Press and hold RE300's WPS button for 2 seconds before release,
then press WPS button of your router.
4. Waiting for them to connect, it may take 2 minutes.
WPS
Press 2 seconds Press 1~2 seconds
5. When successful, all of the 3 WLAN LEDs of RE300 should turn on
and stay solid. And it will create a network name which contains the
words of your router's WiFi name and "EXT", the password is the
same as your router's wifi.
6. Then plug it to a suitable location(ensure at least 2 WLAN LEDs
solid on), no need to configure again.

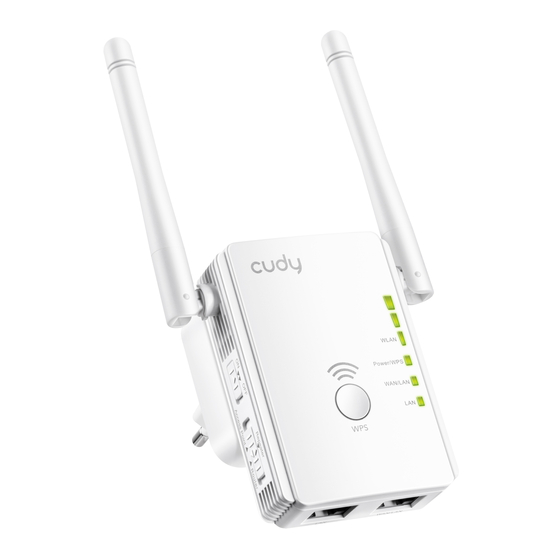

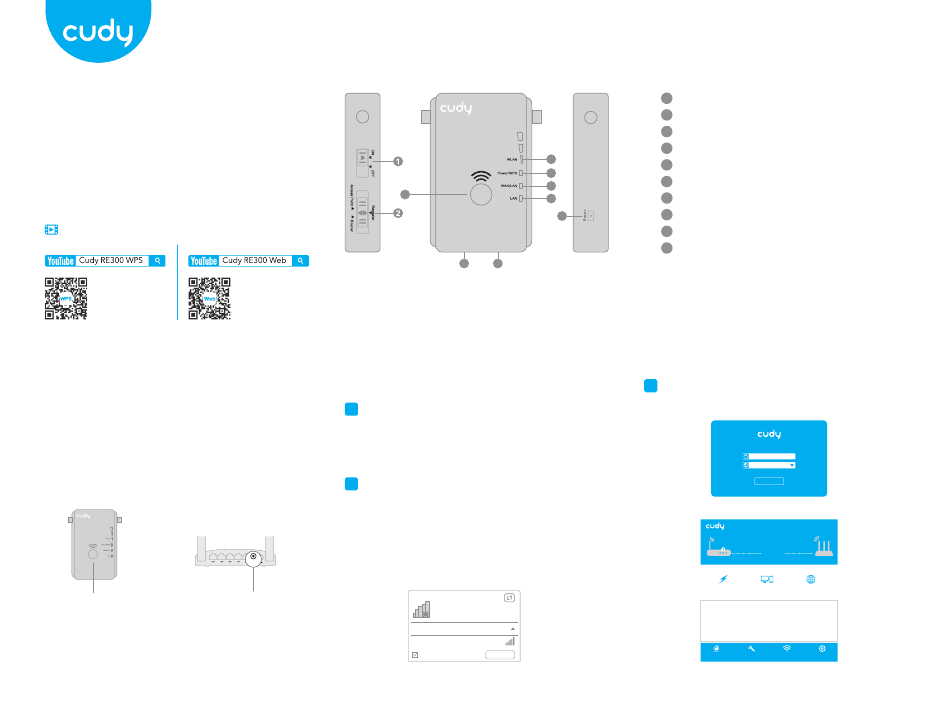

Hardware Overview
3
Method Two: Using Web browser
1 Power ON
1. Switch the mode selector to Repeater position.
2. Plug the Device into an electrical outlet near your Wi-Fi router.
3. Shift the power switch to ON and wait until the WLAN LED is flashing.
2 Connect to the Device (Wired or Wireless)
Wired
Turn off the Wi-Fi on your computer and connect it to the LAN port of
Cudy Repeater via an Ethernet cable.
Wireless
1.Disconnect the Ethernet (Wired) connection if using a laptop or PC.
WPS
2.Connect your device to extender's Wi-Fi Cudy-RE300.
Not connected
Wireless Network Connection
Cudy-RE300
Connect automatically
4
5
6
7
WPS
10
8 9
Connections are available
Connect
1 Power On/Off Default Parameters
2 Mode Selector Web Setup: http://ap.setup/
3 WPS Button Default IP: http://192.168.10.254/
4 WLAN LED Password: admin
5 Power/WPS LED SSID:Cudy-RE300
6 WAN/LAN LED
7 LAN LED Technical Support
LAN Port support@cudytech.com
8
9 WAN/LAN Port
10 Reset Button
3
Configure
1. Launch a web browser and type http://192.168.10.254/ (or
http://ap.setup/) in the address field. Enter admin for password to login.
Wi-FI Range Extender
admin
English
Login
2.Click Wizard.
Repeater
This Device Router
Speed Clients Internet
0 KB/S 1 Disconnect
Device Information
WAN Type Repeater Wi-Fi SSID Cudy-xxxx
Device IP 192.168.10.254 Channel 5
Gateway 192.168.10.254 Uptime 00h:01m
DNS1 0.0.0.0 Firmware M78N_V3130.0604
DNS2 0.0.0.0
WAN MAC 82:3F:5D:06:1A:FC
Status Wizard Wi-Fi Setup
