Value moves the world
LEX-RM
LEX-HRM
I
MOTORIDUTTORE TUBOLARE
Ø 45 MM CON FINE CORSA
MECCANICO E RICEVITORE RADIO
INTEGRATO
GB
TUBULAR MOTOR Ø 45 MM WITH
MECHANICAL LIMIT SWITCH AND
BUILT-IN RADIO RECEIVER
F
MOTORÉDUCTEUR TUBULAIRE Ø
45 MM AVEC FIN DE COURSE
MÉCANIQUE ET RÉCEPTEUR RADIO
E
MOTORREDUCTOR TUBULAR
Ø 45 MM CON FINAL DE CARRERA
MECÁNICO Y RECEPTOR DE
RADIO INCORPORADO
P
MOTORREDUTOR TUBULAR Ø
45 MM COM FIM DE CURSO
MECÂNICO E RECEPTOR VIA
RÁDIO INTEGRADO
D
ROHRMOTOR Ø 45 MM MIT
MECHANISCHEM ENDSCHALTER
UND EINGEBAUTEM
FUNKEMPFÄNGER
NL
BUISMOTOR Ø 45 MM VOOR
ZONNEWERINGEN EN ROLLUIKEN
MET INGEBOUWDE STURING
IL 335
EDIZ. 05/04/2017
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for V2 LEX-RM
Summary of Contents for V2 LEX-RM
- Page 1 Value moves the world IL 335 EDIZ. 05/04/2017 LEX-RM LEX-HRM MOTORIDUTTORE TUBOLARE MOTORREDUTOR TUBULAR Ø Ø 45 MM CON FINE CORSA 45 MM COM FIM DE CURSO MECCANICO E RICEVITORE RADIO MECÂNICO E RECEPTOR VIA INTEGRATO RÁDIO INTEGRADO TUBULAR MOTOR Ø 45 MM WITH ROHRMOTOR Ø...
- Page 2 Fig. 1 code Per motori con coppia fino a 30 Nm 162728 For motors with torque up to Pour moteurs avec couple jusqu’à code Para motores con par de hasta 30 Nm 162847 Para motores com binário até Für Motoren mit Drehmoment code 50 Nm Voor motoren met een koppel tot...
- Page 3 Fig. 4 Fig. 3 - 3 -...
- Page 4 230V MODELS METEO / HURRICANE White Blue Brown Black Yellow / Green WIND / MISTRAL White Blue Brown Black Yellow / Green COLLEGAMENTI CONNECTIONS BRANCHEMENTS CONEXIONES BIANCO - ingresso sensori WHITE - input of sensors BLANC - entrée capteurs BLANCO - entrada sensores BLU - Neutro BLUE - Neutral BLEU - neutre...
- Page 5 120V MODELS METEO / HURRICANE Yellow White Black Yellow / Green WIND / MISTRAL Yellow White Black Yellow / Green COLLEGAMENTI CONNECTIONS BRANCHEMENTS CONEXIONES GIALLO - ingresso sensori YELLOW - input of sensors JAUNE - entrée capteurs AMARILLO - entrada sensores BIANCO - Neutro WHITE - Neutral BLANC - neutre...
- Page 6 Modello carico* coppia velocità alimentazione potenza tempo di giri fine lunghezza funzionamento corsa Model load* torque speed power supply power working time limit length switch range V/Hz min. n° LEX-RM20-230V 230/50 LEX-RM30-230V 230/50 LEX-RM40-230V 230/50 LEX-RM50-230V 230/50 LEX-RM20-120V 120/60 LEX-RM40-120V 120/60 LEX-HRM30-230V 230/50...
-

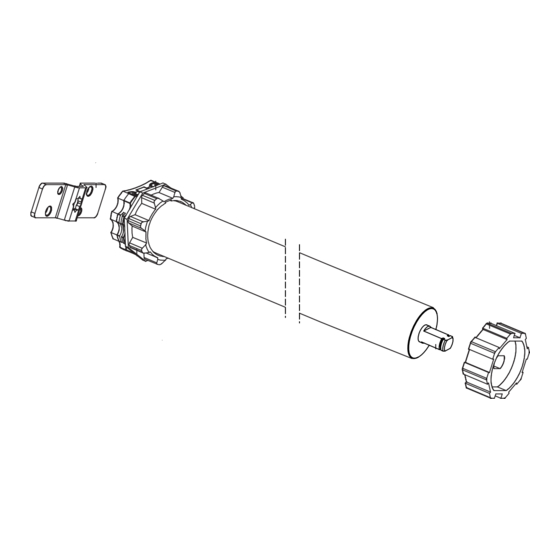

Page 7: Installation
Insert completely the motor in the roll-tube (fig.2). • Fix the roll-tube to the driving wheel with m 4 x10 screw (fig.2). (*) made in extra EU Countries on behalf of V2 S.p.A. LIMIT SWITCH ADJUSTMENT • The limit switches system is electromechanical and through a... - Page 8 TRANSMITTERS OF THE RANGE DESCRIPTION This opening system is made of a tubular motor with built-in PROTEO / DUO control unit with the following characteristics: • It is provided with a 434.15 MHz super-heterodyne radio Using a transmitter of the range PROTEO / DUO it is possible receiver.
- Page 9 SWITCH 1: STORAGE OF THE TRANSMITTERS SWITCH 3: DELETION OF ALL THE STORED TRANSMITTERS WARNING: the first transmitter stored fixes the direction of motion of the motor. To delete all the transmitters stored on the control unit it is necessary using a remote control previously stored and To store a transmitter TX1 on a blank control unit proceed proceed as follows: as follows:...
- Page 10 SWITCH 8: PROGRAMMING OF THE LEVEL OF SWITCH 10: PROGRAMMING OF THE LEVEL INTERVENTION OF THE SUN SENSOR OF TEMPERATURE The temperature can be set on 5 levels, under which the sun WARNING: to make the awning open the sun sensor has sensor must not open the awning, even if the light intensity has to detect a value higher then the set threshold value for at least 8 exceeded the level set by switch 8...
- Page 11 ARTEMIS SERIES TRANSMITTERS FAST PROGRAMMING Using a transmitter of the ARTEMIS series you can change the RAPID TRANSMITTER DATA STORAGE functions of the control unit that drives the tubular motor. CAUTION: The data storage of the first transmitter determines the direction of motion of the motor. CAUTION: If the awning has a casing carry out the data storage of the first remote control by following the procedure “TRANSMITTER DATA STORAGE”...
-
Page 12: Advanced Programming
ADVANCED PROGRAMMING TRANSMITTER DATA STORAGE To perform ADVANCED programming it is necessary to activate CAUTION: The data storage of the first transmitter the programming by following one of the following procedures. determines the direction of motion of the motor. To store a transmitter on a virgin control untit proceed as ACTIVATION OF PROGRAMMING follows: 1. - Page 13 PROGRAMMING THE WIND SENSOR 4. Press the UP+DOWN keys until the motor moves in jerks which confirms it is entering the programming phase. INTERVENTION THRESHOLD The number of jerks made by the motor corresponds to the level currently set: CAUTION: to trigger the closing of the sunshade, the wind 1 jerk = level 1 = 2 klux sensor must detect a value greater than the set threshold for at 2 jerks = level 2 = 5 klux...
- Page 14 TRANSMITTERS OF THE RANGE ADVANCED PROGRAMMING ADLER To perform ADVANCED programming it is necessary to remove the cover plate of the remote control and carefully follow the dedicated procedures for the various functions. Using a transmitter of the range ADLER it is possible changing the functions of the control unit controlling the tubular motor.
- Page 15 STORAGE OF THE TRANSMITTERS To delete all the codes by means of a transmitter non- stored, proceed as follows: 1. Switch off power supply of the system. WARNING: the first transmitter stored fixes the direction of motion of the motor. 2.
- Page 16 PROGRAMMING OF THE LEVEL OF PROGRAMMING OF THE LEVEL OF INTERVENTION OF THE SUN SENSOR TEMPERATURE The temperature can be set on 5 levels, under which the sun WARNING: to make the awning open the sun sensor has sensor must not open the awning, even if the light intensity has to detect a value higher then the set threshold value for at least 8 exceeded the level set.
- Page 17 TRANSMITTERS OF THE RANGE STORAGE OF THE TRANSMITTERS DEV-T1 WARNING: the first transmitter stored fixes the direction of motion of the motor. Using a DEV-T1 series transmitter it is possible to activate the transmitter storage. To store a transmitter TX1 on a blank control unit proceed as follows: 1.
