KidKraft 62028 Assembly Instructions

© 2009 KidKraft, LP
Please retain this information for future reference
HARDWARE
Parts List:
A. Bolt x 4
(11/16 in, 18mm)
B. Bolt x 2
1
x 4
(1 1/16 in, 27mm)
C. Screw x 8
(5/8 in, 15mm)
D. Yellow Knob x 4
E. Blue Knob x 2
F. Red Knob x 8
G. Green Knob x 2
Dry Erase Board
Allen Wrench x 1
The following tool (not
included) is required
for assembly:
Phillips screwdriver
R
CAUTION: Adult Assembly Required. Hardware
contains small screws with sharp points. Keep
unassembled parts out of reach of small children.

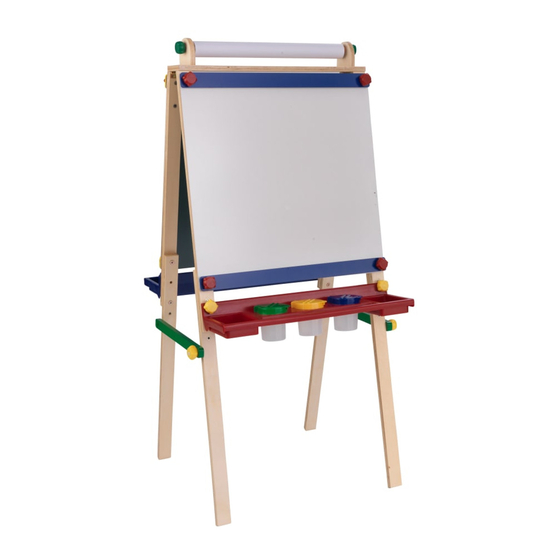

Artist Easel with Paper Roll
14
x 2
3
x 2
x 2
2
4
x 2
7
Chalkboard
6
8
10
9
11
13
WARNING: CHOKING HAZARD
Unassembled parts may be a choking hazard
to children 3 years of age and younger.
Assembly Instructions
Step 1
2
A
x 2
5 Blue
1
Step 3
x 2
Yellow
E
12
x1 Blue
x1 Yellow (Repeat Steps 1-3)
x1 Green
USE AND MAINTENANCE:
-Use on level surfaces only
-Please check assembly at regular intervals, and
frequently tighten hardware if necessary. If maintenance
is not carried out, the product could cease to function
properly.
To order replacement parts, please visit www.kidkraft.com
Step 2
3
A
1
Step 4
14
B
11
Attention: The easel's dry-erase
surface should be cleaned BY AN
ADULT with a Windex ® -like cleaner
after each use. This is the best way to
wipe the surface completely clean.
Item # 62028
C
C
12
Customer Service
1-800-933-0771
www.kidkraft.com
1
