Graham Field Lumex TP332 Application Instructions

Note: The most current version of these instructions can be found online at
WARNING: Important! Read and understand these instructions before assembling or using
the Padded Toileting Sling. If you do not understand any part of these warnings, cautions or
instructions, contact a healthcare professional for direction in the use of this product. If the
Padded Toileting Sling is not properly applied, personal injury and damage to the Padded Toi-
leting Sling could result.
WARNING: If components are damaged or missing, contact your dealer immediately.
WARNING: Carefully inspect the sling weekly for wear and damage to seams, fabric, straps,
and strap loops. Torn, cut, frayed or broken slings can fail, resulting in serious personal injury
to the user. Use only slings that are in good condition. Discard and destroy old, unusable
slings.
WARNING: The Padded Toileting Sling has a maximum weight capacity of 400 lb. DO NOT ex-
ceed the maximum weight capacity.
WARNING: GF Health Products, Inc. assumes no responsibility for any damage or injury
caused by improper application or use of this product.

APPLICATION

1. Check the patient's weight. Ensure that the patient's
weight does not exceed the Toileting Sling's maximum
weight capacity.
2. Review the following procedures carefully before
attempting lift; call Graham-Field Technical Support at
800-347-5678 with any questions.
3. See the Sling Loop Options table at right to determine
the appropriate position.

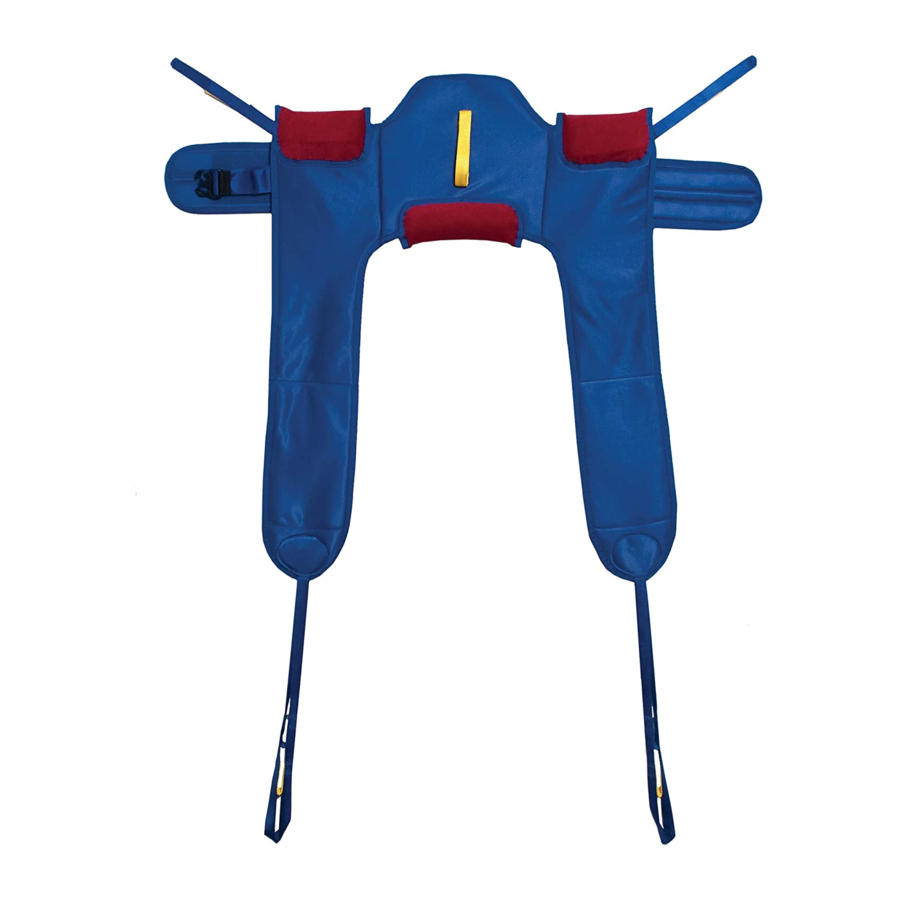

4. Position the sling under and behind the patient's back
with color adjustment strap on outside. Position the red
padded sections next to A and B under patient's arms
as shown in Figure 2.
5. Cross hook and loop belt E over patient's chest and
fasten as shown in Figure 2.
6. Loop straps C and D around and under patient's legs as
shown in Figure 2.
7. Keeping patient's arms outside the sling loops, hook
loops A and B to spreader bar hooks a and b as shown
in Figure 3.
8. Cross over C and D, placing loop C through loop D as
shown in Figure 4.
9. Hook loops C and D to spreader bar hooks c and d as
shown in Figure 3.
10. Do not lock caster brakes, in order to allow the lift to
properly balance weight.
11. Proceed with lift and transfer as shown in Figure 5.
TP332-INS-LAB-RevA09

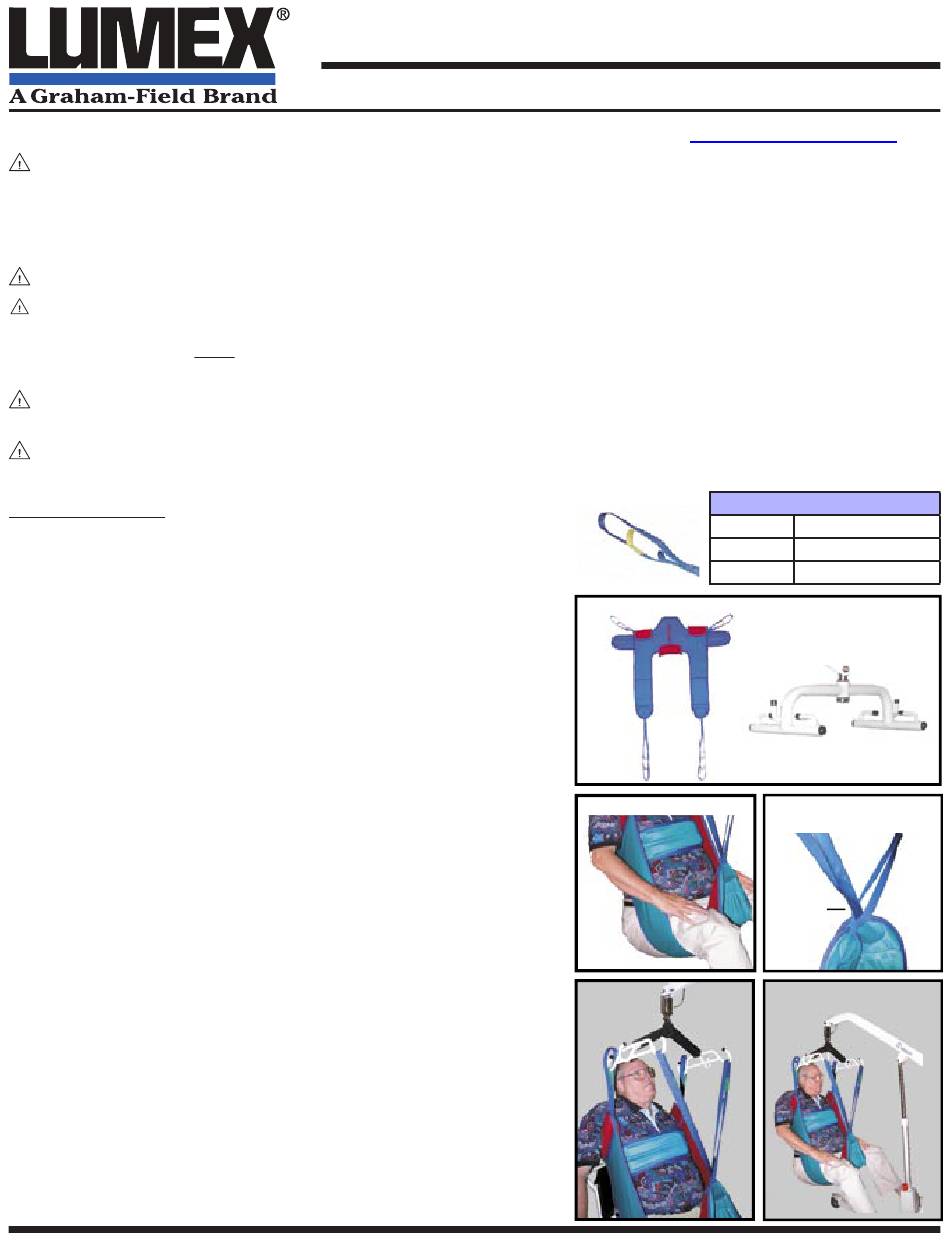

TP332 / TP333 PADDED TOILETING SLING:
APPLICATION INSTRUCTIONS
PLEASE SAVE THESE INSTRUCTIONS FOR FUTURE USE
www.grahamfield.com
Long loop
Long loop
Center loop
Center loop
Short loop
Short loop
Figure 1
A
D
C
Figure 2
E
Figure 3
D
B
A
Sling Loop Options
reclined position
semi-reclined position
most upright position
B
a b c
d
Figure 4
D C
Close-up
of step 8
Figure 5
C
