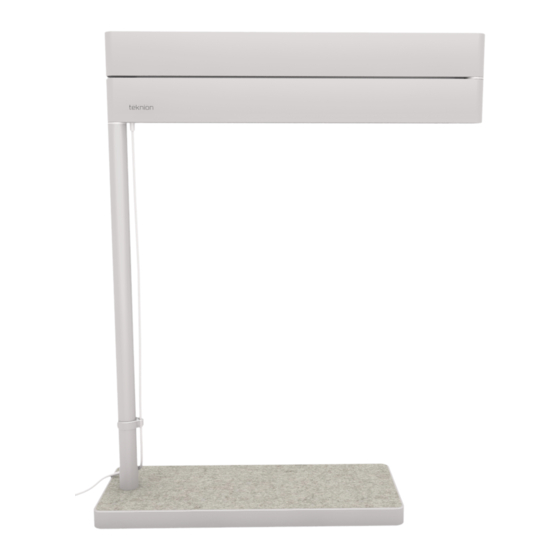

Sanna Lightbar - Desk Edge Mount for IC (YLSC)
Sanna Lightbar Desk Edge Mount (YLSC)
NOTE 1: For further information on
optimizing the Cerebro assets, please refer
to the Teknion Navigate User Guide .
NOTE 2: Do NOT remove Bumper Strip
from Light Head util AFTER the Light is
fully assembled
Installation Guides
B
C
D
D
E
A
Date:
Sep 2019
COM_603b
Part and Product Identification
A - Part name
part number + quantity
A -Lightbar x1
B - Stem x1
C - Cable Clips x1
Top Clamp
D - Desk Edge Clamp x1
Bottom Clamp
E - Bumper Strip x1
Page No:
1 of 5
Rev. No: 01
