Summary of Contents for Greentek EMF 990

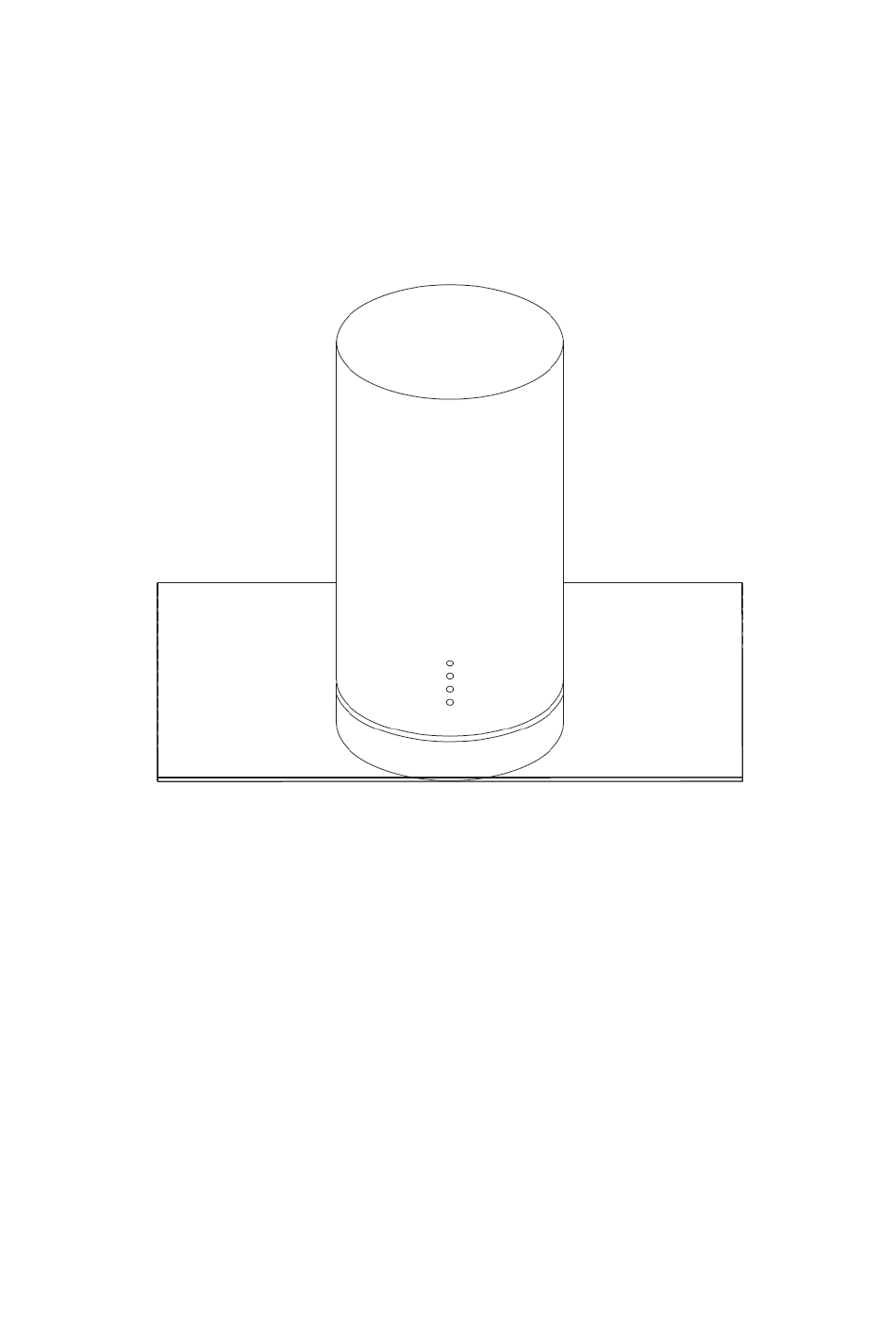

- Page 1 Instruction Manual EMF 990...
- Page 2 CONTENT 1……………………………………….Warning 2……………………………………….Function and Feature 3……………………………………….Installation 4………………………………………..Maintenance 5…………………………………..……Exchange the lamp 6…………………………………………Energy data sheet...
- Page 3 Warning Keep your children from using the cooker hood. Your cooker hood is for domestic use only, not suitable for barbecue, roast shop and other commercial use. Any installation work must be carried out by a qualified electrician or competent person.
- Page 4 Function and Feature The cooker hood is made of high quality materials with streamlined design accordingly to technical and physical engineering theory, high end and luxury with age aesthetic feeling, also there are kinds of styles for your option to perfect your kitchen. ...
- Page 5 Installation 1. The ceiling must can bear at least 120kgs weight, and the thickness of the ceiling must be ≧30MM. 2. The cooker hood should be placed at a distance of 65-75cm from the cooking surface for the best effect. See Pic 1.
- Page 6 4. Be careful to turn the screws on grease filter and pick the grease filter out. See pic.3. 5. Use the screwdriver turn out the 4pcs of M5*22mm round screws and the ST3*12mm big flat on the connect wire box, take apart the lamp’s wire from the box, then take out the small round body.
- Page 7 9. According pic.11, calculated the length of the angle iron, 24pcs M4*10 big flat screws and M4 nut with gasket will be used to connect the angle iron and another angle iron ( the overlap length of angle iron not less 100MM). See pic.10.
- Page 8 12. See pic.14. Put the inner chimney into hood. 13. See pic.15. Hang on the hood, put the extensible pipe on the ceiling, after that use 6pcs of M4*10mm big flat screws and M4 nut with gasket will be used to connect the angle iron to the hanging board. 14.
- Page 9 MAINTENANCE The cleaning of the carbon grease filter mesh (PS: when you clean the hood, please make sure the power is cut off) The way of take off the hood’s grease filter: be careful to take off the grease filter screws in the anticlockwise by hand, drag down and pick the grease filter out.
- Page 10 The way of changing lamp: Make sure that the hood is shut off before changing. The way of take off the hood’s grease filter: be careful to take off the grease filter screws in the anticlockwise by hand, drag down and pick the grease filter out.
- Page 11 Product data sheet for household cooker hoods accordingly to regulation (EU). No. 65/2014 and 66/2014 Symbol Value Unit Model identification EMF 990 Annual Energy Consumption 90,2 kWh/a hood Time increase factor Fluid Dynamic Efficiency 17,7 hood Energy Efficiency Index 78,9...
