Berger & Schroeter 60001 Manual

This winch is designed to pull and track loads up to 800 kg. Never hoist loads with this
winch
Read this manual carefully!
Use safety gloves while using the winch!
Follow safety instruction!
Read this manual carefully and store it for later use of the winch.
This manual provides hints and advices to detect and solve problems with the winch and
helps to order spare parts.
Technical datas:
Enginegroup afte DIN 15020
Capacity
Rope diameter
Capacity with 1 layer
Capacity last layer
Rope length
Max layers
Necessary crank strength
Average lifting with
every crank revolution
Measurements
Locking device
This winch comes completely with crank and nut
This winch is designed to pull and track moveable loads (rolling- swimming and gliding
loads) up to 800 daN
This winch must not be used to hoist loads.
This winch must not be used in explosion areas.
This winch must not be used from a car which is in move.
This winch must not be used with motordrive. This winch is not designed for permanent
work.
Changes and adding of other devices are not allowed.

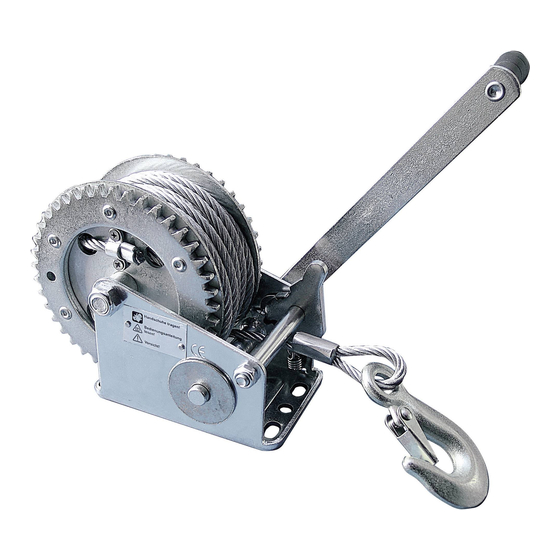

Manual for
Handwinch 800 kg
Art.-Nro- 60001
EM1
800 daN (is according 800 kg)
6 mm, DIN 3060-SE-znk 2160-sz spa
800 daN
350 daN
10 m
8
22 daN
aprox. 55 mm
140 x 155 x 200 mm
gearwheel blocking
