Summary of Contents for PEAKnx PNX-005-A17-00001

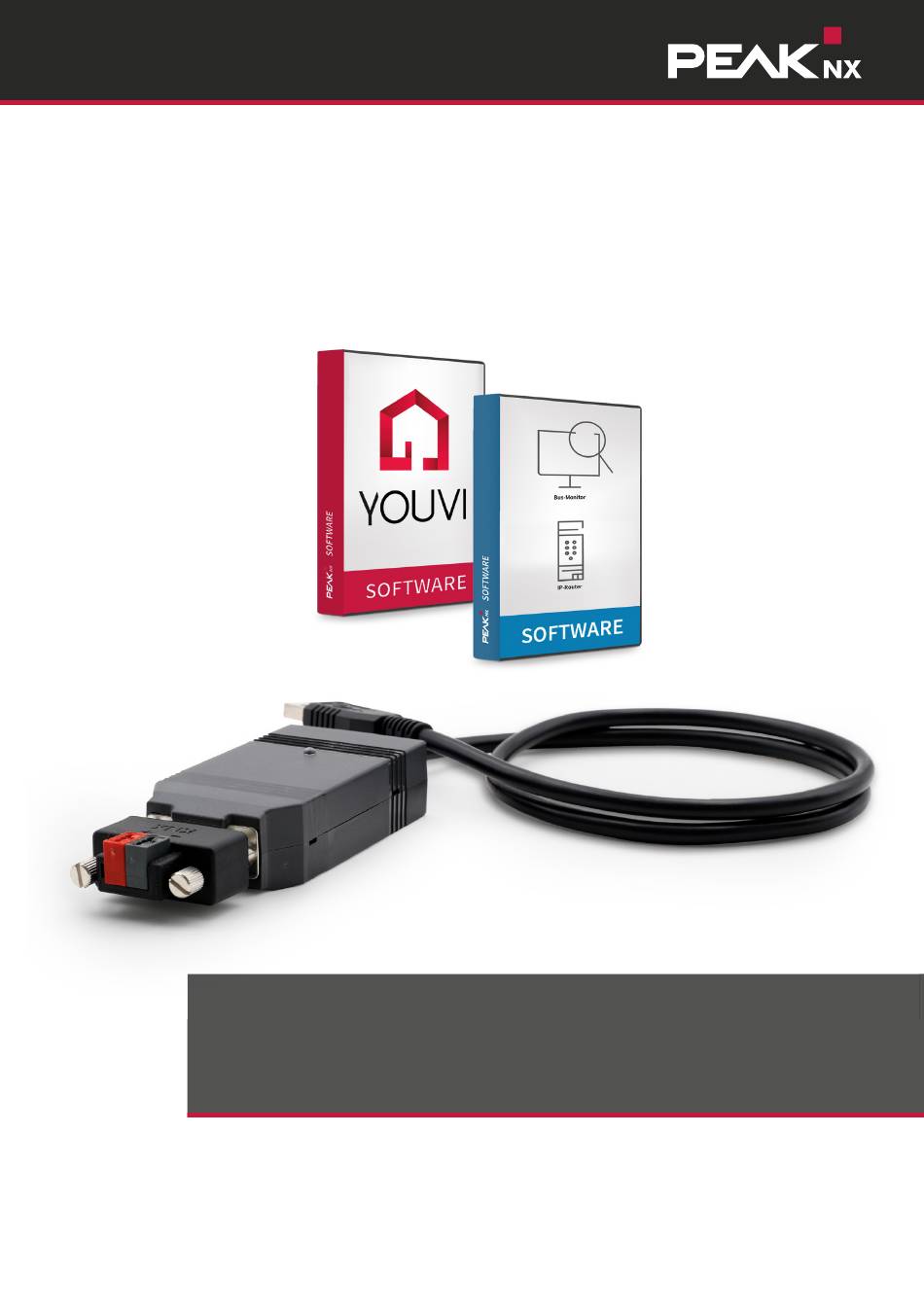

- Page 1 USB-Connector User Manual...
- Page 2 USB-Connector, User Manual Products Item numbers USB-Connector and adapter to KNX- PNX-005-A17-00001, PNX-005-A17-00002, WAGO 243-211 and top hat rail PNX-005-A17-00004, PNX-005-A18-00005, PNX-019- A17-00018, PNX-019-A17-00020, PNX-019-A19-00068, PNX-019-A19-00073 All other product names mentioned in this document may be the trademarks or registered trademarks of their respective companies. They are not explicitly marked by “™”...
-
Page 3: Table Of Contents
About PEAKnx ........ -
Page 4: Product Description
■ Ethernet connection (For the use of the IP Router) Note: The USB-Connector only supports Windows as the operating system.PEAKnx does not guarantee that the software and hardware will function without problems in conjunction with other operating systems or software. -
Page 5: Included Software
USB-Connector, User Manual ■ Included software (available on USB flash drive) ж Bus Monitor ж IP Router ж ETS Integration ■ User manual (this document) ■ YOUVI Quick Start Guide (available on USB flash drive) *Includes an adapter cable (length: 2 m) to connect the DIN rail adapter to the USB-Connec- tor and a DIN rail adapter 2 Included software The scope of delivery includes a USB flash drive containing all the software needed to... -
Page 6: Standalone Software (Bus Monitor, Ip Router)
KNX network can be stored as log files. Note: The Bus Monitor is only compatible with the USB-Connector from PEAKnx. 2.2.2 IP Router The IP Router software sets up a connection between the KNX bus and the IP network using the USB-Connector. -
Page 7: Power Supply
USB-Connector, User Manual 3 Power supply The device is powered by the USB port and requires no external power supply. In general, the device is operated internally with a supply voltage of 5 V DC. 4 KNX bus connection 4.1 KNX connection adapter The adapter with which the USB-Connector is connected to the KNX bus via the D-Sub 9P plug, exists in an encapsulated version, without a plastic housing or as DIN rail adapter. -
Page 8: Start-Up
5.1 Installing the Bus Monitor and IP Router software To install one or both components, proceed as follows: ■ Run the “PEAKnx USB Connector” application stored on the USB flash drive to start the installation wizard. ■ Open the tab “Install”. -
Page 9: Connecting And Disconnecting The Hardware
USB-Connector, User Manual For the installation proceed as follows: ■ Close ETS. ■ Run the “PEAKnx USB Connector” application stored on the USB flash drive to start the installation wizard. ■ Open the tab “Install”. ■ Click on “ETS Integration” > “Execute Now”. -
Page 10: Operation
Green Fast blinking USB-Connector is receiving data USB-Connector is not plugged in or out of order 7 Technical support If you experience problems with your USB-Connector, please contact our PEAKnx Support Team: ж Mail: support@peaknx.com ж Create a Support Ticket: support.peaknx.com ж... - Page 11 USB-Connector, User Manual Software requirements ETS compatible ETS 5 Operating system Windows 10, 8.1, 7 (32/64-Bit) 1 GHz Memory (RAM) 1 GB (32 Bit)/2GB (64 Bit) Hard disc space 1 GB Grafics DirectX 9 or newer .NET Version ID 4.5.1 (included in Windows 8.1/10) Measures Size of the interface 86 x 42.5 x 20.5 mm...
-
Page 12: Dimension Drawing Of The Usb-Connector
USB-Connector, User Manual Dimension drawing of the USB-Connector D-Sub-Pin-Assignment... -
Page 13: Subject To Change Without Notice
USB-Connector, User Manual Subject to change without notice Content changes in this documentation, which serve the technical progress, are made without prior notice. This documentation has been prepared with great care and will be revi- sed at regular intervals. Nevertheless, we cannot guarantee complete accuracy. All known errors are eliminated in new editions. - Page 14 USB-Connector, User Manual EU Declaration of Conformity This declaration applies to the following product: Product name: USB-Connector Item number(s): PNX-005-A17-00001 Manufacturer: DOGAWIST Investment GmbH Otto-Roehm-Strasse 69 64293 Darmstadt Germany We declare under our sole responsibility that the mentioned product is in conformity with...
-
Page 15: About Peaknx
25 years of experience in hardware and software development. Through a broad network of certified partners, PEAKnx also offers the associated services - from consulting to the installation and implementation of automation projects. The goal is to make home and building automation comfortable, cost-saving and future-proof through innovative solutions. - Page 16 www.peaknx.com...
