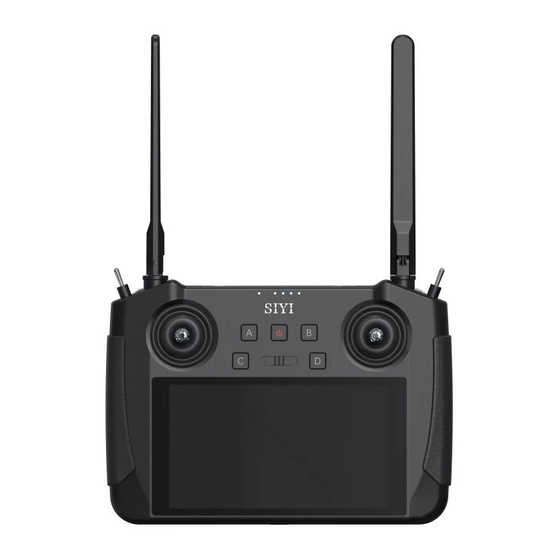

SIYI MK15 User Manual

Mini handheld ground station

Hide thumbs Also See for MK15:

User manual (114 pages)

User manual (97 pages)

User manual (151 pages)

Table Of Contents

Table of Contents

Quick Links

MK15 User Manual V1.0

MK15

MINI HANDHELD GROUND STATION

USER MANUAL

V1.0

Apr 2021

2021 SIYI Technology Copyright

Table of Contents

Need help?

Do you have a question about the MK15 and is the answer not in the manual?

Questions and answers

Manikandan

January 24, 2025

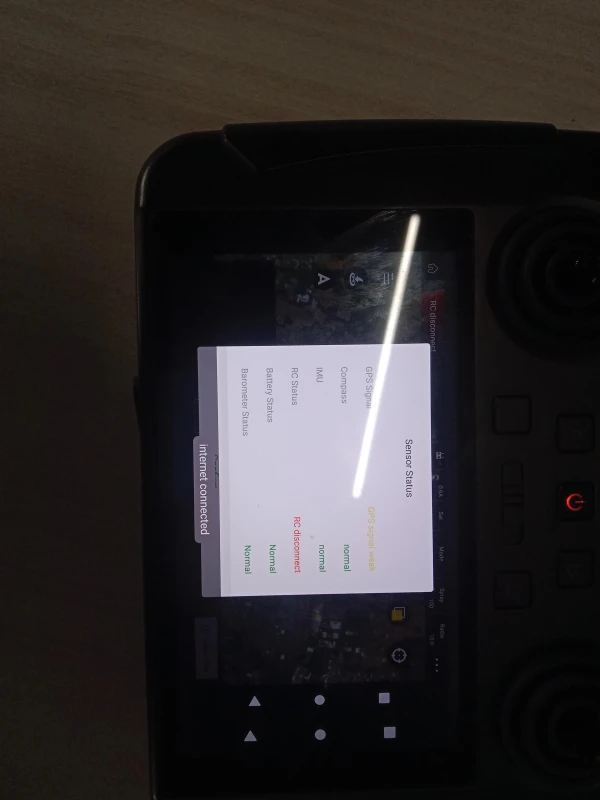

Why MK15 remote disconnect that remote status active condition?

1 comments:

Mr. Anderson

February 10, 2025

The SIYI MK15 remote shows an active status condition based on the status indicators, which use different colors and blinking frequencies to indicate the system’s working or abnormal status. A solid green indicator means perfect communication, receiving 100% of the data package, while green blinking indicates communication activity.

This answer is automatically generated

Summary of Contents for SIYI MK15

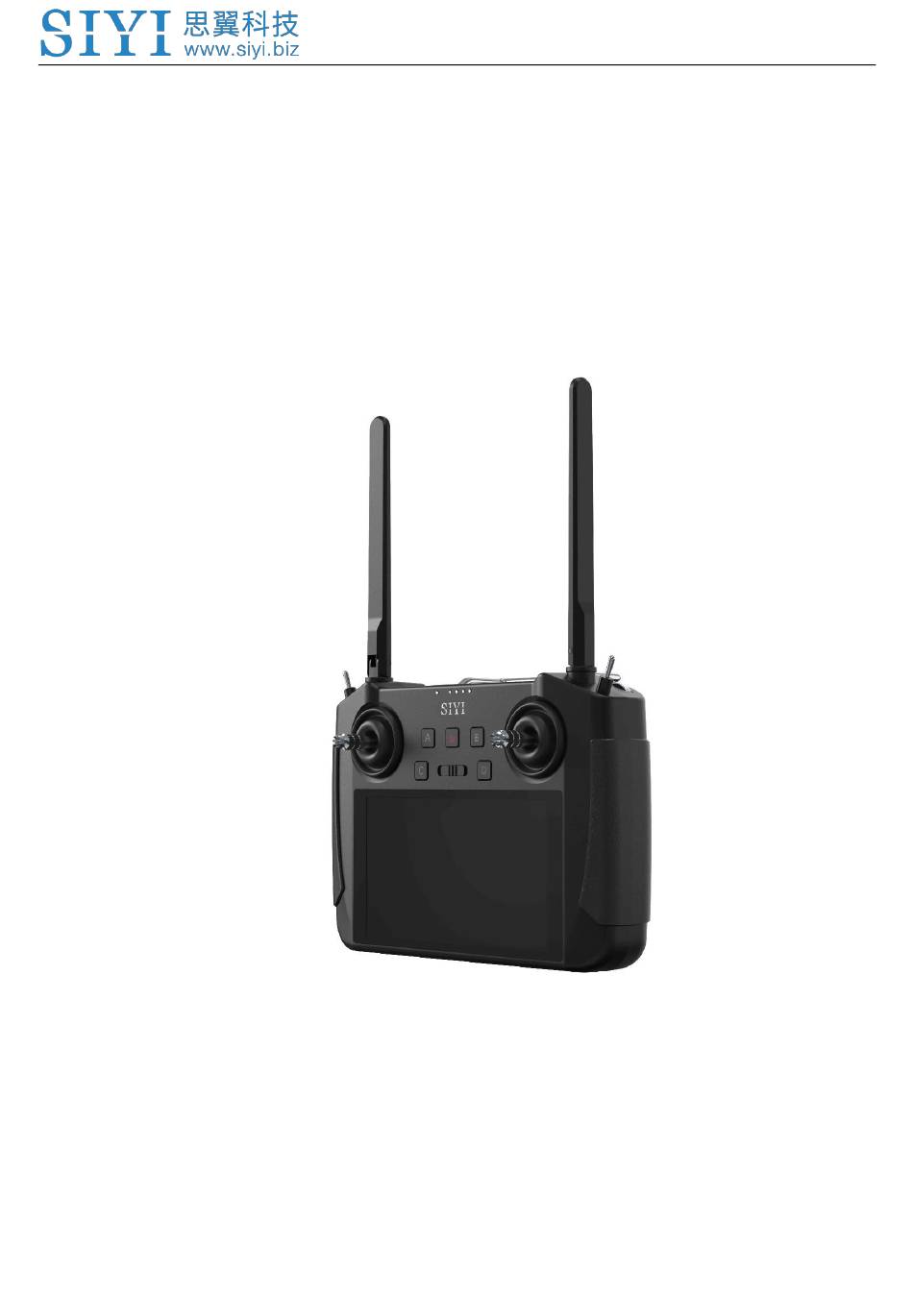

Page 1 MK15 User Manual V1.0 MK15 MINI HANDHELD GROUND STATION USER MANUAL V1.0 Apr 2021 2021 SIYI Technology Copyright...
Page 2 MK15 User Manual V1.0 Thank you for purchasing SIYI Technology’s product. MK15 is a 15-kilometer range Android smart controller with dual 1080p FPV, based on the full high-definition image transmission technology, which is completely and independently developed by SIYI Technology. The system is deeply optimized and integrated with Qualcomm 8-core CPU platform.
Page 3 MK15 User Manual V1.0 SIYI User Group - Facebook SIYI YouTube Channel (https://www.youtube.com/channel/UC0vdyQDSRr3fiCffNKnYimA) SIYI Official Aliexpress Store (https://www.aliexpress.com/store/911142095?spm=a2g0o.sto re_home.1000001.11.22595727l31Low) 2021 SIYI Technology Copyright...
Page 4: Table Of Contents
Icon Definition ..............................1 Flight Safety ............................... 1 Battery ................................3 Memory Card (SD/TF) ............................3 How to Use SIM Card on MK15........................4 Precautions on Storage/Carrying/Recycling....................5 1 PRODUCT INTRODUCTION ........................... 6 1.1 Product Features ............................6 1.2 Parts ................................9 1.2.1 At a Glance ............................
Page 5 4.2 Communication with GCS through Bluetooth ..................44 4.3 Solutions to Disconnection........................44 5 IMAGE TRANSMISSION ..........................46 5.1 Using SIYI IP Cameras ..........................46 5.2 Using Third-Party IP Cameras / Pods ....................46 5.3 Using HDMI Cameras / Pods ........................47 5.4 Common IP Addresses ..........................
Page 6 MK15 User Manual V1.0 8.2 Warranty ..............................54 8.2.1 7-Day Return & Refund ........................54 8.2.2 15-Day Replacement ......................... 55 8.2.3 1-Year Warranty Repair ........................57 2021 SIYI Technology Copyright...
Page 7: Read Tips
Mandatory Mark Flight Safety MK15 Mini Handheld Ground Station is designed for professional application in specific industries, users who approaches to the device should have at least the basic knowledge to operate it. Irregular or irresponsible manipulations to the device may cause damage, property loss, or human injuries.
Page 8 MK15 User Manual V1.0 Do not use any SIYI radio system to operate your aircraft/vehicle/model at places with intensive crowd (a square, a park), or at places with many obstructions (a street, a parking lot), or in fields with strong magnetic or interference (an electricity plant, a radar station, railways), or in any other fields where an irregular flight/operation may cause property loss or human injuries.
Page 9: Battery
Do not charge the transmitter when temperature is high, or battery temperature is over 60℃. Memory Card (SD/TF) The memory card slot at bottom MK15 transmitter supports reading from and writing into high-speed SD/TF card. Please mind the precautions below. 2021 SIYI Technology, All Rights Reserved...
Page 10: How To Use Sim Card On Mk15
How to Use SIM Card on MK15 MK15 supports 4G network, like a smartphone. You can put in an SIM card into the transmitter to activate the function. Before putting in an SIM card into MK15 transmitter, please check if it supports your local cellular network.
Page 11: Precautions On Storage/Carrying/Recycling
LTE TDD: B34/B38/B39/B40/B41 EVDO/CDMA: BC0 CAUTION MK15 4G function is not certified. Please refer to your local radio laws or wireless regulations before activating 4G network. Precautions on Storage/Carrying/Recycling When your SIYI radio system is stand idle, or you are bringing it outdoors, or the system reached service life, then please do read the precautions below.
Page 12: Product Introduction
1.1 Product Features 15KM 1080P Image Transmission Once again SIYI made a breakthrough, applying this brand new and cutting edge high-definition image transmission technology on MK15 successfully. The technology comes with a smart ability to adapt its transmission to better frequency bands, which means it always goes to work on the band with least interference.
Page 13 MK15 User Manual V1.0 thermal imaging camera through one link. *The 180ms latency is an average result measured by using SIYI standard IP camera under the following conditions: H.265 format, 720p @ 30 fps, displayed in QGC v4.1 (low-latency mode): end-to-end latency is between 130 and 180ms.
Page 14 *MK15 transmitter supports max 30W PD fast charging, which can charge 95% battery level in three hours. *The standard charger coming with all MK15 combos is PD 20W. The PD 30W charger is optional. 2021 SIYI Technology, All Rights Reserved...
Page 17: Button/Switch Types And Default Channel Definitions
MK15 User Manual V1.0 1.2.2 Button/Switch Types and Default Channel Definitions MK15 transmitter owes 13 physical channels and 16 channels in total. Channel No. Physical Channel Type Default Mapping Aileron Joystick J1 Elevator (Mode 2) Joystick J2 Throttle (Mode 2)
Page 20: Ports On Mk15 Receiver
MK15 User Manual V1.0 1.2.3 Ports on MK15 Receiver 1.3 Technical Specification Overall Max Transmission 15 km Distance (unobstructed, free of interference) 3.5 km AG Control Range (flying at 3-meter height) 2021 SIYI Technology, All Rights Reserved...
Page 21 Mobile Network: SIM Card Slot External Storage: TF Card Slot Interface & Ports Tripod Connect: 1/4-inch Screw Hole Video Output: Standard HDMI External RTK: DATA (4-Pin) Data Transfer: USB-A Waterproof Level IP53 Working Temperature -10℃ ~ 55℃ 2021 SIYI Technology, All Rights Reserved...
Page 22 106 x 25 x 41 mm Weight 108 g Searchlight Power Consumption Luminous Flux 1 W / 120 ~ 140 lm LED Type Transparent LED Angle 120° Waterproof Level IP67 Working Temperature -10℃ ~ 55℃ 2021 SIYI Technology, All Rights Reserved...
Page 23: Packing List
Enterprise Enterprise FPV Combo Dual FPV Combo Standard Combo HDMI Combo 1 x MK15 AG Transmitter 1 x MK15 Enterprise Transmitter 2 x Standard Antenna 2 x Standard Antenna 1 x MK15 Receiver 2 x Standard Antenna 2 x Long-Range...
Page 25: Indicator Definitions
FPV Hub alone to work with your available MK15 combo and IP cameras / pods. The two video streams will display in the same screen in SIYI FPV app, or some specific ground station software. The display can be switched.
Page 26: Transmitter Indicator
Yellow-Red Blinks: Transmitter high-temperature alert, level three. Solid Green: Perfect communication, 100% data package received. Green Blinks: Blinking speed indicates MK15 system’s signal strength. The faster it blinks, the worse the signal is. Slow Green Blinks: 95% to 99% data package received.
Page 27: Receiver Indicator
Yellow Blinks: Low voltage alert (voltage input from PMU is lower than 12V). Solid Green: Perfect communication, 100% data package received. Green Blinks: Blinking speed indicates MK15 system’s signal strength. The faster it blinks, the worse the signal is. Slow Green Blinks: 95% to 99% data package received.
Page 28: Get Ready To Use Mk15
Power Off: Long press. When MK15 transmitter is working, press and hold the power button for about two seconds, Android system will pop up a window with some icons. Touch the power- off icon to power off MK15 transmitter.
Page 29: Charging
Screen Off: When MK15 transmitter is working, press the power button once, transmitter monitor will be off for saving battery power. 2.1.2 Charging You can charge MK15 transmitter only when it is powered off and using the original PD fast charger. Steps 1.
Page 31: Siyi Tx App
MK15 User Manual V1.0 3 SIYI TX APP Users can configure MK15 transmitter in the pre-installed application “SIYI TX”. Mark This chapter was made according to “SIYI TX” v1.1.166. 2021 SIYI Technology, All Rights Reserved...
Page 32: Channels
MK15 User Manual V1.0 3.1 Channels Channel settings of End Point, Middle Point, Channel Reverse, and Channel Mapping. 3.1.1 End Point MK15 transmitter’s default End Point range is between -100 and 100. 2021 SIYI Technology, All Rights Reserved...
Page 33: Middle Point
3.1.2 Middle Point The default Middle Point value is “0”. Select a target channel and input your required middle point value. It’s done. 3.1.3 Channel Reverse Channel Reverse is to reverse a channel’s output direction. 2021 SIYI Technology, All Rights Reserved...
Page 34: Channel Mapping
Select a target channel. Then touch the “Normal” or “Reversed” button. It’s done. 3.1.4 Channel Mapping MK15 transmitter has 13 physical channels and 16 communicational channels. Users are allowed to define or map the physical channels (buttons, switches, joysticks) to communicational channels freely.
Page 35: Datalink
About Datalink Settings Device ID: Display the device ID of the integrated Bluetooth module in MK15 transmitter. It shows as the Bluetooth name before matching. Connection: Supported datalink ports in MK15 transmitter.
Page 36: Connection
UART: Telemetry data goes through the built-in Android UART port. *Only for specific GCS, such as BOYING, JIYI, and VKFLY. *Developers can acquire SDK from SIYI to use the port for their GCS. USB COM: Telemetry data goes through the built-in CP2102 port.
Page 37: Flight Controller
Currently supported flight controller models are: JIYI (K3A or K++), BOYING (Paladin), PIX, VKFLY (V7AG), and Customized flight controllers. Mark Please make sure that MK15 transmitter and received are bound before switching flight controller type. 3.2.3 Baud Rate If your flight controller model was not found in the list, please choose “Custom” and manually configure the baud rate of your flight controller in this page.
Page 38: System
MK15 User Manual V1.0 Mark Please make sure that MK15 transmitter and received are bound before configuring baud rate, otherwise it would fail. 3.3 System In “System Settings” page, you can bind transmitter with receiver, turn on or turn off frequency self-adapting function, switch throttle type, and check production date.
Page 39: Bind
2. Transmitter status indictor will turn to “Red Fast Blinking”. In “Bind” menu, it displays “Binding”. 3. Press and hold the binding button on MK15 receiver for about two seconds, receiver status indicator will turn to “Red Fast Blinking” as well.
Page 40: Throttle Type
MK15 User Manual V1.0 Mark After turning on the function in “SIYI TX”, please restart MK15 transmitter, otherwise it won’t work. 3.3.3 Throttle Type Switch throttle joystick type. Available types are: Mode 1, Mode 2, Mode 3, and Custom. 3.3.4 Production Date Displays the production finished date of your MK15 transmitter.
Page 41: Failsafe
MK15 User Manual V1.0 link’s real-time status in numbers and percentage. About Link Status Loss Rate: Loss percentage of data package which failed to be received by MK15 transmitter per second. Received Pack: Quantity of data package which are successfully received by MK15 transmitter per second.
Page 42 Failsafe function is to avoid model crash by keeping receiver outputting the pre- configured channel value when the receiver lost communication with transmitter. Please follow the steps below to configure your MK15 system with Failsafe function. 1. Make sure that MK15 transmitter is bound to receiver.
Page 43 4. If you require a specific value in the channel, please turn on Failsafe switch first and turn the “Hold” button to “Custom”. Then input your required channel value. 5. After configuration, the channel would output the value if receiver lost communication to transmitter. 2021 SIYI Technology, All Rights Reserved...
Page 44: Calibration
If your flight controller communicates with your MK15 receiver through S.Bus protocol, then it is unnecessary to configure your MK15 system with Failsafe function(unless it is specially required by flight controller to trigger Failsafe function and switch to RTH, by holding a specific value in a channel).
Page 45 4. Calibration of middle points are finished. The next step is to calibrate maximum and minimum positions. Please follow the tips again to push each joystick to its maximum/minimum positions on all four dimensions. 2021 SIYI Technology, All Rights Reserved...
Page 46 MK15 User Manual V1.0 Up: 0, 100 Down: 0, -100 Left: -100, 0 Right: 100, 0 Then touch “Finish”. 5. The Calibration page will turn to its initial page. Calibration is finished. 2021 SIYI Technology, All Rights Reserved...
Page 47: Buttons
If the joysticks do not stay in middle (coordinates are not (0, 0)) or do not output maximum/minimum value (-100 or 100), you shall calibrate them immediately. 3.7 Buttons The way that the four buttons (A, B, C, D) on MK15 transmitter works can be adjusted by software. About Buttons Lock (Self-Locking): After pressing, the button will bounce back but the channel will keep outputting 100.
Page 48 Press and hold the button, which means the channel outputs 100, LED under the button will light on. If the button is under “Self-Locking” status, the LED will be on still until the next pressing. 2021 SIYI Technology, All Rights Reserved...
Page 49: Datalinks
4.1 Communication with GCS through USB COM Let’s take QGroundControl as an example. 1. In “SIYI TX” app, go to “Datalink”, and choose “USB COM” in “Connection”. 2. Open QGC, the software will pop up a window to ask if “Allow QGroundControl to access CP2102 USB to UART Bridge Controller?”...
Page 50: Communication With Gcs Through Bluetooth
“Connect”. 4. Connection is done. 4.3 Solutions to Disconnection If MK15 system failed to establish telemetry link with GCS, please try to follow the steps below to investigate possible reasons. 1. Confirm if MK15 transmitter is bound with MK15 receiver.
Page 51 MK15 User Manual V1.0 3. In “SIYI TX” app, go to “Status” page to check connection status between MK15 transmitter and MK15 receiver. When connection is normal, data “download” is not 0. If it is “0”, please go back to check step 1 and 2.
Page 52: Image Transmission
HD image transmission. It connects to most IP cameras and pods on market and can connect to HDMI cameras/pods through an HDMI converter. Please refer to the diagram in Chapter 1.5 of this manual to connect your SIYI IP Camera, Third-Party IP Camera/Pod, or HDMI Camera/Pod with MK15 receiver.
Page 53: Using Hdmi Cameras / Pods
4. Go back to QGC home page to check image display. 5.3 Using HDMI Cameras / Pods If you use SIYI original HDMI converter to connect MK15 receiver with your HDMI camera, please refer to the steps below for acquiring image transmission.
Page 54: Common Ip Addresses
5.4 Common IP Addresses MK15 Receiver IP Address: 192.168.144.11 MK15 Transmitter IP Address: 192.168.144.12 SIYI IP Camera A’s IP Address: 192.168.144.25 SIYI IP Camera B’s IP Address: 192.168.144.25 SIYI HDMI Converter’s IP Address: 192.168.144.25 SIYI IP Camera A’s RTSP Address: rtsp://192.168.144.25:8554/main.264 SIYI IP Camera B’s RTSP Address: rtsp://192.168.144.26:8554/main.264...
Page 55: Android Os
6.2 Import and Install App 6.2.1 Through TF Card Save files into your TF card and insert the card into the TF card slot at bottom MK15 transmitter. Copy the files from the TF card to MK15 system storage, then go to “Files”...
Page 56: Through Usb Drive
MK15 User Manual V1.0 6.3.2 Through USB Drive Save files into your U disk and insert the card into the USB port on top of MK15 transmitter. Copy the files from your USB disk to MK15 system storage, then go to “Files”...
Page 57: Firmware Upgrade
Before upgrading, it is necessary to prepare the tools, software, and firmware below. ⚫ SIYI Assistant (PC Software) ⚫ MK15 Transmitter Firmware ⚫ MK15 Receiver Firmware Mark Above software and firmware can be downloaded from SIYI Official website or downloaded from SIYI MK15 Google Drive (https://drive.google.com/drive/folders/1yFk_Wb039xnR1uEdDX4iIys6J1CoyCk4?usp=s...
Page 58 3. Run “SIYI Assistant” and switch to “Upgrade” page to check the MK15 transmitter’s current firmware version. 4. If MK15 transmitter’s firmware is not the latest, then click the “Select File” button after “Transmitter” line to import the latest transmitter firmware. Then click “Upgrade”...
Page 59: After-Sale Service
⚫ Product Defect ⚫ Product Damage SIYI products under the two situations can be sent back to SIYI for repairing. Defect products with valid warranty can be repaired for free. Defect products without valid warranty or damaged products should be charged of repair fees after repairing.
Page 60: Warranty
It is requested beyond seven (7) calendar days of receiving a product. A product sent to SIYI for Return & Refund Service does not include all original accessories, attachments or packaging, or any item is not in new or like-new condition, i.e., with cracks, dents, or scratches.
Page 61: 15-Day Replacement
Damage is caused to the product by uncontrollable external factors, including fire, floods, high winds, or lightning strikes. A product is not delivered to SIYI within seven (7) calendar days after Return & Refund Service confirmation is sent from SIYI.
Page 62 Legal proof-of-purchase, receipts, or invoices are not provided, or are reasonably believed to have been forged or tampered with. A product sent to SIYI for replacement does not include all original accessories, attachments, and packaging, or contains items damaged by user error.
Page 63: 1-Year Warranty Repair
Charges may apply for services not covered by this Limited Warranty. Please contact SIYI for information specific to your location. Please note that the warranty service is only available in the respective SIYI service regions where you purchased your SIYI product.
Page 64 Damage caused by reliability or compatibility issues when using unauthorized third- party parts. Damage caused by operating the unit with a low-charged or defective battery. Products or parts with an altered identification label or from which the identification label has been removed. 2021 SIYI Technology, All Rights Reserved...
