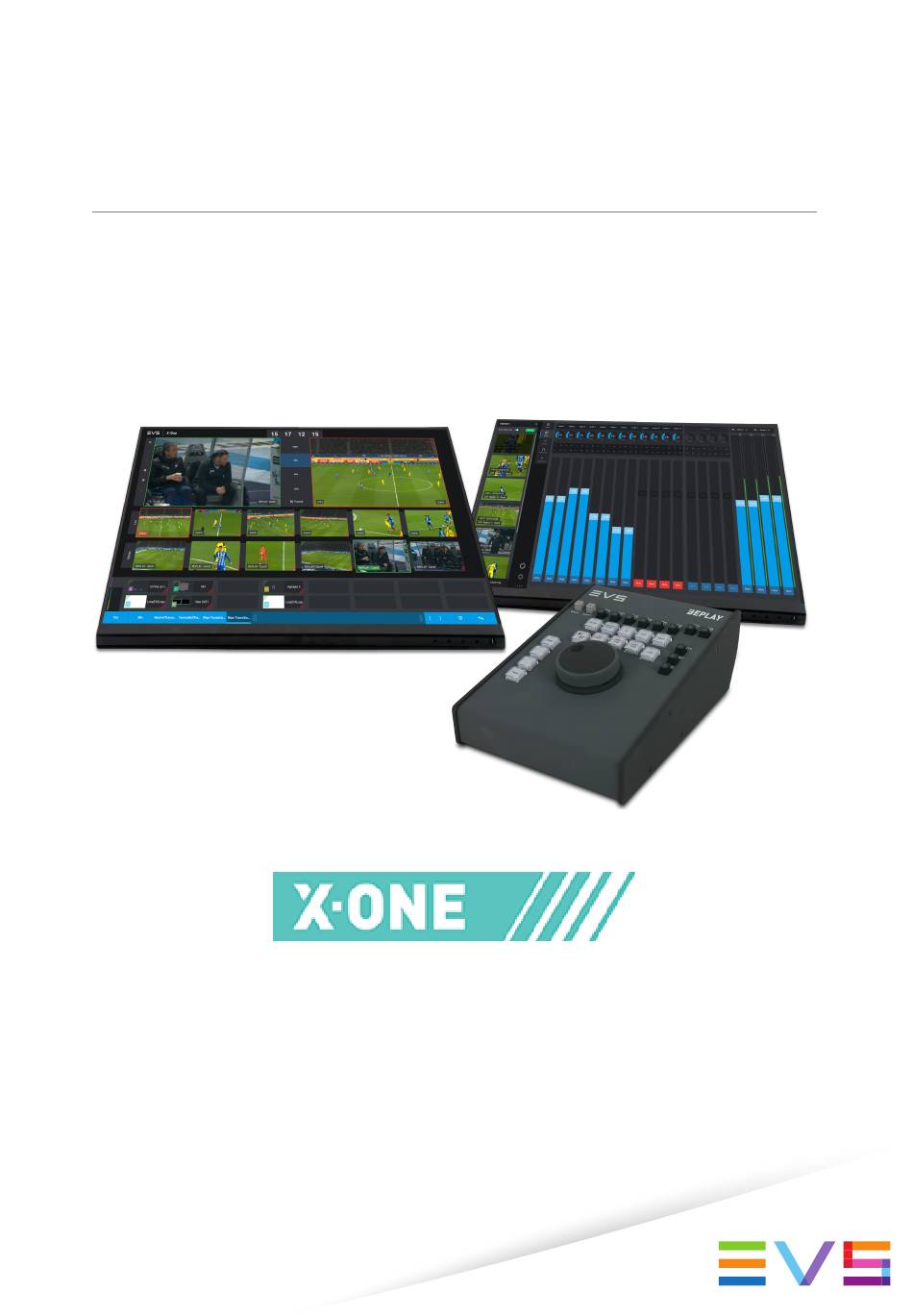

- Page 1 INSTALLATION AND CONFIGURATION MANUAL Version 1.7 - January 2021...
- Page 3 This manual and the information contained herein are the sole property of EVS Broadcast Equipment SA and/or its affiliates (EVS) and are provided “as is” without any expressed or implied warranties, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
- Page 4 EVS Broadcast Equipment SA 1.7.0.D - January 2021 User Manuals on EVS Website The latest version of the user manual, if any, and other user manuals on EVS products can be found at the EVS download center, on the following webpage: https://www.evs.com/en/download-area.
-
Page 5: Table Of Contents
INSTALLATION AND CONFIGURATION MANUAL X-One 1.7 Table of Contents TABLE OF CONTENTS WHAT'S NEW? 1. PRODUCT OVERVIEW 1.1. Description 1.2. Setup 2. REQUIREMENTS 2.1. Network Requirements 2.2. Other Technical Requirements 3. INSTALLATION 3.1. First Install 3.2. Upgrade 4. CABLING 4.1. Cabling the SDI Connectors 4.2. - Page 6 EVS Broadcast Equipment SA 1.7.0.D - January 2021 6.4. Metrics Page 6.4.1. SDI Tab 6.4.2. Sx Storage Tab 6.4.3. Sys. Stats. Tab 6.4.4. Temperature Tab 6.4.5. Ingests Tab 6.5. Docker Page 6.6. Services Page 6.7. Versions Page 6.8. Monitoring Video Inputs 6.9.
-
Page 7: What's New
INSTALLATION AND CONFIGURATION MANUAL X-One 1.7 What's New? In the Installation and Configuration Manual the icon has been added on the left margin to highlight information on updated features. The changes linked to new features in version 1.7 are listed below: Cable Management Bracket see section:"Securing the SDI Cables"... -
Page 9: Product Overview
EVS technology with a foundation of software-defined technology to deliver a smart, live production system for small and mid-sized events. The X-One system can ingest up to six camera feeds and allows you to import other media files. With its adaptable interface, X-One puts all of the capabilities of a control room in the hands of a single operator. -
Page 10: Requirements
Requirements 2.1. Network Requirements The X-One client workstation and the X-One server hardware need to be connected by a 1 Gbps link. This link can go through a switch or a direct connection. Type of Link The type of link to use depends on the distance between the client and server: •... -
Page 11: Installation
INSTALLATION AND CONFIGURATION MANUAL X-One 1.7 Installation 3.1. First Install Installation Requirements To be able to install X-One for the first time, the following requirements should be fulfilled: • X-One hardware (Server or Client , • 1 USB key 16 GB or higher (by preference USB 3.0), Preparing the USB Key... - Page 12 EVS Broadcast Equipment SA 1.7.0.D - January 2021 5. Select the X-One image file. The ISO file should have been shared with you: xone_1.7.iso . 6. Click Start. You are prompted to select the appropriate write mode. WARNING If this dialog box does not appear, then you should copy the .iso file on your local machine.
- Page 13 3. Press F11 to enter the Boot menu. 4. If you're asked to enter a password: evsdvb. 5. Select your USB key as boot device. 6. From the EVS Production menu, select the desired installation package and press ENTER: ◦ X-One Server 1.7 - CentOS 7.5 1804 or ◦...
- Page 14 After a few seconds, please see the Services Management tool: http://<ipxone>:9081 to check if everything is ok on the Health page (green or orange ) before starting to use X-One. • If the Services Management tool is not accessible, please reboot your machine and try again.
-
Page 15: Upgrade
INSTALLATION AND CONFIGURATION MANUAL X-One 1.7 3.2. Upgrade This procedure is only to be followed when you want to upgrade from an X-One 1.4.x version to 1.7. Preparing the USB Key 1. Connect the USB key to a Windows 7/10 machine. If the USB key is not empty, please format it. - Page 16 A disc icon labeled BOOT will appear on the desktop. 2. Double-click the icon and navigate to: install-evs-xone-server if you want to upgrade an X-One server; install-evs-xone-client if you want to upgrade an X-One client. 3. Right-click on a whitespace in the file explorer and select "open in terminal".
- Page 17 Reboot the machine and wait for a few minutes before starting the Client: • If you are upgrading an X-One server, please wait for 2-3 minutes and open the Services Management tool: http://127.0.0.1:9081 to check if everything is ok on the Health page (green or at least orange status for the resolv.conf check) before starting to use X-One.
-
Page 18: Cabling
The incoming feeds will be recorded, the outgoing feeds will be used for playout. A camera's SDI Out has to be connected with one of the X-One server's SDI connectors using a mini BNC cable. A maximum of 6 cameras can be connected. The connectors are numbered as indicated in the table below. -
Page 19: Connecting The Video Monitors
INSTALLATION AND CONFIGURATION MANUAL X-One 1.7 2. a ring bracket attached to the side of the rack or flight case; 3. the EVS cable management bracket mounted on the side of the server by means of two screws. Old EVS Bracket New EVS Bracket The cables should be secured using cable ties or Velcro®... -
Page 20: Connecting The Beplay Remote And External Controller
The VGA connection does not work. 4.4. Connecting the Beplay Remote and External Controller The Beplay remote and External Controller are connected via USB to the X-One server. The device is recognized as soon as it is plugged in. 4.5. DisplayPort Cable Warning If you directly connect a server with a monitor using a DisplayPort cable, you need to make sure that pin 20 (DP_PWR) of the cable is not wired and does not carry any power. - Page 21 INSTALLATION AND CONFIGURATION MANUAL X-One 1.7 PGM DB-25 PRV DB-25 Rec. connector outp. cmd. outp. connector outp. cmd. outp name pins mask name pins mask 24-25 0001 18-19 0040 21-22 0002 15-16 0080 18-19 0003 9-12 24-25 0100 15-16 0004...
- Page 22 EVS Broadcast Equipment SA 1.7.0.D - January 2021 Designation Description RELAY OUT 4 a Output 4 a V_OUT1 - 0 Volt RELAY OUT 3 b Output 3 b RELAY OUT 3 a Output 3 a V_OUT1 - 0 Volt RELAY OUT 2 b...
-
Page 23: Configuration
IP Address and Hostname Manually Changing the Server's Management IP Address To manually change the IP address of a X-One server using the GNOME control-center application, proceed as follows: 1. Click on the network connection icon in the system menu located in the top right-hand corner of the screen. - Page 24 EVS Broadcast Equipment SA 1.7.0.D - January 2021 3. Select the Network on the left-hand side. The Network settings tool appears in the right-hand menu. 4. Click the gear wheel icon of the connection you want to edit. NOTE • eno1 & eno2 represent the onboard ethernet connections.
-
Page 25: Arranging The Displays And Setting The Display Resolution
INSTALLATION AND CONFIGURATION MANUAL X-One 1.7 8. In order to apply the settings, the connection needs to be re-activated. Click the ON/OFF button to re-activate the connection. Manually Changing the Server's Hostname 1. Press the Super key on your keyboard. -
Page 26: Mapping The Touchscreens
Touchscreen Mapper The Touchscreen Mapper application is the tool that performs the mapping for you. It is automatically launched each time you start the X-One client. It also has a shortcut on the server desktop to manually start the application. -
Page 27: Managing The X-One Licenses
INSTALLATION AND CONFIGURATION MANUAL X-One 1.7 2. Tap your main screen to start the mapping. You are notified when your screens have been successfully mapped. The X-One client is launched. 5.4. Managing the X-One Licenses 5.4.1. License Manager Overview The License Manager allows you to request and activate the necessary X-One license keys. - Page 28 1. Type 3 (Generate a Request Key File) and press ENTER. A request license key file is generated on the desktop. The naming convention for the file is: hostname_ID_SystemID.xml. 2. Send the request key file to EVS Support. Importing a License Key To import a license key, proceed as follows: 1.
-
Page 29: Customizing The Beplay Remote Controls
INSTALLATION AND CONFIGURATION MANUAL X-One 1.7 1. Type 6 (Delete a Key) and press ENTER. A numbered list is displayed of all the installed keys. 2. Enter the full key string of the key you wish to delete and press ENTER. -
Page 30: Customizing The External Controller
NOTE To reset the buttons to their default assignments, you can delete the remoteConfig.json file. X-One will automatically regenerate it at the next Client application restart. WARNING If the format of the configuration file is not valid, a warning message will appear at the startup of the Client application: 'Invalid format for Beplay configuration file. - Page 31 INSTALLATION AND CONFIGURATION MANUAL X-One 1.7 The first part lists the names of the available buttons and the actions that can be assigned to each button. The available buttons are: Pad 1 Pad 11 Pad 2 Pad 12 Pad 3...
- Page 32 NOTE To reset the buttons to their default assignments, you can delete the remoteConfig.json file. X-One will automatically regenerate it at the next Client application restart. WARNING If the format of the configuration file is not valid, a warning message will appear at the startup of the Client application: 'Invalid format for Beplay configuration file.
-
Page 33: Monitoring And Support
The Services Management tool is a web tool which allows a system administrator or EVS support person to monitor for a particular X-One server in more detail the health and status of its micro-services, to restart them in case of a problem and to export their logs. It also allows to check in more detail certain system metrics. -
Page 34: Dashboard Page
1.7.0.D - January 2021 6.2. Dashboard Page The Dashboard page allows you to view at a glance the status of the different X-One micro-services and backend components. To get the latest status, click the refresh button. The backend components can have one of the following health statuses: •... -
Page 35: Health Page
• Thinpool free space: It checks the space available for the Docker backend storage. If this check is not passing, please call EVS support as we might need to either free- up some space or allocate more disk space. •... - Page 36 EVS Broadcast Equipment SA 1.7.0.D - January 2021 WARNING After an installation, all checks on the Health page will be in orange for a while. This is because the data RAID must be built for the first time. 6. Monitoring and Support...
-
Page 37: Metrics Page
INSTALLATION AND CONFIGURATION MANUAL X-One 1.7 6.4. Metrics Page The Metrics page displays several statistics about the health and performance of the backend and server hardware components. 6.4.1. SDI Tab The SDI tab allows you to view the incoming SDI feeds, check their technical details and monitor their status. - Page 38 Bad Signal: The signal is not in the configured format ◦ Unknown: There is no stream. • Running: Status of the evs-sxe-sdi service. • SyncWithRef: Indicates if the incoming video signal is genlocked. Signal The Signal section lists the actual characteristics of the input signal monitored by the SDI adapter card.
-
Page 39: Sx Storage Tab
INSTALLATION AND CONFIGURATION MANUAL X-One 1.7 6.4.2. Sx Storage Tab The Sx Storage tab displays information about the storage of the X-ONE server. For example, total amount vs used storage, number of storage partitions, number of tracks, etc. 6.4.3. Sys. Stats. Tab The Sys. - Page 40 EVS Broadcast Equipment SA 1.7.0.D - January 2021 Run Queues This area contains run queue and load average data. Parameter Description Load average System load average for the last minute, past 5 minutes, past 15 minutes. Run queue size The number of kernel threads in memory that are waiting for a CPU to run.
- Page 41 INSTALLATION AND CONFIGURATION MANUAL X-One 1.7 Disks This area displays the activities by the individual block devices. Parameter Description Device Device (or partition) name as listed in the /dev directory. Avg queue len Average queue length of the requests that were issued to the device.
- Page 42 Speed of the network interface. state Status of the network interface. IP address of the network interface. Either manually added or automatically assigned by DHCP. IP address of the EVS DNS server. gateway IP address of the router used to access external networks. dhcp Indicates if the IP address of the network interface...
- Page 43 INSTALLATION AND CONFIGURATION MANUAL X-One 1.7 Memory This area displays memory statistics. Parameter Description Buffers Memory used as buffers by the kernel in kilobytes. Cached Memory used to cache data by the kernel in kilobytes. Commit Memory in kilobytes needed for current workload.
-
Page 44: Temperature Tab
EVS Broadcast Equipment SA 1.7.0.D - January 2021 6.4.4. Temperature Tab The temperature page displays real-time information about the temperature of the CPUs and CPU cores of the server. 6. Monitoring and Support... -
Page 45: Ingests Tab
INSTALLATION AND CONFIGURATION MANUAL X-One 1.7 6.4.5. Ingests Tab The Ingests tab displays more detailed information about the ongoing ingests. Ingests List The area at the top of the Ingests tab lists the ingests currently being performed by the server. The Refresh button allows you to update this list. - Page 46 EVS Broadcast Equipment SA 1.7.0.D - January 2021 Ingest Details The Ingest Details area displays more detailed information about a particular ingest. For example, the target formats being generated. Source The Source pane allows you to identify the type of connection to the input.
-
Page 47: Docker Page
INSTALLATION AND CONFIGURATION MANUAL X-One 1.7 6.5. Docker Page The Docker page allows you to check the status of the microservices running in a Docker container, to download the logs of all microservices, or only a selection, and to restart microservices that are down. -
Page 48: Services Page
Services Page The Services page allows you to check the status of the native microservices running on X-One, and to restart them in case they are down. Downloading Log Files You can download the log files of a particular service, or of all services: •... -
Page 49: Versions Page
INSTALLATION AND CONFIGURATION MANUAL X-One 1.7 6.7. Versions Page The Versions page allows you to check the version of the native and Docker services that are currently running on your server (= Active Version) and compare them with the version that should actually be installed (= Version in content). -
Page 50: Monitoring Video Inputs
-f deltacast.log Using the Deltacast dCARE Tool To check the status of the incoming video signals of a particular X-One server, you can make use of the DELTACAST dCARE tool. To do this, proceed as follows: 1. Open a Terminal window on the X-One server. -
Page 51: Cleaning The X-Oneclient
6.9. Cleaning the X-OneClient Clean Script The Clean script allows you to re-initialize the X-One client. Note that the following settings will be reverted to the factory settings: Shotbox preferences, NDI and tally configuration, custom CGs. Double-click the Clean shortcut to start the Clean script. -
Page 52: Consulting System Log Files And Crash Dumps
Crash Dump Folder Crash dumps are available in the following directory: /var/crash/. Exporting System Log Files To generate and export the latest X-One system log files, proceed as follows: 1. Double-click or double-tap the GetLogs icon on your X-One client workstation desktop. - Page 54 Belgium www.evs.com/contact EVS Broadcast Equipment is continuously adapting and improving its products in accordance with the ever changing requirements of the Broadcast Industry. The data contained herein is therefore subject to change without prior notice. Companies and product names are To learn more about EVS go to www.evs.com...
