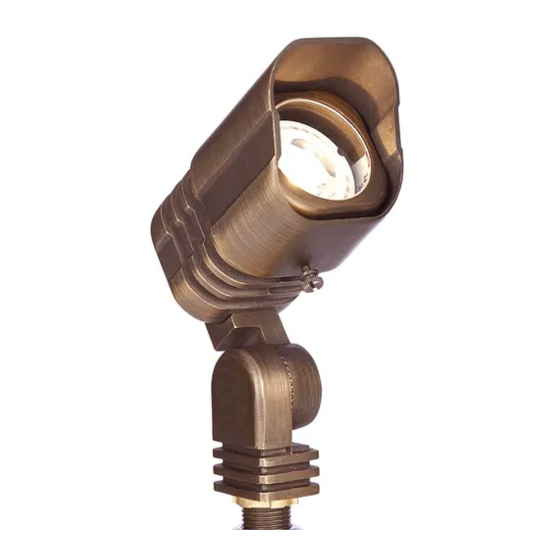

- Page 1 INSTALLATION & MAINTENANCE GUIDE Low Voltage Landscape Lighting ® EscherPro MR16 Spotlight ® AAL-1019-4-B-BZ Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) w w w. a m p l i g h t i n g . c o m...
- Page 2 INSTALLATION & MAINTENANCE GUIDE EscherPro MR16 Spotlight ® AAL-1019-4-X-XX Important Safety Instructions: Read Before Installation This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 Package Contents A. (1) Fixture B. (1) Stake Product Dimensions Install Stake Determine the desired location Board for mounting the stake mount. Hammer the stake into the ground until flange of stake is flush to grade. To avoid damage to the stake, place a board on top of the stake while Stake harmmering.
- Page 4 INSTALLATION & MAINTENANCE GUIDE EscherPro MR16 Spotlight ® AAL-1019-4-X-XX Install Fixture to Stake Clear away an area in the ground at the wireway slot on top of the stake. Lay the fixture pigtail into the wireway slot and attach the fixture onto the stake.
- Page 5 INSTALLATION & MAINTENANCE GUIDE EscherPro MR16 Spotlight ® AAL-1019-4-X-XX Remove Glare Guard Loosen the set screw and remove the glare guard from the fixture. Glare Guard REMOVE Set Screw Fixture Remove Lens Rotate the lens to remove it ROTATE from the fixture. REMOVE Lens Fixture...
- Page 6 INSTALLATION & MAINTENANCE GUIDE EscherPro MR16 Spotlight ® AAL-1019-4-X-XX Install MR16 Bulb Insert MR16 bulb with the correct Socket wattage and type marked on the fixture label. CAUTION: Do not exceed MR16 Bulb maximum wattage marked on luminaire label. Install MR16 Bulb ROTATE Place the lens back onto the fixture and rotate it until it is...
- Page 7 Install Glare Guard Install the glare guard back Glare Guard onto the fixture and secure with previously removed set screw. Set Screw Fixture Adjust Lamp Direction Using the provided Allen wrench, loosen the knuckle and adjust the fixture to your desired direction. Once your desired direction is achieved, tighten the knuckle Fixture...
- Page 8 Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) Specifications and product details subject to change without notice. © Copyright 2019, AMP Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@amplighting.com • 813.978.3900 w w w. a m p l i g h t i n g . c o m IS-AAL-1019-4-B-BZ-ver1.pdf...
