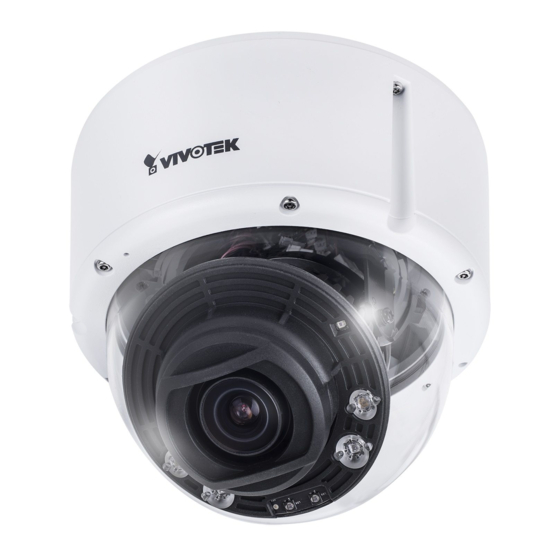

  • Page 1 Driven by OSSA FD9392-EHTV-O Network Camera User ’s Manual Qualcomm QCS603 SoC with Built-in AI Engine • Video Processing and Machine Learning • Supports VCA Solutions via Installation of S&ST APPs • Rev. 1.0...

  • Page 2: Table Of Contents

    VIVOTEK Table of Contents Revision History ...............................4 Read Before Use ..............................4 Symbols and Statements in this Document ......................4 Package Contents ............................5 Physical Description ............................6 Hardware Installation ............................7 Configuration ..............................16 Preview ................................24 Peripheral ...............................24 Zoom / Focus ..............................25 Device Info ..............................26 Privacy Mask ..............................27...
  • Page 3 VIVOTEK Overview • Powered by Qualcomm QCS603 SoC with a built-in AI Engine • Powerful Computing for Video Processing and Machine Learning • Driven by OSSA, running on S&ST OS • Supports a variety of VCA solutions through S&ST APPs •...

  • Page 4: Revision History

    VIVOTEK Revision History ■ Rev. 1.0: Initial release. Read Before Use The use of surveillance devices may be prohibited by law in your country. The Network Camera is not only a high-performance web-ready camera but can also be part of a flexible surveillance system.

  • Page 5: Package Contents

    VIVOTEK Package Contents ■ FD9392-EHTV-O ■ T10 stardriver, desiccant bag, screws ■ Waterproof Ethernet and I/O wires cable housing ■ Quick Installation Guide & alignment sticker ■ Side-routing bracket. WARNING: 1. IR lights emit from ths product. 2. Use appropriate shielding or eye protection.

  • Page 6: Physical Description

    VIVOTEK Physical Description Inner View IR LEDs Motorized Terminal block lens RJ45 Ethernet port MicroSD/SDHC/SDXC Reset I/O routing inlet Card Slot button Ethernet routing inlet Outer Look Not used Not used Microphone 6 - User's Manual...

  • Page 7: Hardware Installation

    VIVOTEK NOTE: Some of the suffix syntax used in model naming are listed below: w/ heater for extreme weather Focal length w/ number w/ Remote focus lens w/ PoE repeater w/ High Dynamic Range functionality IMPORTANT: The camera comes with an embedded heater and requires an 802.3at PoE switch.
  • Page 8 VIVOTEK 2. Use the included T10 stardriver to remove the dome cover. 5~6.3mm DI/DO: 1.8~2.1mm 3. Loosen and remove the waterproof connectors. IMPORTANT: You should install the waterproof cable gland to the I/O routing inlet whether you connect the I/O and power wires or not. If you leave it open, water or moisture can destroy the camera.
  • Page 9 VIVOTEK 4. Insert an Ethernet cable through the cable gland, and the rubber seal. 5. Insert the Ethernet cable through the components of the waterproof connector, e.g., the rubber seal. Leave 15cm of cable length inside, counting from the edge of the aluminum hex nut.
  • Page 10 VIVOTEK 6. Use a crescent wrench to tighten the components of the waterproof connector. Connect the cable to the RJ45 connector. 7. If preferred, pass power or I/O wires through the rubber seal and waterproof components of another connector. Install and tighten the components.
  • Page 11 VIVOTEK 8. If applied, connect DI/DO wires, 12/24V DC power, or audio wires to the terminal block. Name AC 24V AC 24V DC 12V IN- DC 12V IN+ DI- (GND) DI+_0 DO-_0 10 DO+ (5V) 11 MIC-IN_N (GND) 12 MIC-IN_P...
  • Page 12 VIVOTEK 1. The DO+ pin provides a 12V output, and the max. load is 50mA. 2. The max. voltage for DO- pins is 30VDC (External power). In order to control AC devices, the following diagram can be taken into consideration.
  • Page 13 VIVOTEK Wet contact with external DC power source to supply a relay. Switch DC 0V External DC power External AC power with Protected Earth Relay External Device Dry contact and using camera’s DO+ to supply a relay. Switch External AC power...
  • Page 14 VIVOTEK 9. You can either route cables through a routing hole on the ceiling or wall, or you can route cables through the side of the camera. You can use the side-routing bracket to install a 3/4" conduit. Please note that the conduit hex nut should not be larger than 35mm.
  • Page 15 VIVOTEK 10. Attach the included alignment sticker to a preferred location. Drill holes for mounting screws and if preferred, drill one or two routing holes. When fastening the screws, do not completely tighten the screws. Pass cables through the routing holes, and then mount the camera by passing the screw heads through the keyhole slots.

  • Page 16: Configuration

    VIVOTEK Configuration 1. Download the Device Management Tool. The tool can be requested here: https://devices.securityandsafetythings.com/tooldownload Make sure DHCP service is available in your local network. 2. Use the Device Management Tool to locate your device. 16 - User's Manual...
  • Page 17 VIVOTEK 3. You can click Cloud Login to download S&ST apps or visit: https://store.securityandsafetythings.com/shop/catalog/c/main 4. Enter URL: https://<ip_address>:8443/ Enter admin/admin as the default credential. Since the connection is using a self-signed certificate, your connection will not be considered as a secure connection. Click Advanced to proceed.
  • Page 18 VIVOTEK Click Proceed to xxx.xxx.xxx.xxx (Unsafe) to open the web console. Note the IP addresses below are for reference only. Enter admin/admin as the default credential. 18 - User's Manual...
  • Page 19 VIVOTEK You will be requested to create a new password for security concern. Enter a combination of alphabetic, numeric, and special characters that is strong enough for protection. The new password must comprise of at least 10 characters, containing uppercase, lowercase, digits or special characters.
  • Page 20 VIVOTEK 13. With a live view displayed on your laptop, adjust the pan and tilt angles to obtain an optimal image. Check the live view to ensure the shooting direction and image coverage. 353° 0°~ 80° 14. Carefully tighten the retention screws on the side of the camera lens.
  • Page 21 VIVOTEK 15. Replace the desiccant bag on the inside the camera dome cover. 16. Align and install the dome cover. User's Manual - 21...
  • Page 22 VIVOTEK Note that you should not remove the 6 anti-tamper screws on the dome cover. 22 - User's Manual...
  • Page 23 VIVOTEK LED Definitions Item LED status Description Steady Powered and system booting, or network failed LED off Power off Green LED off Network is disconnected Steady Green LED blinks every 1 Connected to network sec. Green LED blinks every 1 sec. and Upgrading firmware blinks consecutively every 0.15 sec.

  • Page 24: Preview

    VIVOTEK Preview This page displays the camera stream preview window. You can select which virtual camera's stream to preview and at which refresh rate. Peripheral On this page you can see the current connection statuses of digital inputs. If your digitald inputs are connected to sensor devices, its statuses will be automatically detected as being pulled high or pulled low.

  • Page 25: Zoom / Focus

    VIVOTEK The Day and Night setting is also available on this page. You can change the IR cut filter and the light sensor sensitivity settings. Normally the default setting suffices ordinary uses. The IR cut filter is turned on or off depending on the lighting level detected by the onboard light sensor.

  • Page 26: Device Info

    VIVOTEK Device Info Important information about this device is displayed on this page: including Device ID, OS version, AOSP API, SDK addon, firmware version, etc. The Device ID is a unique ID for each camera and will be displayed in the Device Management Portal.

  • Page 27: Privacy Mask

    VIVOTEK Privacy Mask Click and drag on the screen to block out sensitive areas in your field of view. The size and the orientation will display on screen. Use the Intensity slide bar to determine how much image within the privacy mask is blurred. Currently 1 privacy mask is supported.

  • Page 28: Virtual Camera

    VIVOTEK Virtual Camera Allows the creation of additional sub-stream(s) which can cover a certain zone of interest in the camera's field of view. The sub-streams are used for video analytics on apps. Video settings On this page some additional video stream settings can be set like Exposure, Focus and White Balance, etc.

  • Page 29: Stream Configuration

    VIVOTEK Stream Configuration On this page, there are four pre-configured video streams which can be additionally modified with regards to encoding, size, bitrate and I-frame interval. Streams are defined as Full High Definition and Ultra High Definition streams. The bit rate is represented in bits. Streams are defined as Full High Definition and Ultra High Definition streams.

  • Page 30: Device Health

    VIVOTEK Device Health This page displays various device health information: CPU/Memory/Storage usage, Connectivity, Temperature and App status. User Management On this page, you can add/remove users and set user's rights and permissions. 30 - User's Manual...

  • Page 31: Network

    VIVOTEK Network By default, the device has the network setup to receive the IP address via DHCP. On this page you can change different network parameters, disable the DHCP and set a specific Date & Time This page allows the user to configure the current date/time on the device, synchronize with computer time and also to enable network time synchronization via an NTP server.

  • Page 32: Firmware

    VIVOTEK Firmware On this page you can perform a Firmware (OS version) OTA upgrade. 32 - User's Manual...

  • Page 33: Applications - Overview

    VIVOTEK Applications - Overview On this page, users can see all the installed applications, their status, version and they can also start/stop or uninstall an application using the vertical 3-dot menu: Data Magnet and VAST2 To enable the display of video analytics from apps on the VAST2, click on the App interface and configurations.
  • Page 34 VIVOTEK Enter the following to enable the connection through Data Magnet: 1. Your VAST2 server IP. 2. Data Magnet port: usually 3443. 3. Data Source Name: Note that this name must be identical to that on the VAST2 Data Magnet setting page.
  • Page 35 VIVOTEK 7. Select Third party data source. 8. Enter the Data Source Name, port (usually 3443), select the associated camera, and click Add. User's Manual - 35...
  • Page 36 VIVOTEK 9. You can then right-click on a VAST2 view cell to display the Data magnet data. The analytics detection results can display along with the live video. 36 - User's Manual...

  • Page 37: Applications - Cloud Connection

    VIVOTEK Applications - Cloud Connection You can connect your device to Security and Safety Things cloud where you can install and manage the applications, buy additional licenses and monitor your camera's health. Also, if crash reporting is enabled, all the information about application crashes is sent to the cloud where it can be easily retrieved.
  • Page 38 VIVOTEK In order to be able to install applications through the Device Management Portal, the camera has to be connected to the Security and Safety Things cloud. That process is called claiming. The prerequisites for connecting the camera to the cloud are: •...
  • Page 39 VIVOTEK Click CONTINUE. On the Device Management Portal page, you can enter some additional information regarding the device: Click the SAVE button in order to save the changes • Camera name and your camera will appear in the list of cameras on •...
  • Page 40 VIVOTEK On the Device Management Portal page, you can see all connected devices/cameras. Click to select your device. On the right pane, click INSTALL APP. 40 - User's Manual...
  • Page 41 VIVOTEK Scroll to select an app. Select and click INSTALL. User's Manual - 41...

  • Page 42: Applications - Legal

    VIVOTEK Applications - Legal This page provides legal information for the OS. 42 - User's Manual...

  • Page 43: Technology License Notice

    VIVOTEK Technology License Notice AMR-NB Standard THIS PRODUCT IS LICENSED UNDER THE AMR-NB STANDARD PATENT LICENSE AGREEMENT. WITH RESPECT TO THE USE OF THIS PRODUCT, THE FOLLOWING LICENSORS’ PATENTS MAY APPLY: TELEFONAKIEBOLAGET ERICSSON AB: US PAT. 6192335; 6275798; 6029125; 6424938; 6058359. NOKIA CORPORATION: US PAT.

  • Page 44: Electromagnetic Compatibility (Emc)

    取扱説明書に従って正しい取り扱いをして下さい Liability VIVOTEK Inc. cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and manuals without prior notice. VIVOTEK Inc. makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for any particular purpose.
